Запчасти Case IH ATX400 (6.230.1) - PACKER GANG ASSY 7.2" SPACING, 7 RUBBER WHEELS Packer Gang Assemblies and Frames

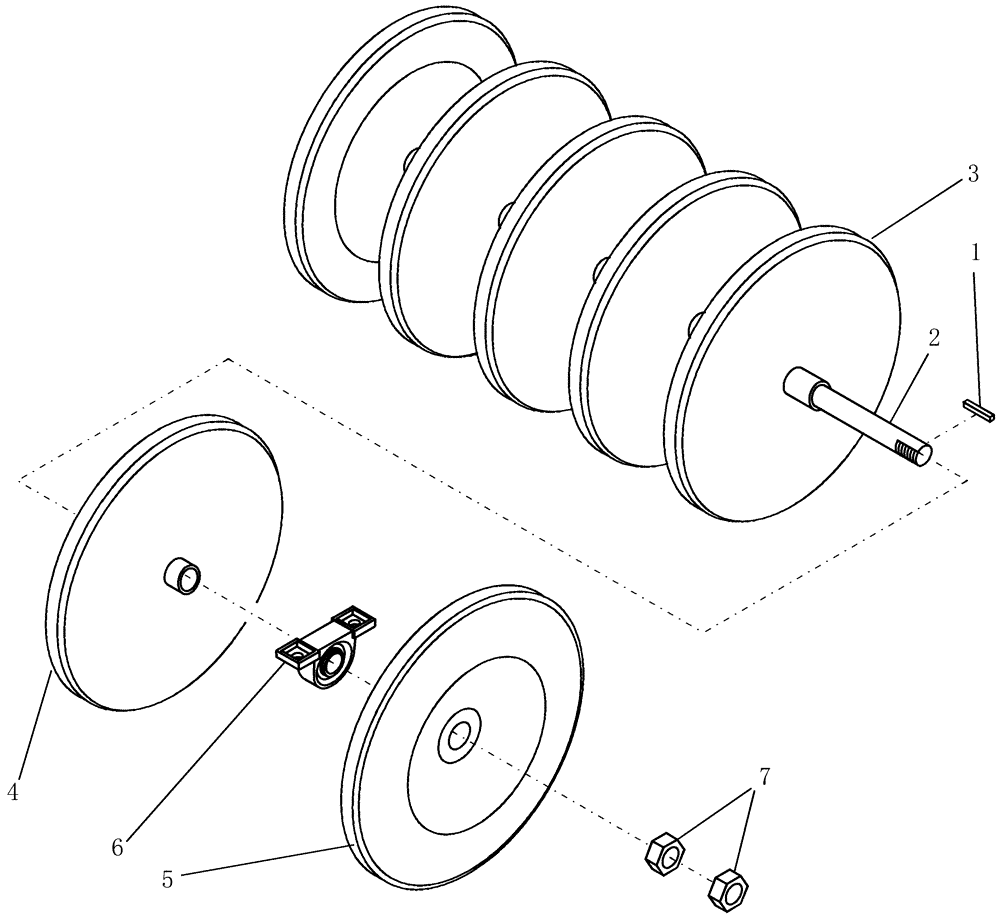

Схема запчастей Case IH ATX400 - (6.230.1) - PACKER GANG ASSY 7.2" SPACING, 7 RUBBER WHEELS Packer Gang Assemblies and Frames
7
2
3
5
6
4
1

Артикул

Название

Примечание

Количество

0

DR-978A

WHEEL ASSY

gang 7 3/16" spacing 7" x 3" rubber

1шт.

1

DR-575

KEY

3/8" sq x 2 1/4" long

2шт.

2

DR-577

SHAFT

gang 47 1/8" long

1шт.

3

DR-952A

WHEEL

press 3" rubber standard ( \\ ) spool

3шт.

4

DR-953A

WHEEL,508mm OD x 76.2mm W

press 3" rubber bearing ( \! ) spool

2шт.

5

DR-954A

WHEEL

press 3" rubber end ( !! ) spool

2шт.

6

87414

LUBE NIPPLE,1/4" - 28

2шт.

6

87502149

BEARING HOUSING

pillow block

2шт.

6

6613

BALL BEARING,38.1mm ID x 80mm OD x 24mm W

1 1/2" bore

2шт.

6

6667

SET SCREW

1/4"-28 x 1/4" hl hex skt blk cp

2шт.

6

DR-004K

BEARING

kit packer - heavy duty triple lip seal

1шт.

Includes two bearings and four machine bushings to do one gang frame assembly

1шт.

7

6368

JAM NUT,1-1/2"-12, Cl 5

jam 1 1/2"-12

4шт.

100

7215

TYRE/TIRE

press wheel - 3" x 22"

7шт.

Выбрано товаров: 14
