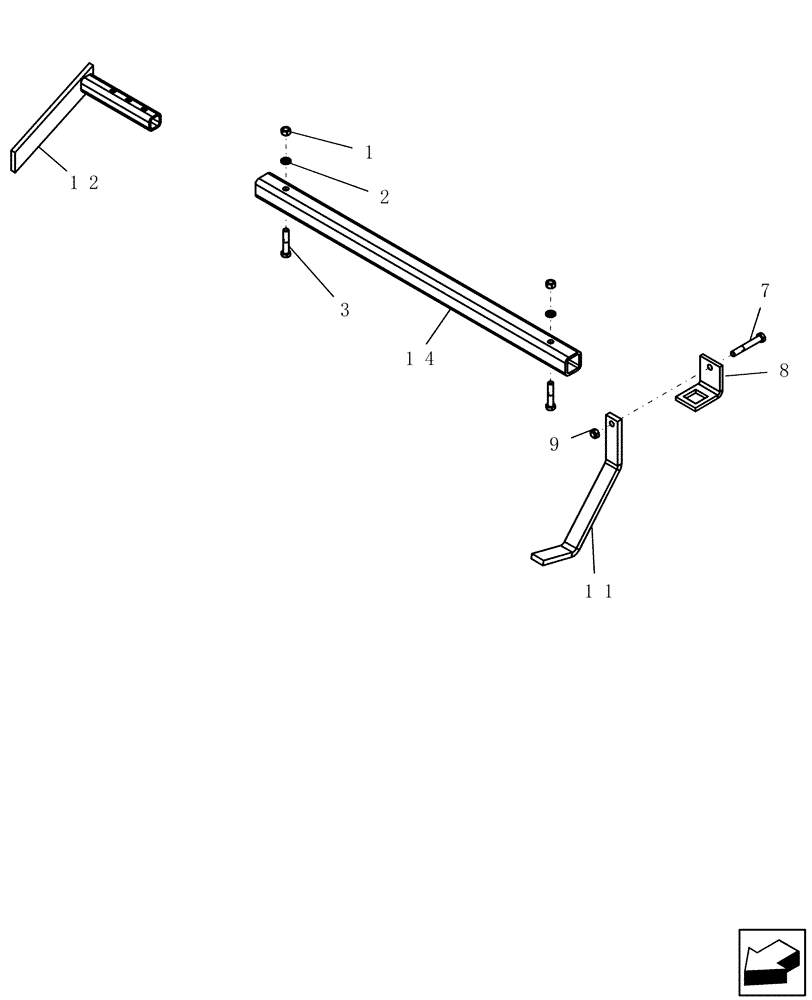

Запчасти Case IH ATX400 (6.100.1) - PRESS WHEEL STRIPPERS Packer Gang Assemblies and Frames

1

280431

NUT,1/2"-13, G5

2шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

3

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

2шт.

7

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

1шт.

8

DR-472

CLAMP

presswheel stripper

1шт.

9

86992215

LOCK NUT,1/2"-13, GC

1шт.

11

87589721

TOOTH

press wheel stripper (adjustable gang)

1шт.

12

DS-279

TOOTH

stripper, end

1шт.

14

87450340

TUBE,1000 mm L x 50.8 mm W x 50.8 mm H

rear gang 39 25/64"

1шт.

14

87500129

TUBE,1090 mm L

rear gang 42 57/64"

1шт.

14

87501083

TUBE,1180 mm L

rear gang 46 1/2"

1шт.

14

87501085

TUBE,1335 mm L

rear gang 52 19/32"

1шт.

14

87501087

TUBE,1600 mm L

rear gang 63"

1шт.

14

87501089

TUBE,1740 mm L

rear gang 68 1/2"

1шт.
