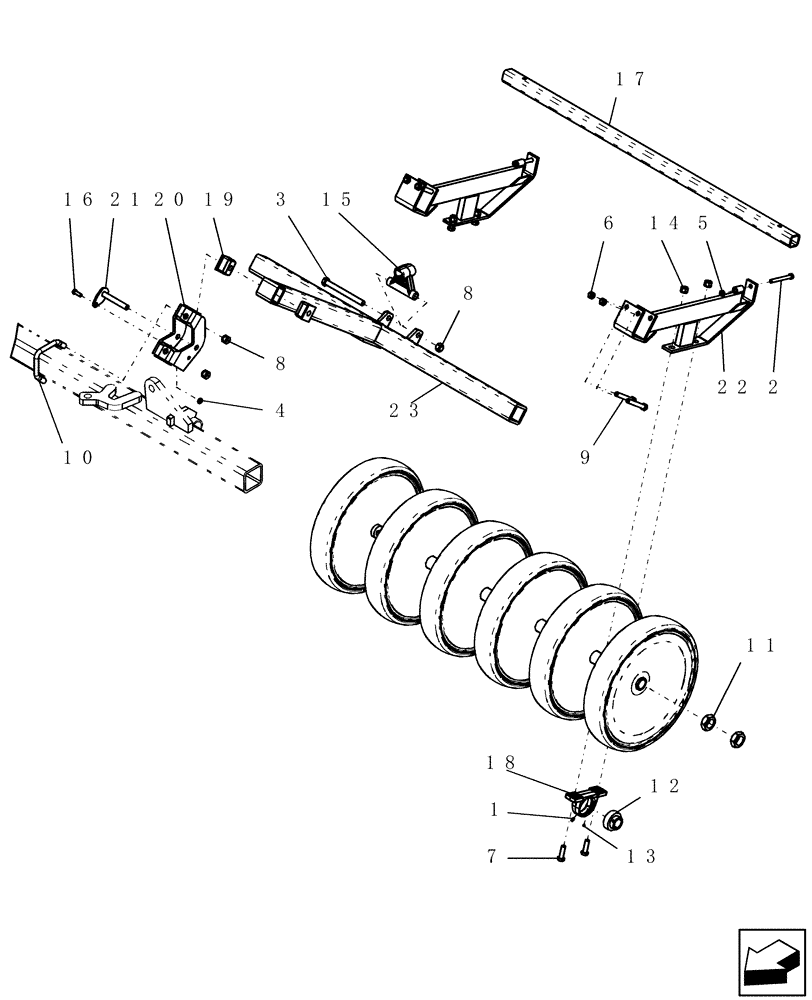

Запчасти Case IH ATX400 (6.090.1) - GANG FRAME ASSEMBLY Packer Gang Assemblies and Frames
№
Артикул
Название
Примечание
Количество
1
87414
LUBE NIPPLE,1/4" - 28
4шт.
2
87996
BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5
2шт.
3
88945
BOLT,Hex, 3/4" - 10 x 8", Gr 5
1шт.
4
280980
NUT,7/16"-14, GC
1шт.
5
86992215
LOCK NUT,1/2"-13, GC
2шт.
6
85700693
NUT,5/8" - 11, Gr C
4шт.
7
86505999
BOLT,Hex, 5/8" - 11 x 2", Gr 5
4шт.
8
280375
NUT,3/4"-10, GC
3шт.
9
280183
BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5
4шт.
10
5181
BOLT,V, 3/4" - 10 x 4", Gr 8
v 3/4"-10 x 4" GR8
1шт.
11
6368
JAM NUT,1-1/2"-12, Cl 5
jam 1 1/2"-12 G5
4шт.
12
6613
BALL BEARING,38.1mm ID x 80mm OD x 24mm W
1 1/2" bore
2шт.
13
6667
SET SCREW
1/4"-28 x 1/4" hl hex skt blk cp
2шт.
14
6839
FLANGE NUT
5/8"-11 serrated flange
4шт.
15
87506236
CASTING
packer knuckle
1шт.
16
86505834
BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8, Full Thd
1шт.
17
87450340
TUBE,1000 mm L x 50.8 mm W x 50.8 mm H
rear gang 39 25/64"
1шт.
17
87500129
TUBE,1090 mm L
rear gang 42 57/64"
1шт.
17
87501083
TUBE,1180 mm L
rear gang 46 1/2"
1шт.
17
87501085
TUBE,1335 mm L
rear gang 52 19/32"
1шт.
17
87501087
TUBE,1600 mm L
rear gang 63"
1шт.
17
87501089
TUBE,1740 mm L
rear gang 68 1/2"
1шт.
18
87502149
BEARING HOUSING
pillow block
2шт.
18
DR-004K
BEARING
kit packer - heavy duty triple lip seal
1шт.
Includes two bearings and four machine bushings to do one gang frame assembly
1шт.
19
CA-118
TUBE
flex, 3/4" id x 3" sq x 3 3/4" long
2шт.
20
DR-528
DRAWBAR
press wheel gang
1шт.
21
DR-529
PIN,19.05mm OD x 146.05mm L
gang frame draw - 3/4" x 5 1/4" usable
1шт.
22
DS-288
FRAME
adjustable packer leg
2шт.
23
DS-281
FRAME
gang t-bar
1шт.
23
DS-282
FRAME
gang t-bar
1шт.
23
DS-284
FRAME
gang t-bar
1шт.
23
DS-285
FRAME
gang t-bar
1шт.
23
DS-286
FRAME
gang t-bar
1шт.
23
DS-287
FRAME
gang t-bar
1шт.
23
87500503
FRAME
t-bar left
1шт.
23
87500505
FRAME
t-bar right
1шт.
23
87500131
FRAME
t-bar left
1шт.
23
87500134
FRAME
t-bar right
1шт.
Выбрано товаров: 39
