Запчасти Case IH ATX400 (6.080.1) - GANG FRAME ADJUSTOR ASSEMBLY - WINGS Packer Gang Assemblies and Frames

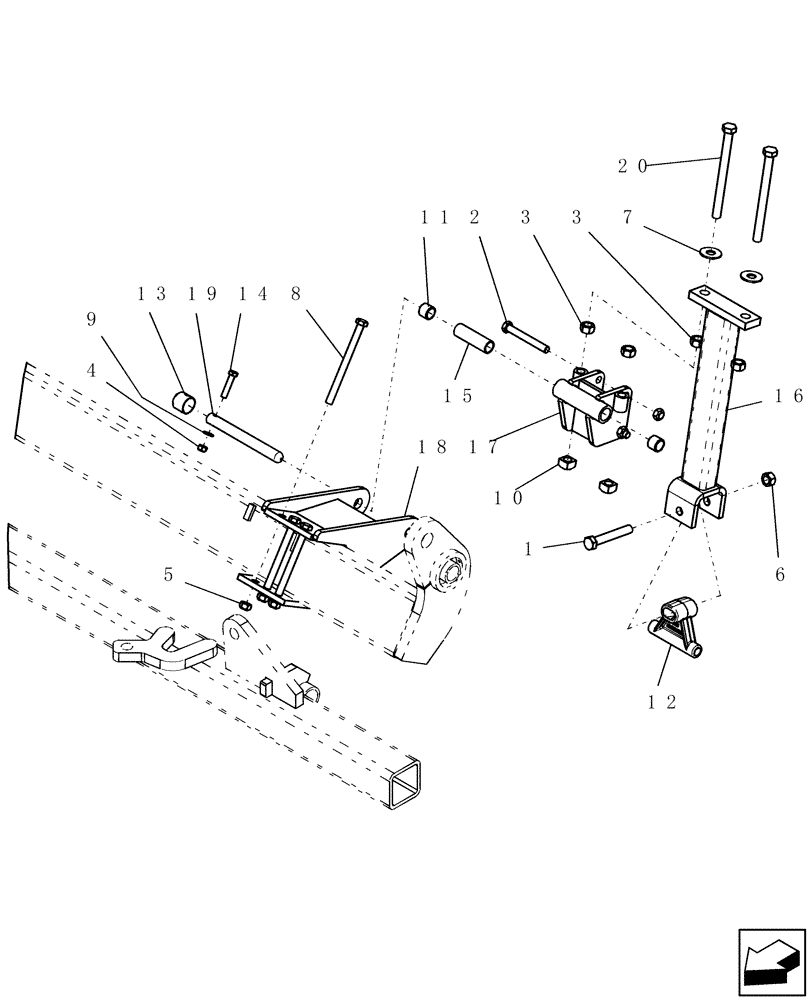

Схема запчастей Case IH ATX400 - (6.080.1) - GANG FRAME ADJUSTOR ASSEMBLY - WINGS Packer Gang Assemblies and Frames
11
4
15
10
7
19
8
1
14
3
17
12
18
13
3
9
16
2
5
6
20

Артикул

Название

Примечание

Количество

1

88421

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

2

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

2шт.

3

280954

NUT,3/4"-10, G5

4шт.

4

86992215

LOCK NUT,1/2"-13, GC

1шт.

5

85700693

NUT,5/8" - 11, Gr C

5шт.

6

280375

NUT,3/4"-10, GC

1шт.

7

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

8

280743

BOLT,Hex, 5/8" - 11 x 8", Gr 5

3шт.

9

5868

WASHER,0.5" ID x 1" OD x 0.06" Thk

1/2" id 1" 16ga

1шт.

10

5878

SQUARE NUT

square 3/4"

2шт.

11

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

2шт.

12

87506236

CASTING

packer knuckle

1шт.

13

87418616

CAP

vinyl 38 x 35 lg black

1шт.

14

50032

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

1шт.

15

DR-709

SPACER

1 1/4" od x 3/32" thick x 4" long

1шт.

16

DR-723

STEM

single gang adjuster

1шт.

17

DR-563A

FRAME

gang adjuster assembly

1шт.

Includes two 6635 and DR-709

1шт.

18

87500002

JOURNAL

gang

1шт.

19

87420549

PIN

1" x 8"

1шт.

20

87310714

BOLT

3/4"-10 x 9" G5, Full thread

2шт.

Выбрано товаров: 21
