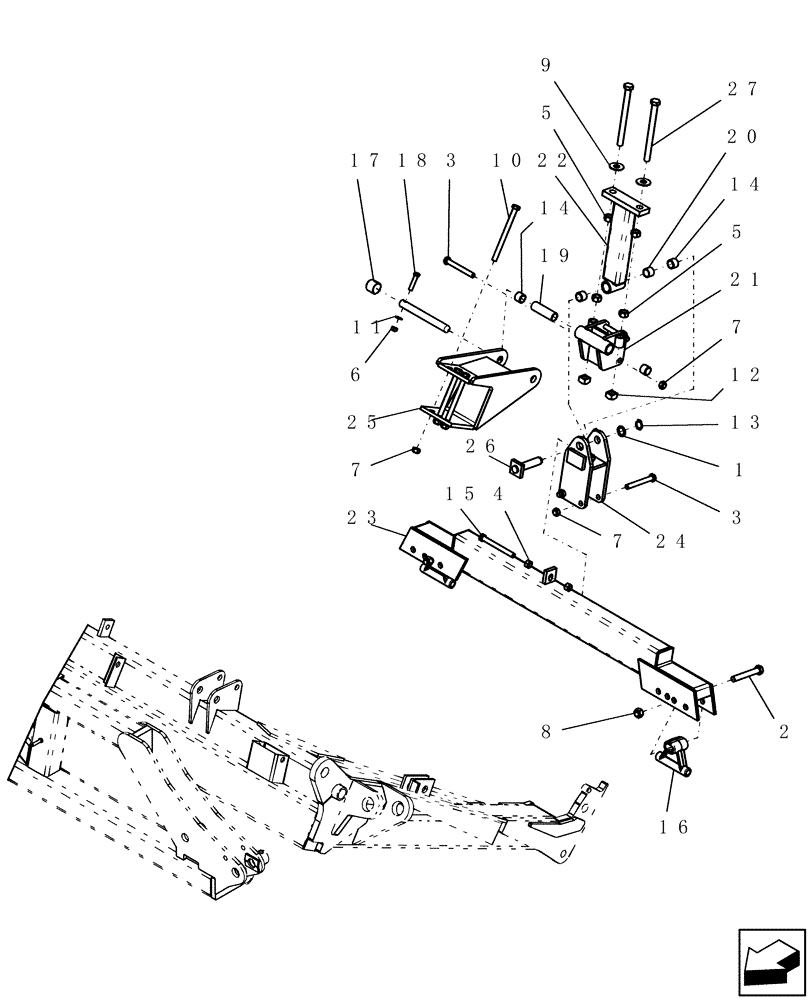

Запчасти Case IH ATX400 (6.070.1) - GANG FRAME ADJUSTOR ASSEMBLY - CENTER Packer Gang Assemblies and Frames

1

87325444

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1 1/64" id 1 1/2" 14ga

1шт.

2

88421

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

3

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

4шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

5

280954

NUT,3/4"-10, G5

4шт.

6

86992215

LOCK NUT,1/2"-13, GC

1шт.

7

85700693

NUT,5/8" - 11, Gr C

7шт.

8

280375

NUT,3/4"-10, GC

2шт.

9

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

10

280743

BOLT,Hex, 5/8" - 11 x 8", Gr 5

3шт.

11

5868

WASHER,0.5" ID x 1" OD x 0.06" Thk

1/2" id 1" 16ga

1шт.

12

5878

SQUARE NUT

square 3/4"

2шт.

13

87019495

SNAP RING,#98, Ext

1шт.

14

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

4шт.

15

7061

BOLT,Hex, 5/8" - 11 x 6", Gr 5, Full Thd

1шт.

16

87506236

CASTING

packer knuckle

2шт.

17

87418616

CAP

vinyl 38 x 35 lg black

1шт.

18

50032

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

1шт.

19

DR-709

SPACER

1 1/4" od x 3/32" thick x 4" long

1шт.

20

DR-712

SPACER,25.78mm ID x 31.37mm OD x 23.82mm L

plastic 1 1/4" od x 3/32" thick x 15/16" long

1шт.

21

DR-563A

FRAME

gang adjuster assembly

1шт.

Includes two 6635 and DR-709

1шт.

22

DR-564A

STEM

gang adjuster assembly

1шт.

Includes two 6635 and DR-712

1шт.

Used with 4' and 6' bolsters

1шт.

23

DR-724

BOLSTER

4' gang frame

1шт.

Shown

1шт.

23

87450341

FRAME

6' gang bolster

1шт.

Not Shown

1шт.

24

DR-567

BRACKET

double gang adjustment

1шт.

25

87500002

JOURNAL

gang

1шт.

26

DR-566

PIN,25.4mm OD x 133mm L

1" x 4 1/8"

1шт.

27

87310714

BOLT

3/4"-10 x 9" G5, Full thread

2шт.
