Запчасти Case IH ATX400 (6.060.1) - GANG FRAME PARTS LAYOUT 57 Packer Gang Assemblies and Frames

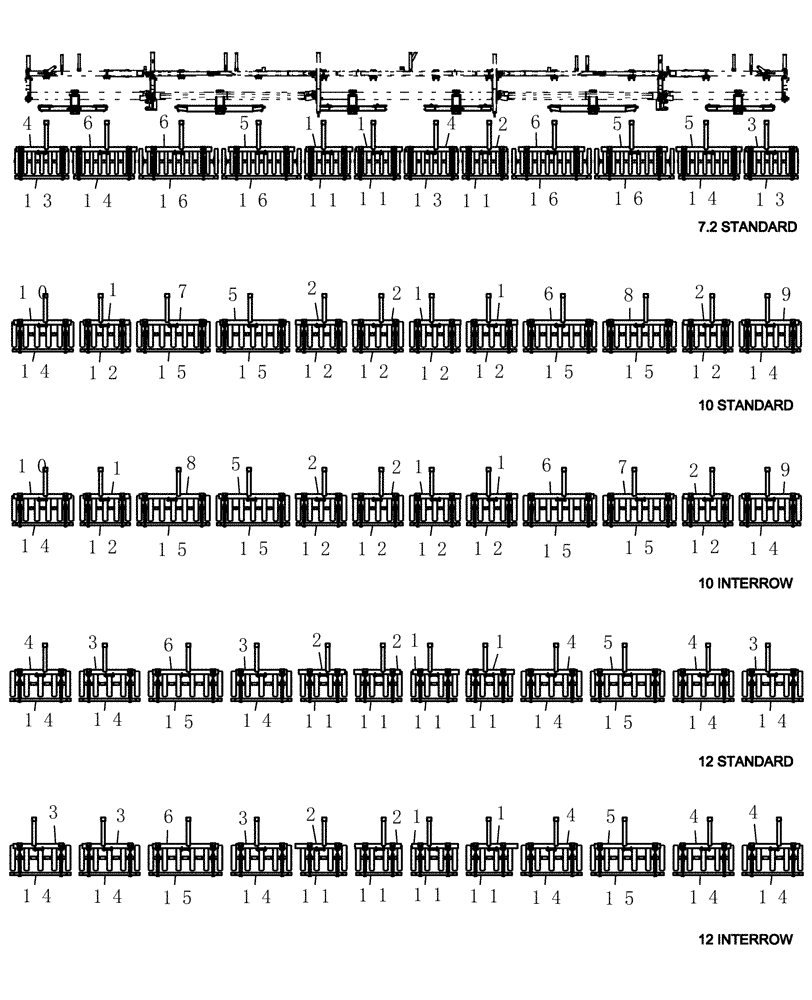

Схема запчастей Case IH ATX400 - (6.060.1) - GANG FRAME PARTS LAYOUT 57 Packer Gang Assemblies and Frames
15
7
11
16
14
12
5
1
5
14
4
4
9
4
6
3
14
3
15
5
15
12
2
1
2
14
13
13
2
12
11
1
3
14
14
5
16
5
5
14
1
14
15
6
10
5
14
8
1
14
11
12
3
14
9
1
11
12
1
7
12
11
8
2
11
16
12
15
6
11
2
1
10
4
13
14
14
1
3
15
15
12
16
3
14
12
2
15
1
2
11
15
2
6
15
11
1
2
12
12
14
14
15
6
14
11
4
4
2
6
12
2
6
4
15
3
11
14
1
4

Артикул

Название

Примечание

Количество

1

DS-281

FRAME

gang t-bar

12шт.

2

DS-282

FRAME

gang t-bar

11шт.

3

DS-284

FRAME

gang t-bar

7шт.

4

DS-285

FRAME

gang t-bar

8шт.

5

DS-286

FRAME

gang t-bar

7шт.

6

DS-287

FRAME

gang t-bar

7шт.

7

87500503

FRAME

t-bar left

2шт.

8

87500505

FRAME

t-bar right

2шт.

9

87500131

FRAME

t-bar left

2шт.

10

87500134

FRAME

t-bar right

2шт.

11

87450340

TUBE,1000 mm L x 50.8 mm W x 50.8 mm H

rear gang 39 25/64"

11шт.

12

87500129

TUBE,1090 mm L

rear gang 42 57/64"

12шт.

13

87501083

TUBE,1180 mm L

rear gang 46 1/2"

3шт.

14

87501085

TUBE,1335 mm L

rear gang 52 19/32"

18шт.

15

87501087

TUBE,1600 mm L

rear gang 63"

12шт.

16

87501089

TUBE,1740 mm L

rear gang 68 1/2"

4шт.

Выбрано товаров: 16
