Запчасти Case IH ATX400 (6.050.1) - GANG FRAME PARTS LAYOUT 51 Packer Gang Assemblies and Frames

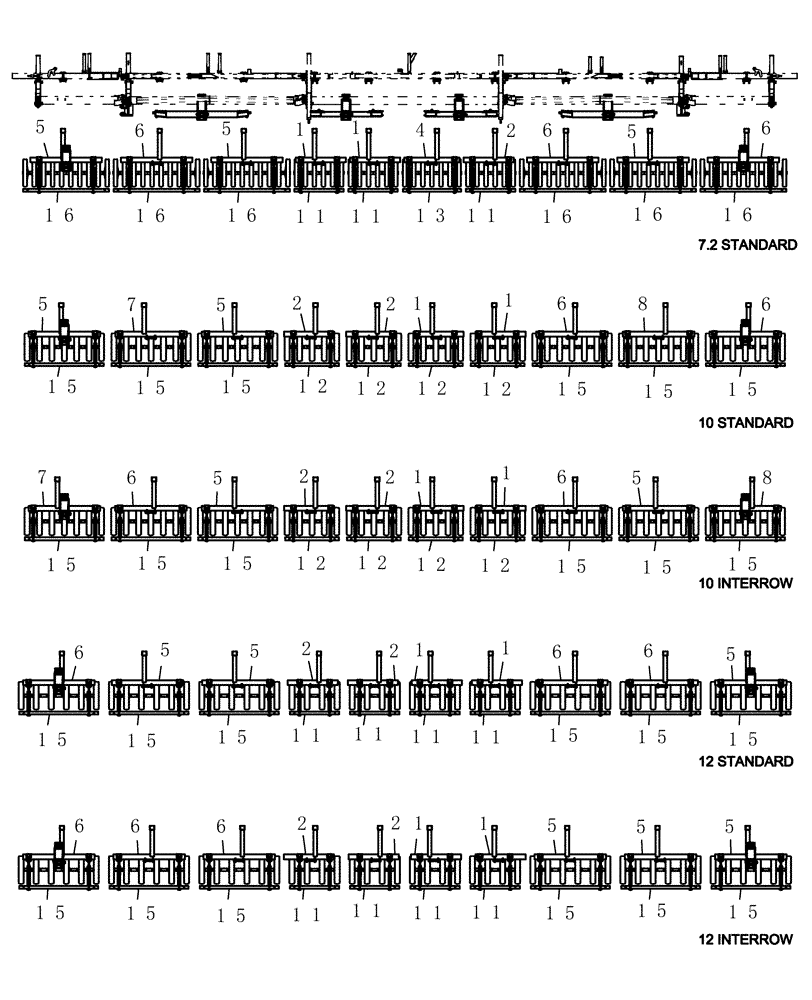

Схема запчастей Case IH ATX400 - (6.050.1) - GANG FRAME PARTS LAYOUT 51 Packer Gang Assemblies and Frames
11
15
2
12
15
15
16
1
11
7
15
5
1
12
15
5
16
6
16
11
12
15
15
4
12
16
1
5
6
11
1
13
15
6
6
15
5
11
12
12
6
11
2
1
12
5
6
5
1
6
5
16
2
16
1
15
11
6
6
7
5
15
15
2
15
15
11
1
2
2
15
15
11
2
5
6
5
1
1
15
8
15
15
12
2
15
6
15
15
11
11
6
15
15
5
5
2
5
6
8

Артикул

Название

Примечание

Количество

1

DS-281

FRAME

gang t-bar

10шт.

2

DS-282

FRAME

gang t-bar

9шт.

4

DS-285

FRAME

gang t-bar

1шт.

5

DS-286

FRAME

gang t-bar

13шт.

6

DS-287

FRAME

gang t-bar

13шт.

7

87500503

FRAME

t-bar left

2шт.

8

87500505

FRAME

t-bar right

2шт.

11

87450340

TUBE,1000 mm L x 50.8 mm W x 50.8 mm H

rear gang 39 25/64"

11шт.

12

87500129

TUBE,1090 mm L

rear gang 42 57/64"

8шт.

13

87501083

TUBE,1180 mm L

rear gang 46 1/2"

1шт.

15

87501087

TUBE,1600 mm L

rear gang 63"

24шт.

16

87501089

TUBE,1740 mm L

rear gang 68 1/2"

6шт.
