Запчасти Case IH ATX400 (6.040.1) - GANG FRAME PARTS LAYOUT 45 Packer Gang Assemblies and Frames

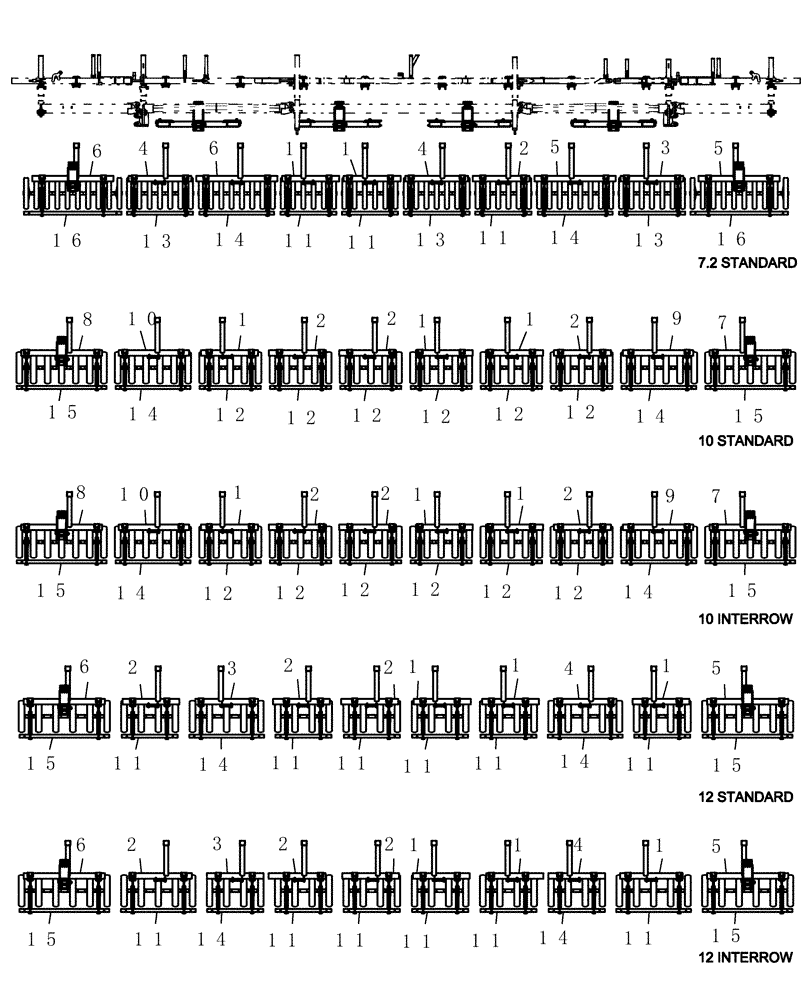

Схема запчастей Case IH ATX400 - (6.040.1) - GANG FRAME PARTS LAYOUT 45 Packer Gang Assemblies and Frames
1
1
1
8
9
2
6
2
11
2
2
12
1
14
2
1
5
5
12
2
4
11
7
11
8
1
14
11
3
15
11
13
1
1
2
11
12
13
3
12
11
1
12
4
11
15
15
16
14
3
11
11
2
6
12
15
1
14
15
11
14
10
2
9
15
11
11
15
12
4
14
12
6
13
4
2
1
12
1
14
1
2
2
12
10
14
11
1
12
7
2
12
6
5
15
11
5
14
14
16

Артикул

Название

Примечание

Количество

1

DS-281

FRAME

gang t-bar

14шт.

2

DS-282

FRAME

gang t-bar

13шт.

3

DS-284

FRAME

gang t-bar

3шт.

4

DS-285

FRAME

gang t-bar

4шт.

5

DS-286

FRAME

gang t-bar

4шт.

6

DS-287

FRAME

gang t-bar

4шт.

7

87500503

FRAME

t-bar left

2шт.

8

87500505

FRAME

t-bar right

2шт.

9

87500131

FRAME

t-bar left

2шт.

10

87500134

FRAME

t-bar right

2шт.

11

87450340

TUBE,1000 mm L x 50.8 mm W x 50.8 mm H

rear gang 39 25/64"

15шт.

12

87500129

TUBE,1090 mm L

rear gang 42 57/64"

12шт.

13

87501083

TUBE,1180 mm L

rear gang 46 1/2"

3шт.

14

87501085

TUBE,1335 mm L

rear gang 52 19/32"

10шт.

15

87501087

TUBE,1600 mm L

rear gang 63"

8шт.

16

87501089

TUBE,1740 mm L

rear gang 68 1/2"

2шт.

Выбрано товаров: 16
