Запчасти Case IH ATX400 (6.020.1) - GANG FRAME PARTS LAYOUT 33 Packer Gang Assemblies and Frames

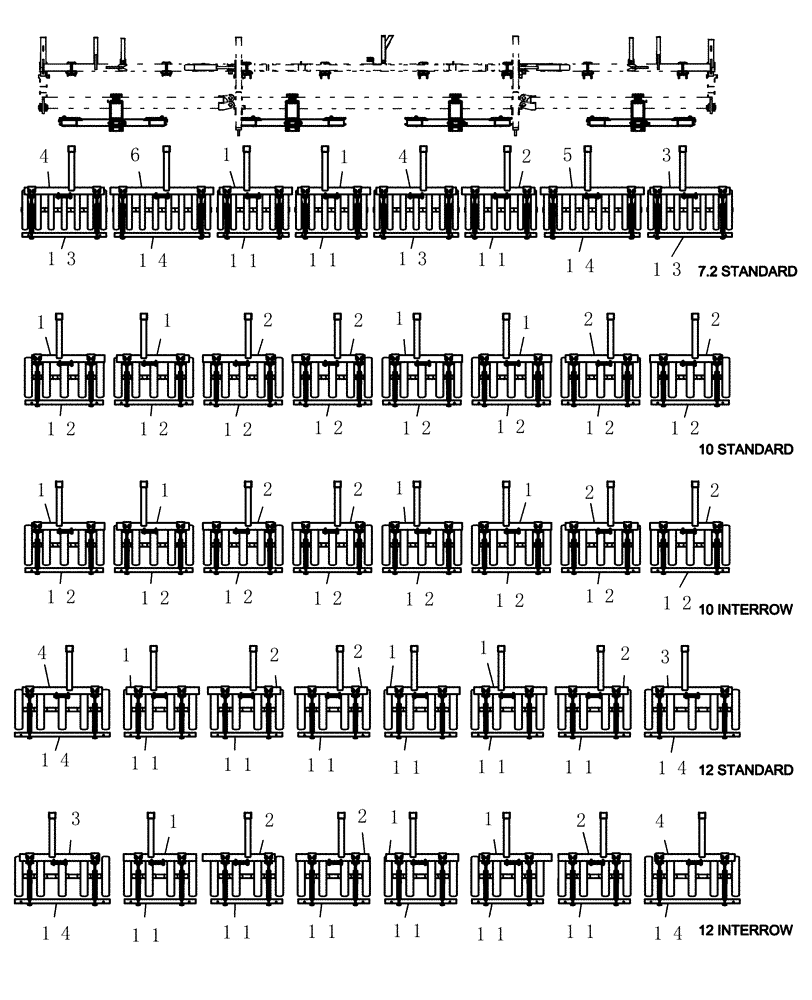

Схема запчастей Case IH ATX400 - (6.020.1) - GANG FRAME PARTS LAYOUT 33 Packer Gang Assemblies and Frames
1
2
1
1
1
2
2
12
11
13
2
1
3
2
1
12
1
12
1
4
11
2
1
12
3
11
12
11
11
12
11
14
11
14
12
11
4
12
2
3
11
12
12
1
1
11
2
11
1
14
11
2
6
14
14
2
11
2
11
12
2
1
14
12
12
4
12
2
11
12
4
1
2
13
2
1
13
12
5
1

Артикул

Название

Примечание

Количество

1

DS-281

FRAME

gang t-bar

16шт.

2

DS-282

FRAME

gang t-bar

15шт.

3

DS-284

FRAME

gang t-bar

3шт.

4

DS-285

FRAME

gang t-bar

4шт.

5

DS-286

FRAME

gang t-bar

1шт.

6

DS-287

FRAME

gang t-bar

1шт.

11

87450340

TUBE,1000 mm L x 50.8 mm W x 50.8 mm H

rear gang 39 25/64"

15шт.

12

87500129

TUBE,1090 mm L

rear gang 42 57/64"

16шт.

13

87501083

TUBE,1180 mm L

rear gang 46 1/2"

3шт.

14

87501085

TUBE,1335 mm L

rear gang 52 19/32"

6шт.
