Запчасти Case IH ATX400 (6.010.1) - GANG FRAME PARTS LAYOUT 27 Packer Gang Assemblies and Frames

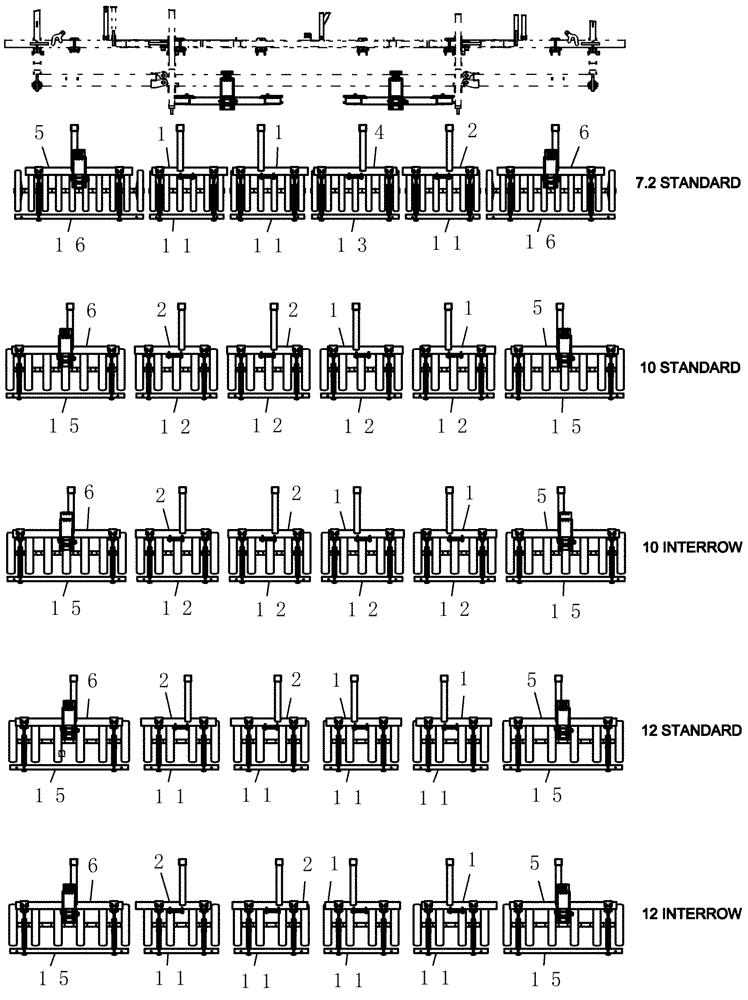

Схема запчастей Case IH ATX400 - (6.010.1) - GANG FRAME PARTS LAYOUT 27 Packer Gang Assemblies and Frames
11
15
1
15
2
1
11
12
2
1
15
11
15
12
4
1
1
12
13
11
5
5
12
2
2
15
11
11
6
11
16
11
6
5
15
2
1
12
2
2
12
11
1
5
16
11
5
15
1
11
12
2
15
6
6
6
1
2
1
12

Артикул

Название

Примечание

Количество

1

DS-281

FRAME

gang t-bar

10шт.

2

DS-282

FRAME

gang t-bar

9шт.

4

DS-285

FRAME

gang t-bar

1шт.

5

DS-286

FRAME

gang t-bar

5шт.

6

DS-287

FRAME

gang t-bar

5шт.

11

87450340

TUBE,1000 mm L x 50.8 mm W x 50.8 mm H

rear gang 39 25/64"

3шт.

12

87500129

TUBE,1090 mm L

rear gang 42 57/64"

16шт.

13

87501083

TUBE,1180 mm L

rear gang 46 1/2"

1шт.

15

87501087

TUBE,1600 mm L

rear gang 63"

8шт.

16

87501089

TUBE,1740 mm L

rear gang 68 1/2"

2шт.

Выбрано товаров: 10
