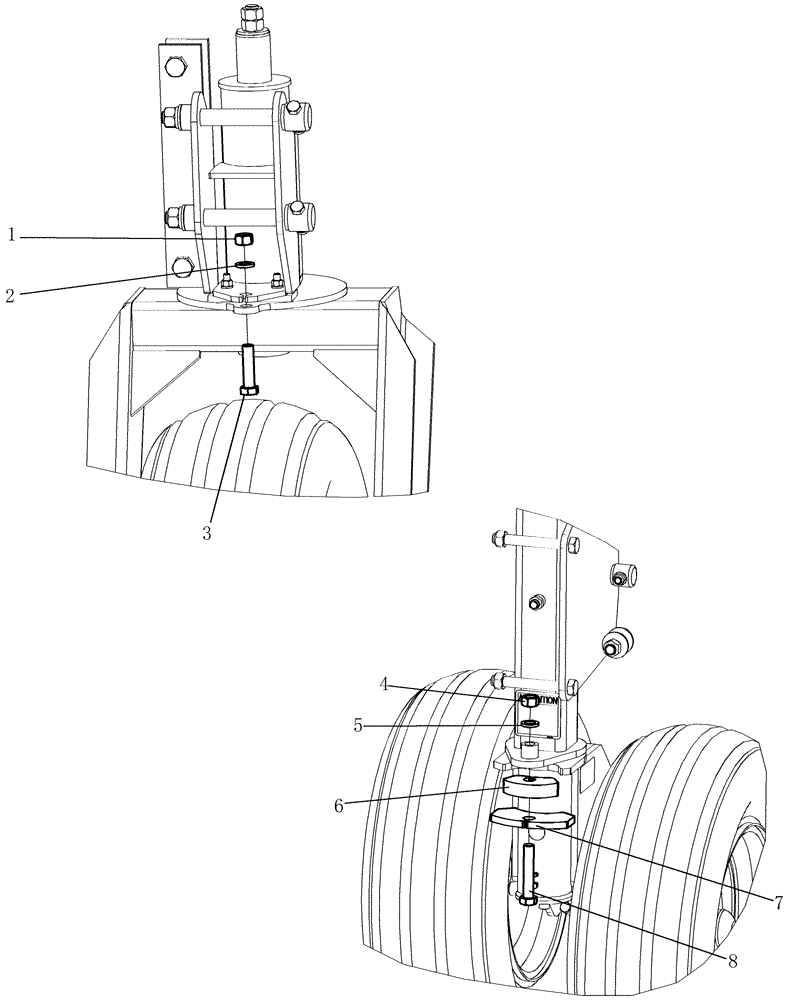

Запчасти Case IH ATX400 (5.130.1) - TRANSPORT LOCK KIT Options

0

DR-114K

KIT

transport lock dual caster

1шт.

Includes two DR-114, two DR-117, two 280210, two 87340, two 280954, and DR-001V1

1шт.

0

DR-112K

KIT

transport lock single caster

1шт.

Includes two 87630, two 86729275, two 280374, and DR-001V1

1шт.

1

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

Single caster

1шт.

2

12034871

WASHER

5/8"

2шт.

Single caster

1шт.

3

280233

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

2шт.

Single caster

1шт.

4

280954

NUT,3/4"-10, G5

2шт.

Dual caster

1шт.

5

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

Dual caster

1шт.

6

DR-117

PLATE

transport lock

2шт.

Dual caster

1шт.

7

DR-114

PLATE

transport lockout

2шт.

Dual caster

1шт.

8

280210

BOLT,Hex, 3/4"-10 x 4", G5

2шт.

Dual caster

1шт.

9

DR-001V1

INSTRUCTION

sheet transport lockout

1шт.

Not Shown

1шт.
