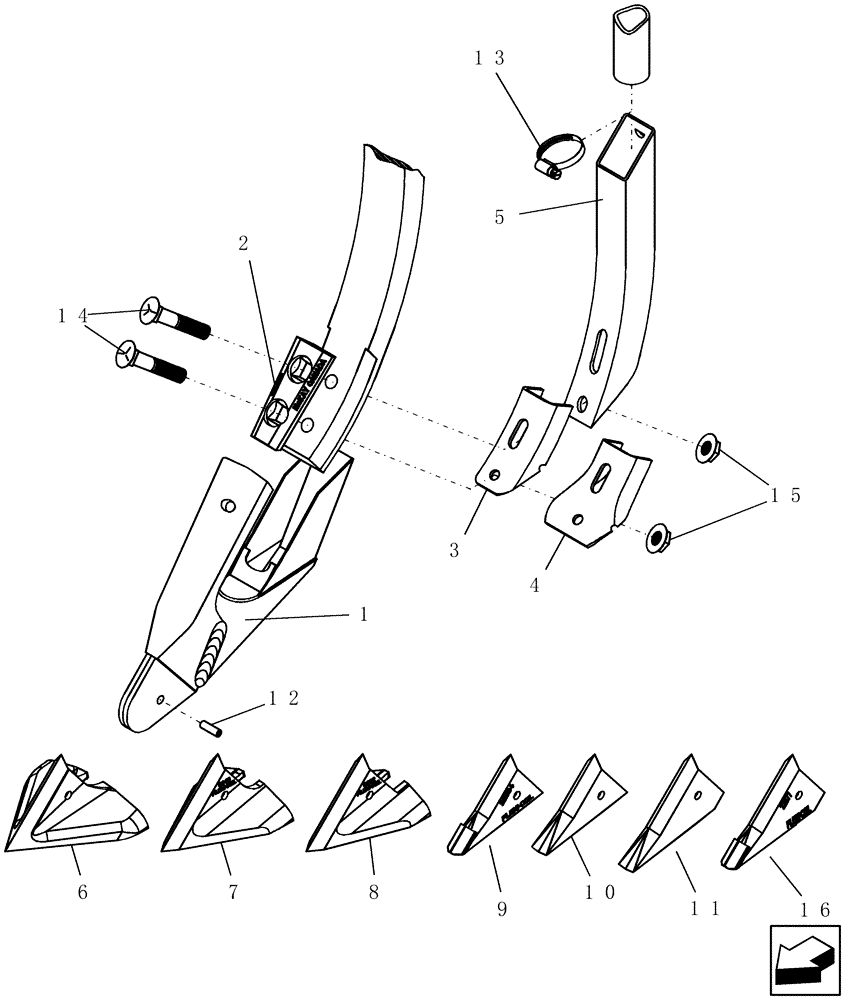

Запчасти Case IH ATX400 (03.080.1) - TRIPS & GROUND OPENERS MCKAY SLIMWEDGE NOK-ON OPENER ADAPTER Options

1

BG-111

ADAPTER

field cultivator stealth tip, knock on

1шт.

Includes 22663

1шт.

2

87625317

WEDGE

slim sweep 47º shank 7/16" bolts at 1 3/4" spacing

1шт.

3

AS-859

BOOT

banding, narrow spread

1шт.

4

AS-858

BOOT

banding, wide spread

1шт.

5

GD-446

BOOT

banding, without crease

1шт.

5

GD-455

BOOT

banding, with crease

1шт.

6

87506290

TIP

cast 5" spread Stealth

1шт.

7

87506285

TIP

cast 4" spread Stealth

1шт.

8

87506284

TIP

cast 3" spread Stealth

1шт.

9

87506293

TIP

cast standard Stealth carbide

1шт.

10

87506283

TIP

cast standard Stealth

1шт.

11

87506287

TIP

cast gumbo Stealth

1шт.

12

8082V2

ROLL PIN,7.94mm OD x 25.4mm L

spiral 5/16" x 1" heavy duty

1шт.

13

1327

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

1шт.

14

8542

TERMINAL BOX

7/16"-14 x 2 1/2", G5

2шт.

15

23097

FLANGE NUT,Flg, 7/16"-14, GF

FLANGED - .438 IN UNC

2шт.

16

87505195

TIP

cast gumbo Stealth carbide

1шт.

100

22663

DECAL

Refer to Operators Manual

1шт.

Not Shown

1шт.
