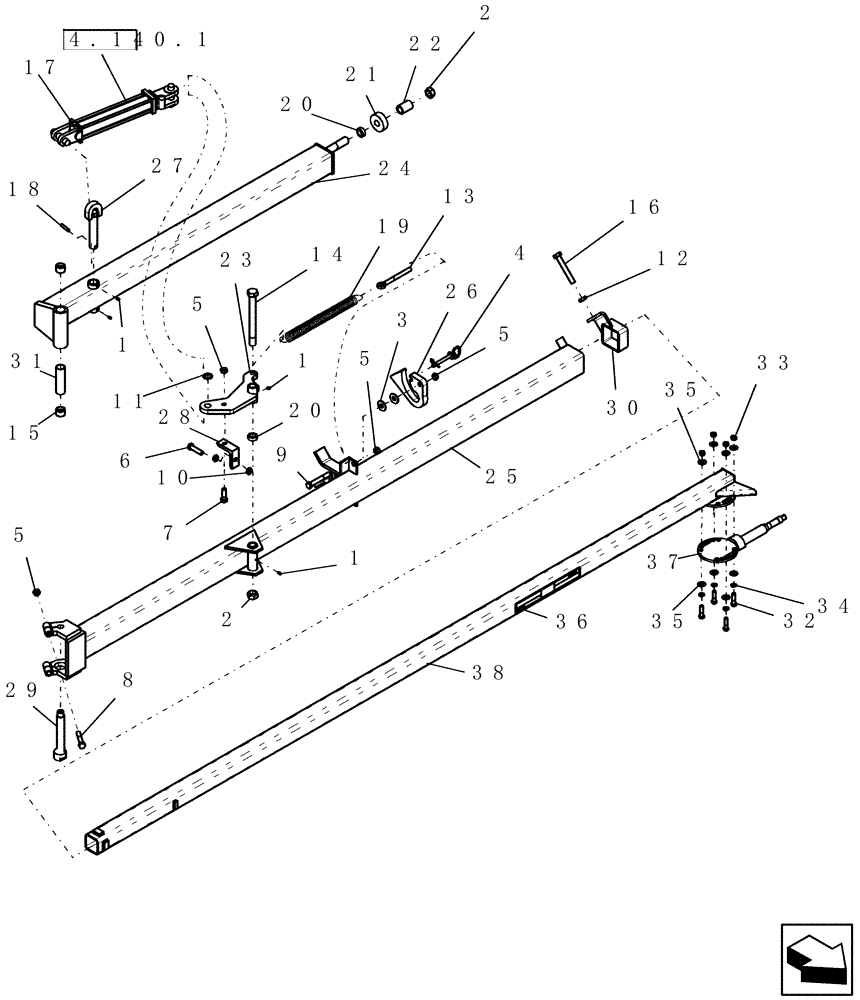

Запчасти Case IH ATX400 (4.070.1) - ENDMARKER SINGLE STAGE BOOM ASSEMBLY (18) - MISCELLANEOUS

1

87414

LUBE NIPPLE,1/4" - 28

4шт.

2

280286

NUT,1"-8, GB

2шт.

3

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

2шт.

4

432577A1

HITCH PIN,12.7mm OD x 127mm L

1/2" x 3 1/2" ul c/w 1/8" hairpin

1шт.

5

85700693

NUT,5/8" - 11, Gr C

4шт.

6

2298

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 2

5/8"-11 x 2 1/2", G2, Full thread

1шт.

7

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

8

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

1шт.

9

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

1шт.

10

9636972

JAM NUT,Jam, 5/8"-11, G2

2шт.

11

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

1шт.

12

86632557

JAM NUT,Jam, 3/4"-10, G5

1шт.

13

4269

EYEBOLT

5/8"-11x 7 3/8"

1шт.

14

87014472

BOLT

Hex, 1"-8 x 10", G8

1шт.

15

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

2шт.

16

6717

BOLT,Hex, 3/4" - 10 x 5", Gr 5, Full Thd

1шт.

17

87500855

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 304.8mm Stroke

2" x 12" Monarch 2500 psi without pins

1шт.

Refer to 4.140.1 - 2" X 12" hydraulic cylinder

1шт.

18

86624061

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

1шт.

19

87505303

TENSION SPRING

5/16" wire 1 5/64" od x 18" long

1шт.

20

DR-442

SPACER

short roller

2шт.

21

DR-443

GUIDE

roller, endmarker

1шт.

22

DR-444

SPACER

long roller

1шт.

23

DR-446

ARM

release, endmarker

1шт.

24

DR-740

BOOM

stationary

1шт.

Includes NN-361 and two 6636

1шт.

25

DR-741

BOOM

endmarker swinger

1шт.

26

DR-745

HOOK

marker

1шт.

27

DR-748

MOUNTING PARTS

cylinder - rear

1шт.

28

DR-749

ADJUSTER

breakaway

1шт.

29

87661322

PIN

offset

1шт.

30

DR-763

CLAMP

for 3" tube

1шт.

31

NN-361

SPACER

1 1/2" od x 3/32" thick x 1/2" long

1шт.

32

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

33

280431

NUT,1/2"-13, G5

4шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

35

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

36

DR-500.03

DECAL

danger stand clear

1шт.

36

87607190

DECAL

danger, stand clear, Russian

1шт.

37

DR-747

SPINDLE

endmarker

1шт.

Includes 1586 and 1589

1шт.

38

DR-754

BOOM

single stage RH

1шт.

38

DR-755

BOOM

single stage LH

1шт.
