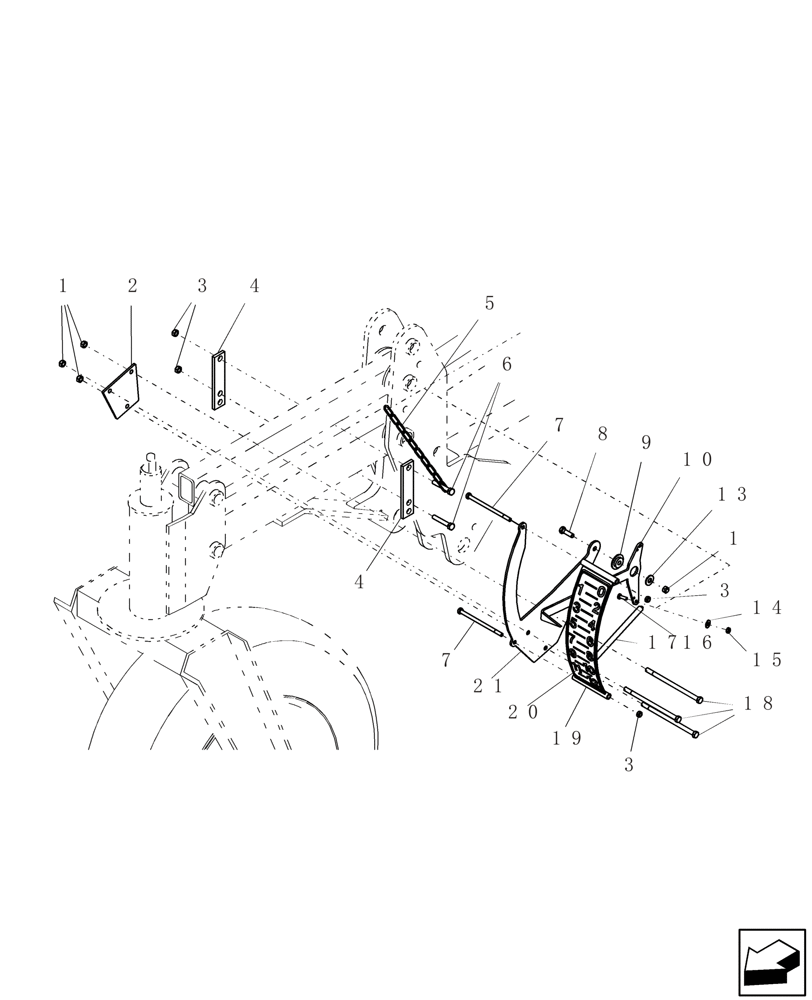

Запчасти Case IH ATX400 (4.010.1) - DEPTH GAUGE ASSEMBLY (18) - MISCELLANEOUS

0

NW-590K

KIT

depth gauge - caster wheel mount

1шт.

1

88902

NUT,3/8"-16

4шт.

2

NW-593

BACKING PLATE

gauge depth

1шт.

3

280736

NUT,5/16"-18, GC

4шт.

4

NW-595

BRACKET

mount, depth gauge chain

2шт.

5

NW-598

CHAIN

lk 1/8" 11 link

1шт.

6

88731

BOLT,Hex, 5/16"- 18 x 3", Gr 5

2шт.

Light Caster

1шт.

6

88964

BOLT,Hex, 5/16" - 18 x 4", Gr 5

2шт.

Heavy caster

1шт.

7

413-588

BOLT,Hex, 5/16" - 18 x 5-1/2", Gr 5

2шт.

8

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

9

NW-596

BUSHING

nylon depth indicator

1шт.

10

NW-591

GAUGE

indicator depth

1шт.

13

5271

WASHER,0.44" ID x 1.75" OD x 0.08" Thk

7/16" id 1 3/4" 5/64"

1шт.

14

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

1шт.

15

280129

NUT,1/4"-20

1шт.

16

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

17

432602A1

TENSION SPRING

1/16" wire 1/2" od 7 1/2"s.s stainless steel

1шт.

18

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3шт.

19

NW-590

GAUGE

faceplate depth

1шт.

Includes NW-500.07

1шт.

20

NW-500.07

DECAL

0 - 12 depth gauge

1шт.

21

NW-594

GAUGE

mount plate depth

1шт.
