Запчасти Case IH ATX400 (1.380.1) - 6 FIVE SECTION OUTER WING (REAR) - 45 AND 51, 45 MODEL SHOWN (12) - FRAME

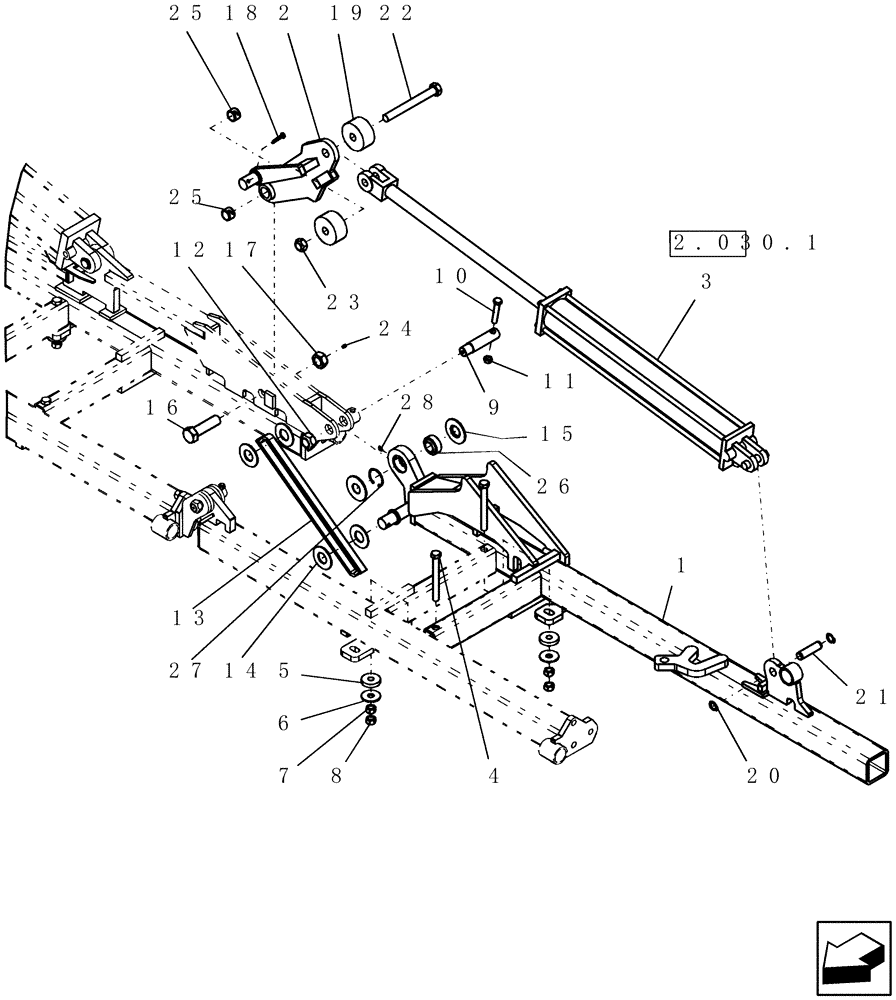

Схема запчастей Case IH ATX400 - (1.380.1) - 6 FIVE SECTION OUTER WING (REAR) - 45 AND 51, 45 MODEL SHOWN (12) - FRAME
28
10
12
15
7
24
4
21
27
6
20
14
26
17
2.030.1
13
19
9
3
11
1
25
25
5
22
8
18
23
2
16

Артикул

Название

Примечание

Количество

1

87500887

BAR

4th 6' outer wing left

1шт.

Shown

1шт.

Includes 87443834 and 370012

1шт.

1

87500871

BAR

4th 6' outer wing right

1шт.

Includes 87443834 and 370012

1шт.

Not Shown

1шт.

2

87500406

LEVER

arm small left 160º

1шт.

Shown

1шт.

Includes two 87505190

1шт.

2

87500398

LEVER

arm small right 160º

1шт.

Not Shown

1шт.

Includes two 87505190

1шт.

3

87437292

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 812.8mm Stroke

4" x 32" mon 3000 psi without pins

1шт.

Refer to 4" x 32" hydraulic cylinder - Monarch page for details

1шт.

45' models

1шт.

87437292R

REMAN-HYD CYLINDER

ATX400 BSN Y9S003001 (7/06-7/08)

1шт.

87437292C

CORE-HYD CYLINDER

Return Number

1шт.

4

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

4шт.

5

CA-106

PAD

flex, 3/4" id x 2 1/2" od x 1/2" thick

4шт.

6

87325443

WASHER,0.78" ID x 2.5" OD x 0.19" Thk

25/32" x 2 1/2" x 3/16"

4шт.

7

280375

NUT,3/4"-10, GC

6шт.

8

280954

NUT,3/4"-10, G5

4шт.

9

87420536

PIN

35 mm x 95 mm ul pln

1шт.

10

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

1шт.

11

85700693

NUT,5/8" - 11, Gr C

1шт.

12

87323802

NUT

1 1/4"-12, GB

1шт.

13

DR-408

LINK

control

1шт.

14

3562

WASHER,1.56" ID x 3.25" OD x 0.16" Thk

1 9/16" id 3 1/4" 8ga

4шт.

15

87440392

WASHER

indented 5000 wing

2шт.

16

87444390

BOLT

1 1/4"-7 x 5" greasable

1шт.

17

86609684

NUT,1 1/4"-7, GB

1шт.

18

3566

COTTER PIN

5/16" x 2"

1шт.

19

DR-400

ROLLER

with id for 1" bolt air drill

2шт.

20

87019495

SNAP RING,#98, Ext

2шт.

21

8972

PIN

cylinder, 1" x 3 3/8" ul with snap ring groove (#437324)mo

1шт.

22

281055

BOLT,Hex, 1" - 8 x 9", Gr 5

1шт.

23

280286

NUT,1"-8, GB

3шт.

24

87414

LUBE NIPPLE,1/4" - 28

1шт.

25

87505190

BUSHING

tension 1 1/2" x 1 1/4" x 1"

2шт.

26

87443834

SPHERICAL BEARING,35mm ID x 62mm OD x 35mm W

spherical plane 35 mm

2шт.

27

370012

RING,M62, Internal

2шт.

28

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

Выбрано товаров: 42
