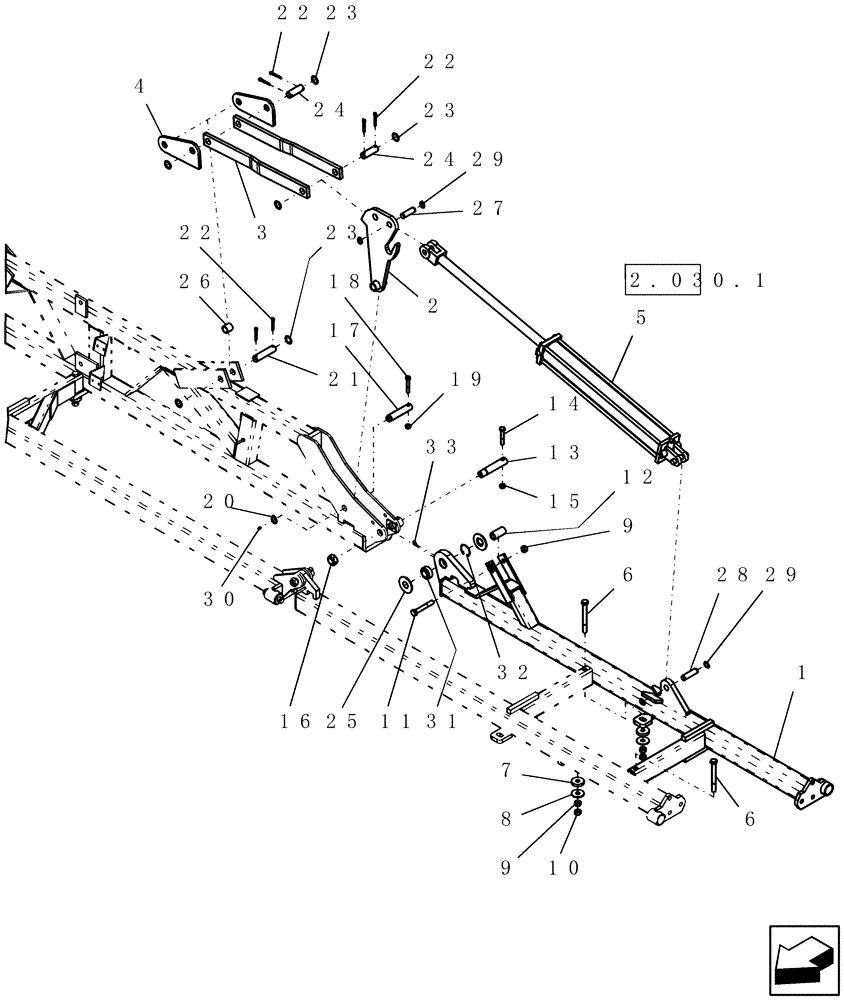

Запчасти Case IH ATX400 (1.290.1) - 9 THREE SECTION OUTER WING (REAR) - 33 MODEL SHOWN (12) - FRAME

1

87500960

BAR

4th 33' wing left

1шт.

Shown

1шт.

Includes 87443834 and 370012

1шт.

1

87500959

BAR

4th 33' wing right

1шт.

Includes 87443834 and 370012

1шт.

Not Shown

1шт.

2

DR-405

LEVER

110º - small

1шт.

3

87500596

LINK

wing lift short 27"

2шт.

4

87445634

LINK

rocker small wing lift

2шт.

5

87437292

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 812.8mm Stroke

4" x 32" mon 3000 psi without pins

1шт.

33' models

1шт.

Refer to 4" x 32" hydraulic cylinder - Monarch page for details

1шт.

87437292R

REMAN-HYD CYLINDER

ATX400 BSN Y9S003001 (7/06-7/08)

1шт.

87437292C

CORE-HYD CYLINDER

Return Number

1шт.

6

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

4шт.

7

CA-106

PAD

flex, 3/4" id x 2 1/2" od x 1/2" thick

4шт.

8

87325443

WASHER,0.78" ID x 2.5" OD x 0.19" Thk

25/32" x 2 1/2" x 3/16"

4шт.

9

280375

NUT,3/4"-10, GC

5шт.

10

280954

NUT,3/4"-10, G5

4шт.

11

88421

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

12

87500508

ROLLER

control link

1шт.

13

87420535

PIN,34.98mm OD x 177mm L

35 x 115 mm ul pln

1шт.

14

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

1шт.

15

85700693

NUT,5/8" - 11, Gr C

1шт.

16

87323802

NUT

1 1/4"-12, GB

1шт.

17

87420523

PIN

lift lever 1 1/4" x 6 7/32"

1шт.

18

87301770

BOLT,Hex, 9/16" - 12 x 3-1/4", Gr 8

9/16"-12 x 3 1/4" gr8

1шт.

19

280328

NUT,9/16"-12, GB

1шт.

20

86625148

SNAP RING,#125, Ext

1шт.

21

87420395

PIN

1 1/4" dia x 5 1/2"

1шт.

22

3566

COTTER PIN

5/16" x 2"

6шт.

23

87304341

WASHER,1.27" ID x 1.75" OD x 0.03" Thk

6шт.

24

87420396

PIN

1 1/4" dia x 3 7/8"

2шт.

25

87440392

WASHER

indented 5000 wing

2шт.

26

8469

BUSHING,32.26mm ID x 38.48mm OD x 38.1mm L

Nylatron* 1 1/2" x 1 1/4" x 1 1/2" long

1шт.

26

87642646

BUSHING

1 1/2" od x 1 1/4" id x 1 1/2" long

1шт.

27

3326

PIN

cylinder 1" x 2 7/8" ul hardened with snap rings

1шт.

28

8972

PIN

cylinder, 1" x 3 3/8" ul with snap ring groove (#437324)mo

1шт.

29

87019495

SNAP RING,#98, Ext

6шт.

30

87414

LUBE NIPPLE,1/4" - 28

1шт.

31

87443834

SPHERICAL BEARING,35mm ID x 62mm OD x 35mm W

spherical plane 35 mm

1шт.

32

370012

RING,M62, Internal

1шт.

33

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.
