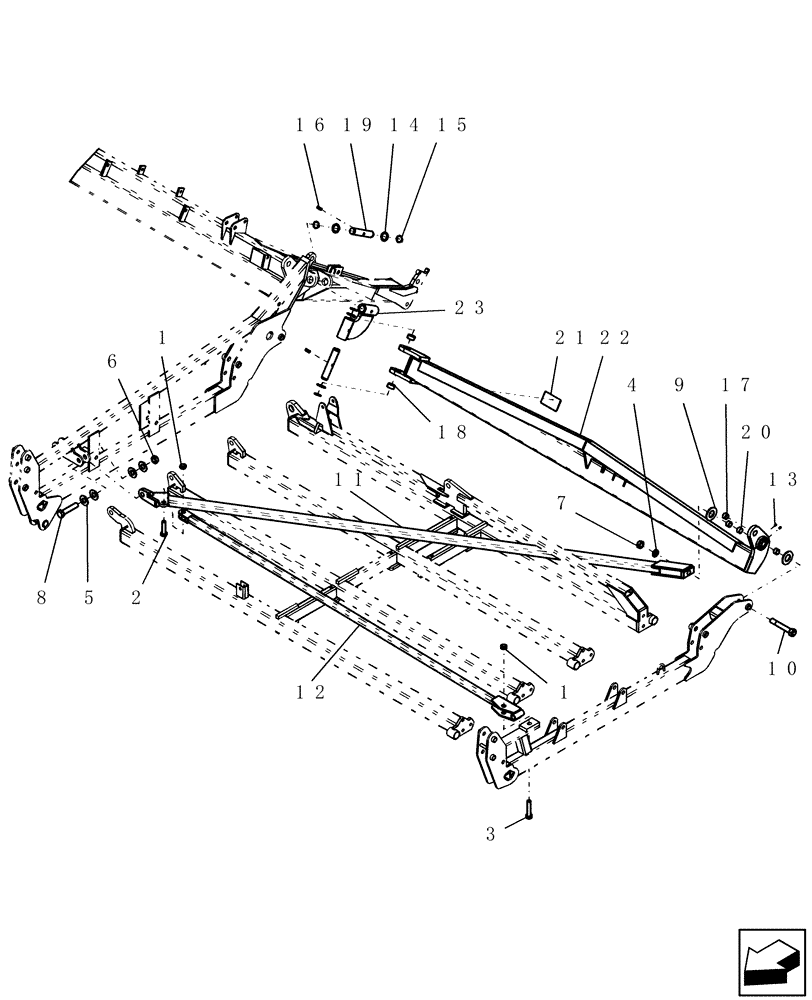

Запчасти Case IH ATX400 (1.270.1) - 12 THREE SECTION OUTER WING BRACING AND ROCKSHAFT - 39 MODEL SHOWN (12) - FRAME
№
Артикул
Название
Примечание
Количество
1
280286
NUT,1"-8, GB
2шт.
2
280285
BOLT,Hex, 1" - 8 x 4", Gr 5
1шт.
3
88381
BOLT,Hex, 1" - 8 x 5", Gr 5
1шт.
4
84086
LOCK WASHER,32.08mm ID x 45.47mm OD x 7.95mm Thk
1шт.
5
87370
WASHER,1.38" ID x 3" OD x 0.17" Thk
, Years: -01-JUN-07
4шт.
5
87370
WASHER,1.38" ID x 3" OD x 0.17" Thk
, Start Year: 01-JUL-07
4шт.
6
86609684
NUT,1 1/4"-7, GB
1шт.
7
87323802
NUT
1 1/4"-12, GB
1шт.
8
7110
BOLT,Hex, 1 1/4" - 7 x 6", Gr 5
, Years: -01-JUN-07
1шт.
8
87635854
BOLT,Hex, 1 1/4" - 7 x 7", Gr 5
, Start Year: 01-JUL-07
1шт.
9
DR-494
BUSHING
support beam
2шт.
10
DR-807
BOLT
1 1/4"-12 x 7 7/8" chrome
1шт.
11
87501233
BRACKET
diagonal 12' wing left, Years: -01-FEB-07
1шт.
Shown
1шт.
11
87614514
BRACKET
diagonal 12' wing left, Start Year: 01-MAR-07
1шт.
Shown
1шт.
11
87501232
BRACKET
diagonal 12' wing right, Years: -01-FEB-07
1шт.
Not Shown
1шт.
11
87614510
BRACKET
diagonal 12' wing right, Start Year: 01-MAR-07
1шт.
Not Shown
1шт.
12
87500623
LINK
tension, 12' wing, Years: -01-FEB-07
1шт.
12
87610507
LINK
tension 12' wing, Start Year: 01-MAR-07
1шт.
14
87325446
WASHER,1.75" ID x 2.5" OD x 0.07" Thk
1 3/4" id 2 1/2" x 14 ga
4шт.
16
38-13224
LOCK PIN,1/2" x 1 1/2", Slotted
2шт.
17
87420247
BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L
gar mgl 1 1/2" x 1 1/4" x 1" polygon
3шт.
18
6637
BUSHING
composite 2" x 1 3/4" x 1"
2шт.
19
DR-681
PIN,44.57mm OD x 236.5mm L
rock shaft u-joint - 1 3/4" x 8 9/16"
2шт.
20
DR-711
SPACER
1 1/2" od x 3/32" thick x 7/8" long
1шт.
21
TC-500.08
DECAL
raised wings
1шт.
22
87501167
ROCKSHAFT
12' outer LH
1шт.
Shown
1шт.
Includes three 6636, four 6637, TC-500.08, two 80714 and DR-711
1шт.
22
87500998
ROCKSHAFT
12' outer RH
1шт.
Includes three 6636, four 6637, TC-500.08, two 80714 and DR-711
1шт.
Not Shown
1шт.
23
DR-389
HINGE
universal 6" x 6" heavy
1шт.
Выбрано товаров: 38
