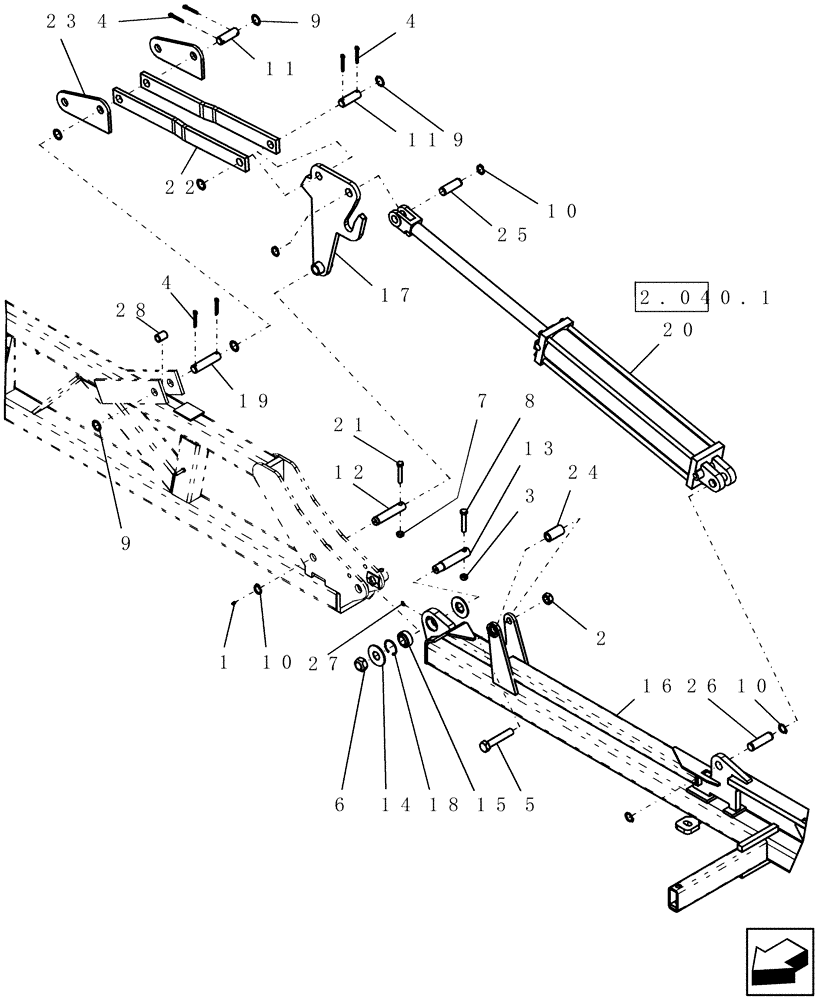

Запчасти Case IH ATX400 (1.230.1) - 9 FIVE SECTION INNER WING (REAR) - 45 MODEL SHOWN (12) - FRAME

1

87414

LUBE NIPPLE,1/4" - 28

1шт.

2

280286

NUT,1"-8, GB

1шт.

3

85700693

NUT,5/8" - 11, Gr C

1шт.

4

3566

COTTER PIN

5/16" x 2"

6шт.

5

413-1688

BOLT,Hex, 1" - 8 x 5-1/2", Gr 5

1шт.

6

87323802

NUT

1 1/4"-12, GB

1шт.

7

280328

NUT,9/16"-12, GB

1шт.

8

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

1шт.

9

87304341

WASHER,1.27" ID x 1.75" OD x 0.03" Thk

6шт.

10

86625148

SNAP RING,#125, Ext

5шт.

11

87420396

PIN

1 1/4" dia x 3 7/8"

2шт.

12

87420523

PIN

lift lever 1 1/4" x 6 7/32"

1шт.

13

87420535

PIN,34.98mm OD x 177mm L

35 x 115 mm ul pln

1шт.

14

87440392

WASHER

indented 5000 wing

2шт.

15

87443834

SPHERICAL BEARING,35mm ID x 62mm OD x 35mm W

spherical plane 35 mm

1шт.

16

87500795

BAR

4th 45' inner wing left

1шт.

Shown

1шт.

Includes 87443834 and 370012

1шт.

16

87500789

BAR

4th 45' inner wing right

1шт.

Includes 87443834 and 370012

1шт.

Not Shown

1шт.

17

DR-403

LEVER

100º - small

1шт.

18

370012

RING,M62, Internal

1шт.

19

87420395

PIN

1 1/4" dia x 5 1/2"

1шт.

20

87437293

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 762mm Stroke

5" x 30" Monarch 3000 psi without pins

1шт.

Refer to 5" x 30" and 5" x 40" hydraulic cylinder - Monarch page for details

1шт.

45' models

1шт.

21

87301770

BOLT,Hex, 9/16" - 12 x 3-1/4", Gr 8

9/16"-12 x 3 1/4" gr8

1шт.

22

87500596

LINK

wing lift short 27"

2шт.

23

87445634

LINK

rocker small wing lift

2шт.

24

87500508

ROLLER

control link

1шт.

25

8973

PIN

cylinder, 1 1/4" x 3 3/8" ul with snap ring groove

1шт.

26

8974

PIN

cylinder, 1 1/4" x 4" ul with snap ring groove (#437327)mo

1шт.

27

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

28

87642646

BUSHING

1 1/2" od x 1 1/4" id x 1 1/2" long

1шт.
