Запчасти Case IH ATX400 (1.220.1) - 9 FIVE SECTION INNER WING (FRONT) - 45 MODEL SHOWN (12) - FRAME

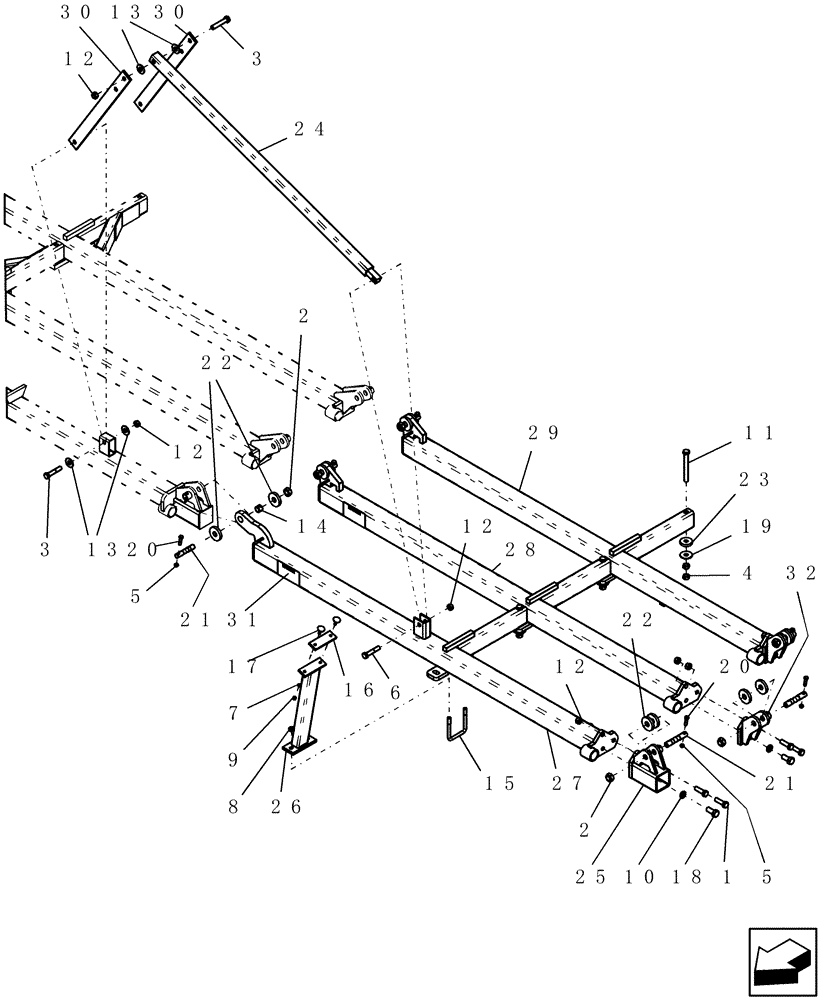

Схема запчастей Case IH ATX400 - (1.220.1) - 9 FIVE SECTION INNER WING (FRONT) - 45 MODEL SHOWN (12) - FRAME
6
22
28
2
2
13
12
5
15
30
21
21
16
3
12
14
3
4
30
23
11
20
10
27
26
29
20
9
19
5
12
8
25
18
32
22
12
13
7
24
1
17
31

Артикул

Название

Примечание

Количество

1

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

6шт.

2

280286

NUT,1"-8, GB

6шт.

3

280210

BOLT,Hex, 3/4"-10 x 4", G5

2шт.

4

280954

NUT,3/4"-10, G5

3шт.

5

86992215

LOCK NUT,1/2"-13, GC

6шт.

6

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

7

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

8

85700693

NUT,5/8" - 11, Gr C

2шт.

9

9628503

NUT,3/8"-16, G5

2шт.

10

87341

LOCK WASHER,7/8"

3шт.

11

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

3шт.

12

280375

NUT,3/4"-10, GC

12шт.

13

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

4шт.

14

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

3шт.

15

3951

U-BOLT

us 5/8"-11 4 1/16" w 5 3/8" d GR5

1шт.

16

5887

RUBBER PAD

wing rest

1шт.

17

87508081

BOLT

EL 3/8"-16 x 1 1/2"

2шт.

18

413-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 5

3шт.

19

87325443

WASHER,0.78" ID x 2.5" OD x 0.19" Thk

25/32" x 2 1/2" x 3/16"

3шт.

20

50032

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

6шт.

21

87420537

PIN

standard hinge 1" x 5 1/2"

6шт.

22

CA-105

PAD

flex, 1 1/32" id x 3" od x 1/2" thick

12шт.

23

CA-106

PAD

flex, 3/4" id x 2 1/2" od x 1/2" thick

3шт.

24

87500225

BAR

5 section long wing rest

1шт.

25

87500245

HINGE

extended female left

1шт.

Shown

1шт.

25

87500242

HINGE

extended female right

1шт.

Not Shown

1шт.

26

DR-534

STOP

transport, outer

1шт.

27

87500523

FRAME

9' wing 1st bar left

1шт.

Shown

1шт.

Includes TC-500.08 and 64601C1

1шт.

27

87500495

FRAME

9' wing 1st bar right

1шт.

Includes TC-500.08 and 64601C1

1шт.

Not Shown

1шт.

28

87500587

FRAME

9' wing 2nd bar left

1шт.

Shown

1шт.

Includes TC-500.08 and 64601C1

1шт.

28

87500514

FRAME

9' wing 2nd bar right

1шт.

Includes TC-500.08 and 64601C1

1шт.

Not Shown

1шт.

29

87500590

FRAME

9' wing 3rd bar left

1шт.

Shown

1шт.

Includes 64601C1

1шт.

29

87500515

FRAME

9' wing 3rd bar right

1шт.

Includes 64601C1

1шт.

Not Shown

1шт.

30

87447524

STOP

wing short

2шт.

31

TC-500.08

DECAL

raised wings

2шт.

32

87500254

HINGE

standard female left

2шт.

Shown

1шт.

32

87500251

HINGE

standard female right

2шт.

Not Shown

1шт.

Выбрано товаров: 53
