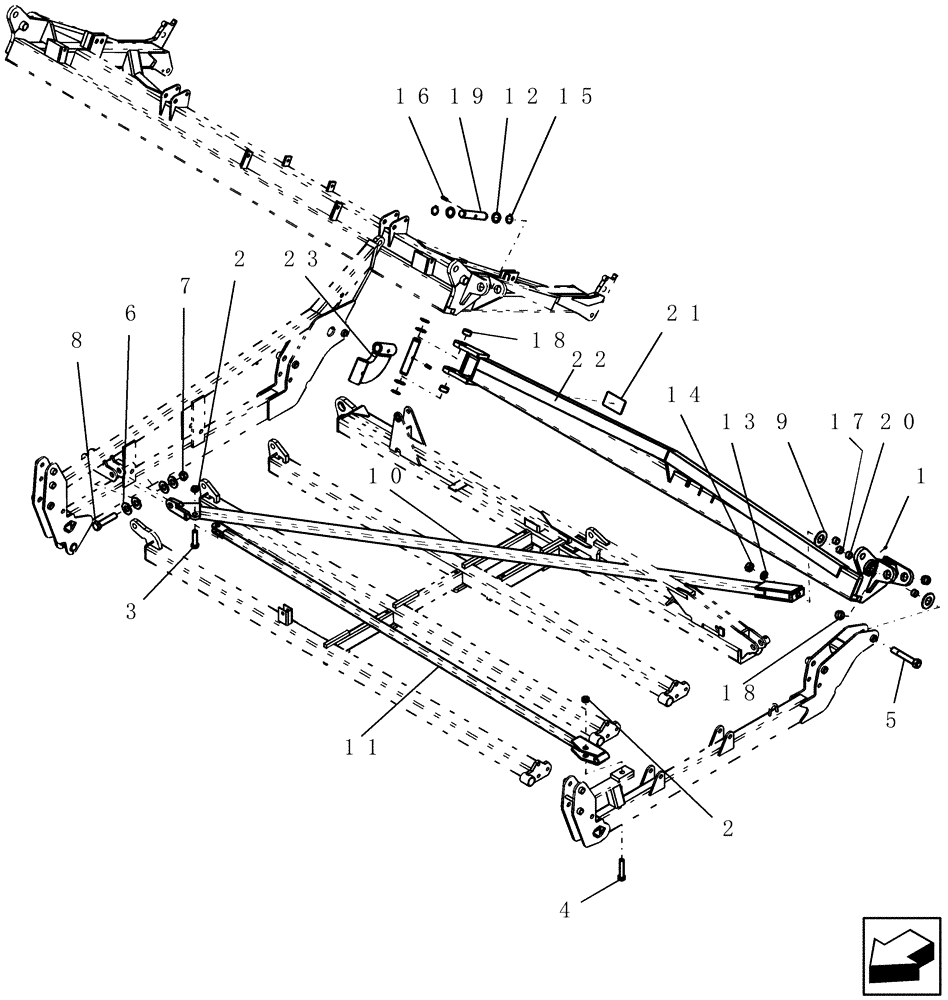

Запчасти Case IH ATX400 (1.210.1) - 12 FIVE SECTION INNER WING BRACING AND ROCKSHAFT - 51 MODEL SHOWN (12) - FRAME

1

87414

LUBE NIPPLE,1/4" - 28

2шт.

2

280286

NUT,1"-8, GB

2шт.

3

280285

BOLT,Hex, 1" - 8 x 4", Gr 5

1шт.

4

88381

BOLT,Hex, 1" - 8 x 5", Gr 5

1шт.

5

DR-807

BOLT

1 1/4"-12 x 7 7/8" chrome

1шт.

6

87370

WASHER,1.38" ID x 3" OD x 0.17" Thk

, Years: -01-JUN-07

4шт.

6

87370

WASHER,1.38" ID x 3" OD x 0.17" Thk

, Start Year: 01-JUL-07

6шт.

7

86609684

NUT,1 1/4"-7, GB

1шт.

8

7110

BOLT,Hex, 1 1/4" - 7 x 6", Gr 5

, Years: -01-JUN-07

1шт.

8

87635854

BOLT,Hex, 1 1/4" - 7 x 7", Gr 5

, Start Year: 01-JUL-07

1шт.

9

DR-494

BUSHING

support beam

2шт.

10

87501233

BRACKET

diagonal 12' wing left, Years: -01-FEB-07

1шт.

Shown

1шт.

10

87614514

BRACKET

diagonal 12' wing left, Start Year: 01-MAR-07

1шт.

Shown

1шт.

10

87501232

BRACKET

diagonal 12' wing right, Years: -01-FEB-07

1шт.

Not Shown

1шт.

10

87614510

BRACKET

diagonal 12' wing right, Start Year: 01-MAR-07

1шт.

Not Shown

1шт.

11

87500623

LINK

tension, 12' wing, Years: -01-FEB-07

1шт.

11

87610507

LINK

tension 12' wing, Start Year: 01-MAR-07

1шт.

12

87325446

WASHER,1.75" ID x 2.5" OD x 0.07" Thk

1 3/4" id 2 1/2" x 14 ga

4шт.

13

84086

LOCK WASHER,32.08mm ID x 45.47mm OD x 7.95mm Thk

1шт.

14

87323802

NUT

1 1/4"-12, GB

1шт.

15

11487

SNAP RING,#175, Ext

4шт.

16

38-13224

LOCK PIN,1/2" x 1 1/2", Slotted

2шт.

17

87420247

BUSHING,31.85mm ID x 38.19mm OD x 25.4mm L

gar mgl 1 1/2" x 1 1/4" x 1" polygon

3шт.

18

6637

BUSHING

composite 2" x 1 3/4" x 1"

4шт.

19

DR-681

PIN,44.57mm OD x 236.5mm L

rock shaft u-joint - 1 3/4" x 8 9/16"

2шт.

20

DR-711

SPACER

1 1/2" od x 3/32" thick x 7/8" long

1шт.

21

TC-500.08

DECAL

raised wings

1шт.

22

87501171

ROCKSHAFT

12' inner left

1шт.

Shown

1шт.

Includes three 6636, four 6637, TC-500.08, two 80714 and DR-711

1шт.

22

87501151

ROCKSHAFT

12' inner RH

1шт.

Includes three 6636, four 6637, TC-500.08, two 80714 and DR-711

1шт.

Not Shown

1шт.

23

DR-389

HINGE

universal 6" x 6" heavy

1шт.
