Запчасти Case IH ATX400 (1.200.1) - 12 FIVE SECTION INNER WING (REAR) - 51 MODEL SHOWN (12) - FRAME

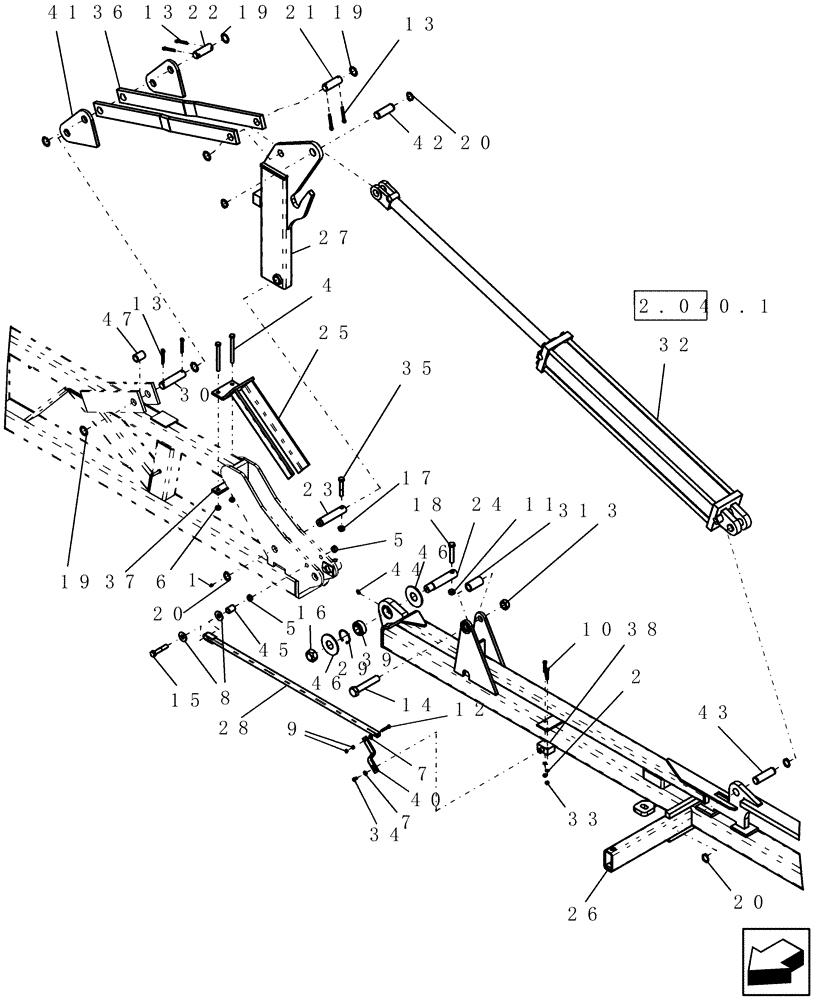

Схема запчастей Case IH ATX400 - (1.200.1) - 12 FIVE SECTION INNER WING (REAR) - 51 MODEL SHOWN (12) - FRAME
15
20
8
9
19
47
19
34
44
2.040.1
11
26
7
13
27
13
38
13
28
5
43
20
41
18
46
42
12
1
29
31
17
22
4
30
36
3
32
7
6
39
16
2
21
40
35
37
23
14
20
33
19
25
45
10
24
5
46

Артикул

Название

Примечание

Количество

1

87414

LUBE NIPPLE,1/4" - 28

1шт.

2

80681

LOCK WASHER,5/16"

2шт.

3

280286

NUT,1"-8, GB

1шт.

4

88576

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

2шт.

5

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

6

86992215

LOCK NUT,1/2"-13, GC

2шт.

7

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

8

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

2шт.

9

280129

NUT,1/4"-20

1шт.

10

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

2шт.

11

85700693

NUT,5/8" - 11, Gr C

1шт.

12

280164

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

1шт.

13

3566

COTTER PIN

5/16" x 2"

6шт.

14

413-1688

BOLT,Hex, 1" - 8 x 5-1/2", Gr 5

1шт.

15

280170

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8

1шт.

16

87323802

NUT

1 1/4"-12, GB

1шт.

17

280328

NUT,9/16"-12, GB

1шт.

18

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

1шт.

19

87304341

WASHER,1.27" ID x 1.75" OD x 0.03" Thk

6шт.

20

86625148

SNAP RING,#125, Ext

5шт.

21

87420396

PIN

1 1/4" dia x 3 7/8"

2шт.

22

87420419

LINK

rocker assy 51'

1шт.

23

87420523

PIN

lift lever 1 1/4" x 6 7/32"

1шт.

24

87420535

PIN,34.98mm OD x 177mm L

35 x 115 mm ul pln

1шт.

25

DR-685

SUPPORT

lift lever

1шт.

26

87500479

BAR

4th 51' inner wing left

1шт.

Shown

1шт.

Includes 87443834 and 370012

1шт.

26

87500473

BAR

4th 51' inner wing right

1шт.

Includes 87443834 and 370012

1шт.

Not Shown

1шт.

26

87500494

BAR

4th 57' inner wing left

1шт.

Includes 87443834 and 370012

1шт.

Not Shown

1шт.

26

87500478

BAR

4th 57' inner wing right

1шт.

Includes 87443834 and 370012

1шт.

Not Shown

1шт.

27

87444885

LEVER

large 100º

1шт.

28

DR-682

LINK

control

1шт.

29

370012

RING,M62, Internal

1шт.

30

87420395

PIN

1 1/4" dia x 5 1/2"

1шт.

31

87447455

ROLLER

control link 1" id x 1 1/2" od x 3" long

1шт.

32

87437294

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 1016mm Stroke

5" x 40" mon 3000 psi without pins

1шт.

Refer to 5" x 30" and 5" x 40" hydraulic cylinder - Monarch page for details

1шт.

32

87437294R

REMAN-HYD CYLINDER

ATX400 AIR DRILL BSN Y9S003001, 5" x 40" mon 3000 psi without pins, 12' FIVE SECTION INNER WING (REAR) - 51' MODEL SHOWN (7/06-7/08)

1шт.

32

87437294C

CORE-HYD CYLINDER

Return Number

1шт.

33

9635082

NUT,5/16" - 18, Gr 5

2шт.

34

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

35

87301770

BOLT,Hex, 9/16" - 12 x 3-1/4", Gr 8

9/16"-12 x 3 1/4" gr8

1шт.

36

87500597

LINK

wing lift 34 1/2"

2шт.

51' models

1шт.

36

87444883

LINK

wing lift pull

2шт.

57' models

1шт.

37

DR-684

PLATE

bolt 3/8" x 1 1/2" x 5"

1шт.

38

87501817

SHUT-OFF VALVE

1шт.

39

87443834

SPHERICAL BEARING,35mm ID x 62mm OD x 35mm W

spherical plane 35 mm

1шт.

40

87501833

LEVER

isolator valve

1шт.

41

87444884

LINK

wing lift rocker

2шт.

42

8973

PIN

cylinder, 1 1/4" x 3 3/8" ul with snap ring groove

1шт.

43

8974

PIN

cylinder, 1 1/4" x 4" ul with snap ring groove (#437327)mo

1шт.

44

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

45

5184K

KIT

Nylatron* bushing - 1" od x 7/64" x 1 13/32" long

1шт.

46

87440392

WASHER

indented 5000 wing

2шт.

47

87642646

BUSHING

1 1/2" od x 1 1/4" id x 1 1/2" long

1шт.

Выбрано товаров: 64
