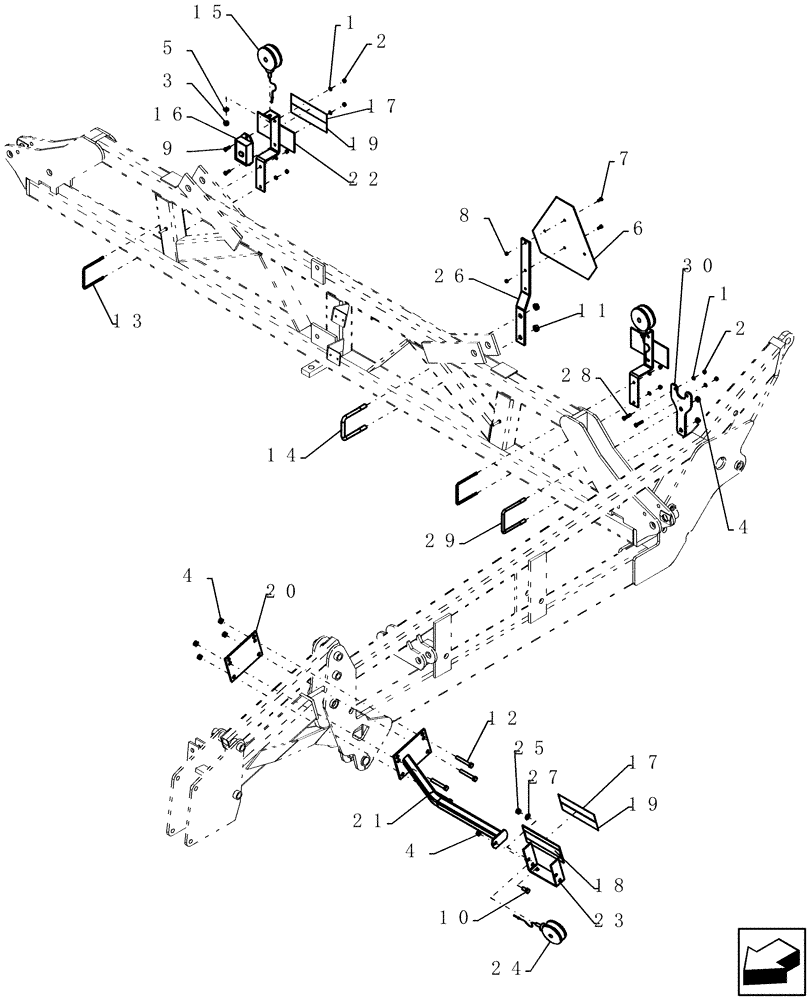

Запчасти Case IH ATX400 (3.020.1) - SAFETY LIGHTING BRACKETS Electrical/Electronics

1

80681

LOCK WASHER,5/16"

8шт.

2

9635082

NUT,5/16" - 18, Gr 5

8шт.

3

280431

NUT,1/2"-13, G5

2шт.

4

86992215

LOCK NUT,1/2"-13, GC

7шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

6

412742A1

WARNING SIGN

smv steel back 4 holes

1шт.

7

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

8

280129

NUT,1/4"-20

2шт.

9

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

10

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

11

85700693

NUT,5/8" - 11, Gr C

2шт.

12

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

4шт.

13

419990A1

U-BOLT

us 5/16" x 4 1/8" w x 4 3/4" d 3/4" thread

2шт.

14

3951

U-BOLT

us 5/8"-11 4 1/16" w 5 3/8" d GR5

1шт.

15

51200040

LIGHT

assy. stop tail/signal red

2шт.

Includes 6815 and 86537133

1шт.

15

6815

LENS

red

1шт.

15

86537133

BULB,C6, #1157, 12.8V

1шт.

15

84129422

BULB

Double Contact, 1156DC

1шт.

16

86561136

MODULE

implement lighting control

1шт.

17

22902

DECAL

retroreflective red 2" x 9"

3шт.

18

22903

DECAL

retroreflective amber 2" x 9"

1шт.

19

51200094

DECAL

fluorescent red orange

3шт.

20

ND-989

BACKING PLATE

universal

1шт.

21

ND-986V2

BRACKET

amber light

1шт.

22

NW-567

BRACKET

mount red light/decal

2шт.

23

NW-589

BRACKET

amber light / decal mount

1шт.

24

87564157

WARNING LIGHT

assembly amber

1шт.

25

280431

NUT,1/2"-13, G5

1шт.

26

ND-575

BRACKET

S.M.V sign

1шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

28

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

2шт.

29

412749A1

U-BOLT

us 1/2"-13 4 1/8" w 5 1/4" d G5 1 1/4" thread

1шт.

30

NW-430

BRACKET

plug receptacle

1шт.

100

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.
