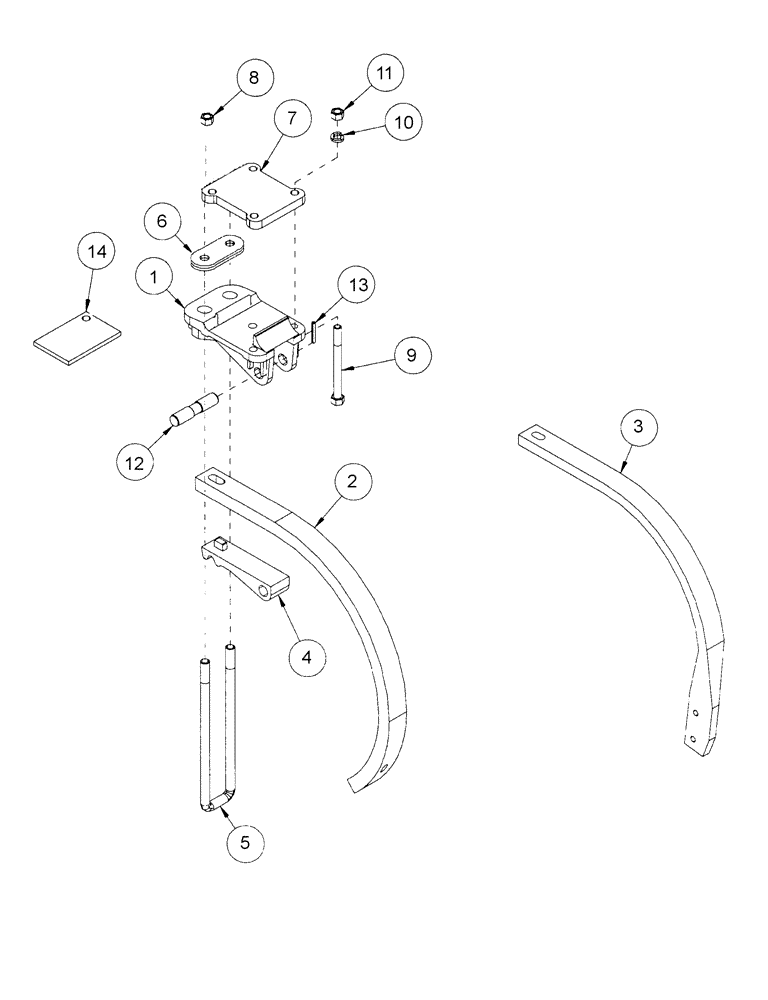

Запчасти Case IH ATX (10-10) - SOLID MOUNT SHANK ASSEMBLY, STANDARD "C" AND EDGE-ON SHANKS (09) - CHASSIS/ATTACHMENTS

0

312568A1

SHANK

/A SOLID 1.25" C-SH

1шт.

0

312567A1

SHANK

/A SOLID 1.25" E-ON

1шт.

1

305974A1

HOUSING

cushion shank

1шт.

2

1027750

SHANK

1-1/4" x 2" x 50-1/2 degree angle

1шт.

3

306350A1

SHANK

side mount 2" x 1 1/4"

1шт.

4

305973A1

SUPPORT

shank holder flipper

1шт.

5

312152A1

U-BOLT

BOLT "U" 3/4 NC X 2-7/8 X 4-3/8 inch

1шт.

6

312153A1

PLATE

CAP

1шт.

7

1021166

PLATE

cast bolting

1шт.

8

232-14412

NUT,3/4"-10, GB

2шт.

9

280293

BOLT,Hex, 5/8" - 11 x 7", Gr 5

2шт.

10

12034871

WASHER

5/8"

2шт.

11

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

12

1014837

LARGE PIN,25.4mm OD x 117.48mm L

PIN, LARGE 1" x 4.63" fl, Special c/w Holes

1шт.

13

87580

LOCK PIN,7.94mm OD x 50.8mm L, Slotted

2шт.

14

1019717

BAR

blank

1шт.
