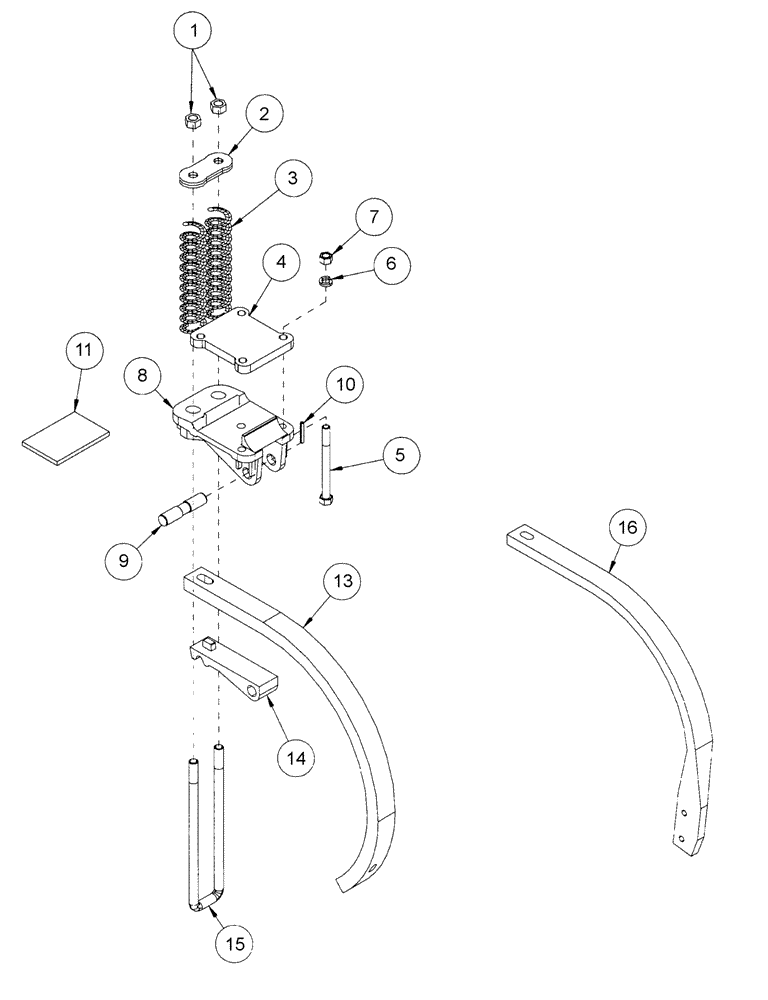

Запчасти Case IH ATX (10-08) - SPRING CUSHION SHANK ASSEMBLY, STANDARD AND EXTENDED LIFT SPRING CUSHION (09) - CHASSIS/ATTACHMENTS

1

280954

NUT,3/4"-10, G5

2шт.

2

1014836

CASTING

cap shank

1шт.

3

1014835

SPRING

C .468WR 2.28 OD 10.88 LG

2шт.

Standard

1шт.

3

1021261

SPRING

compression .531" wire 2.34" OD 18.5" long

2шт.

Extended

1шт.

4

1021166

PLATE

cast bolting

1шт.

5

280293

BOLT,Hex, 5/8" - 11 x 7", Gr 5

4шт.

6

12034871

WASHER

5/8"

4шт.

7

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

8

305974A1

HOUSING

cushion shank

1шт.

9

1014837

LARGE PIN,25.4mm OD x 117.48mm L

PIN, LARGE 1" x 4.63" fl, Special c/w Holes

1шт.

10

87580

LOCK PIN,7.94mm OD x 50.8mm L, Slotted

2шт.

11

1019717

BAR

blank

1шт.

Used as required in wheel tracks 1 or 2.

1шт.

13

1027750

SHANK

1-1/4" x 2" x 50-1/2 degree angle

1шт.

14

305973A1

SUPPORT

shank holder flipper

1шт.

15

1014826

U-BOLT

us 3/4"-10 2 3/16" w 14 1/2" d -G5 4" thread

1шт.

Standard

1шт.

15

1021260

U-BOLT

us 3/4"-10 2 3/16" w 22 1/4" d -G5 4" thread

1шт.

Extended

1шт.

16

306350A1

SHANK

side mount 2" x 1 1/4"

1шт.
