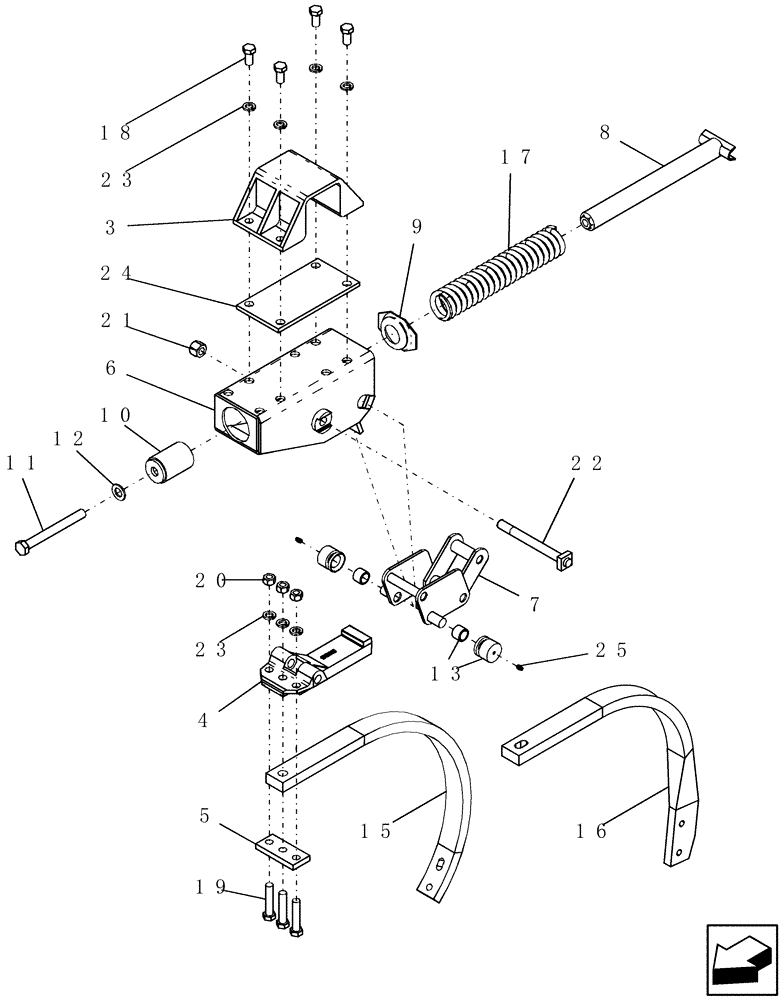

Запчасти Case IH ATX (10-06) - TRIP SHANK ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

1019565

SHANK

assy-trip

1шт.

Includes all parts, except ref #16

1шт.

2

1032154

SHANK

TRIP ASSEMBLY - 84 DEGREE

1шт.

Includes all parts, except ref #15

1шт.

3

1019990

SUPPORT

cast bracket c/w holes

1шт.

4

1019991

HOLDER

1" shank

1шт.

5

1019992

BAR

clamping

1шт.

6

1019993

HOUSING

trip

1шт.

7

1019994

CAM

shank

1шт.

8

1019995

GUIDE

spring

1шт.

9

1019996

CAP

spring

1шт.

10

1019927

SPACER

trip assembly

1шт.

11

113-2730

BOLT,Hex, 3/4" - 10 x 7", Gr 5, Full Thd

1шт.

12

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

13

1032344

SUPPORT

bushing

2шт.

15

1021309

SHANK

1" x 2" 53 degree angle

1шт.

16

306357A1

SHANK

side mount 1" x 2" short

1шт.

17

1019999

SPRING

compression .438" wire 2.68" OD 17.75" long

1шт.

18

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

4шт.

18

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

4шт.

18

88556

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 5

4шт.

19

87338

BOLT,Hex, 5/8" - 11 x 3", Gr 5

3шт.

20

280374

NUT,Hex, 5/8" - 11, Gr 5

3шт.

21

232-14412

NUT,3/4"-10, GB

1шт.

22

1021434

PIN

pivot 3/4" OD

1шт.

23

12034871

WASHER

5/8"

7шт.

24

1019908

LARGE PLATE

PLATE, LARGE spacer

1шт.

Used as required in wheel tracks 1 or 2.

1шт.

25

87414

LUBE NIPPLE,1/4" - 28

2шт.

25

290888A1

PLATE

spacer

1шт.

25

88062

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

4шт.
