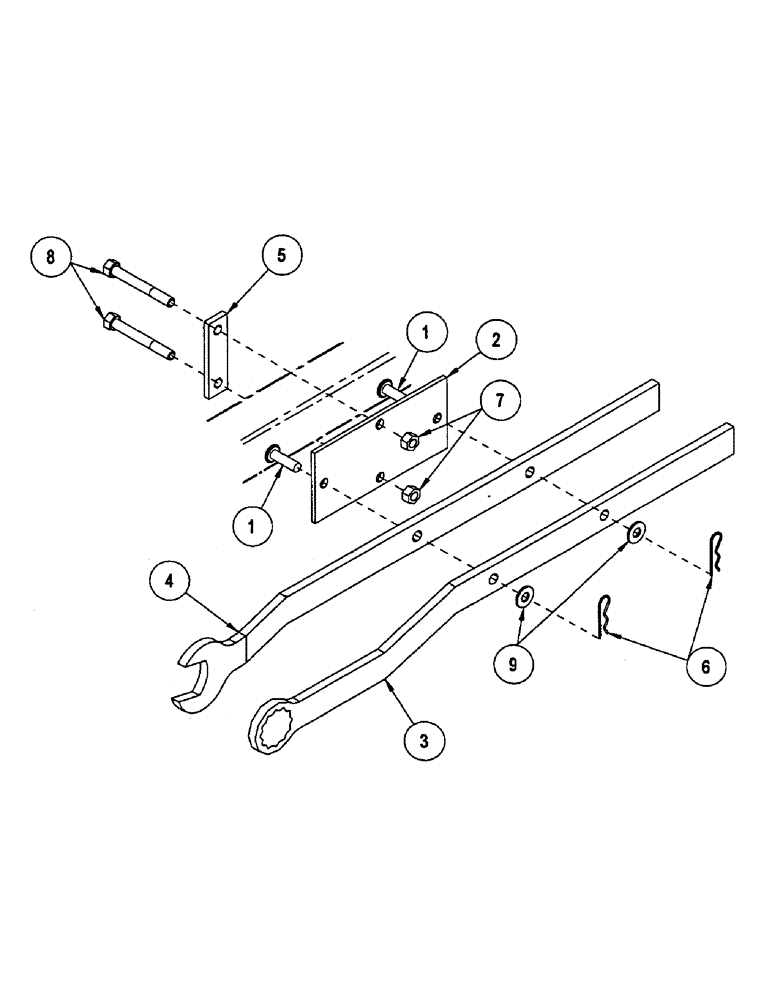

Запчасти Case IH ATX (10-04) - WALKBEAM WRENCH MOUNTING (09) - CHASSIS/ATTACHMENTS

1

1027168

CLEVIS PIN

0.38 X 1.25ZP

2шт.

2

1027167

PLATE

bolting 4" x 7" x 3/16" thick

1шт.

3

1027014

SPECIAL WRENCH

outside

1шт.

4

1027004

SPECIAL WRENCH

inside 1 1/2"

1шт.

5

1024345

LARGE PLATE

PLATE, LARGE bolting 1" x 3-7/16" x 1/4" thick

1шт.

6

1024044

HAIR PIN COTTER,5.2mm x 41mm L

.094" x 1.625"

2шт.

7

232-1446

NUT,3/8"-16, GC

2шт.

8

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

9

1014608

WASHER

SAE .38 ZP

2шт.
