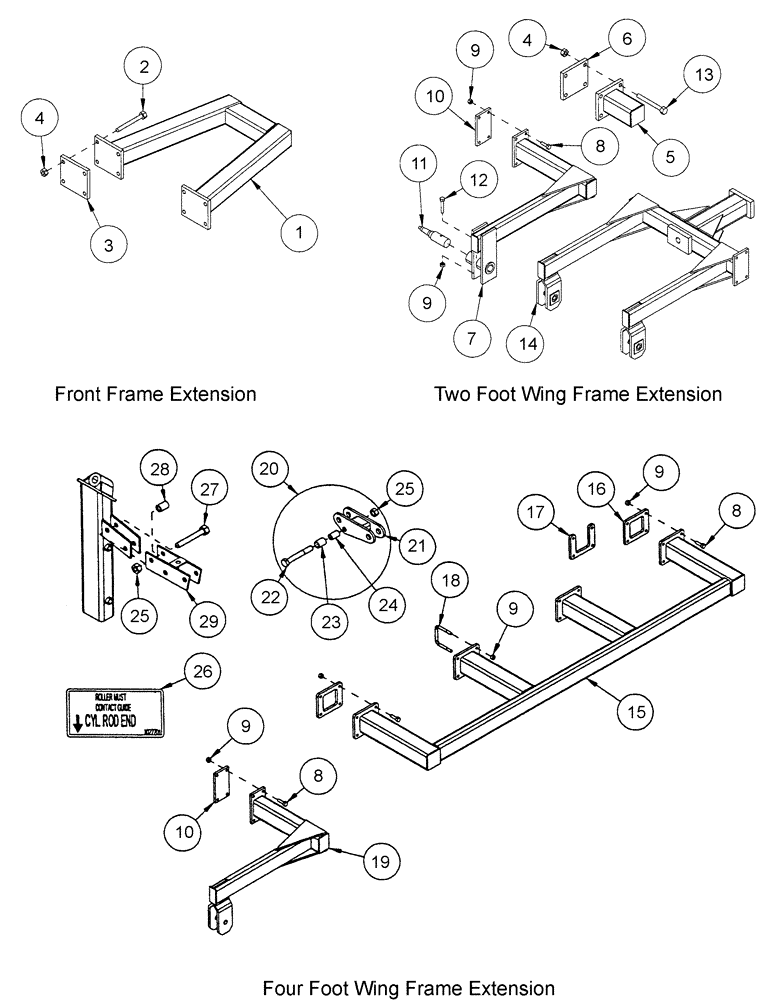

Запчасти Case IH ATX (10-02) - FRAME EXTENSIONS - OPTIONAL, FRONT FRAME EXTENSION, TWO & FOUR FOOT WING FRAME EXTENSION (09) - CHASSIS/ATTACHMENTS

1

1021778

FRAME

EXTENSION

1шт.

2

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

8шт.

3

1014919

PLATE

PLATE, LARGE bolt 3/4"-10 tk

2шт.

4

232-14412

NUT,3/4"-10, GB

12шт.

5

1021780

EXTENSION

stub

1шт.

10" spacing

1шт.

5

1021780

EXTENSION

stub

2шт.

12" spacing

1шт.

6

1018793

LARGE PLATE

PLATE, LARGE 3/4" thick bolting plate

1шт.

10" spacing

1шт.

6

1018793

LARGE PLATE

PLATE, LARGE 3/4" thick bolting plate

2шт.

12" spacing

1шт.

7

1027717

STRUT

SINGLE, RIGHT-HAND

1шт.

10" spacing

1шт.

7

1027716

STRUT

SINGLE, LEFT-HAND

1шт.

10" spacing

1шт.

7

1025720

STRUT

single RH

1шт.

7

1025719

STRUT

single LH

1шт.

8

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

1шт.

9

87530607

NUT

1/2"-13, GB

1шт.

10

1024965

PLATE

bolting 4" x 7-1/4" x 1/2" thick

4шт.

11

1025232

SPINDLE

S411 1.63" OD x 9" long

2шт.

12

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

2шт.

13

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

8шт.

13

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

8шт.

14

1030337

FRAME

4 wheel gang 12" spacing RH

1шт.

14

1030336

FRAME

4 wheel gang 12" spacing LH

1шт.

15

1032330

SUPPORT

WING EXTENSION, 4 RANK

2шт.

10" spacing

1шт.

15

1032295

SUPPORT

WING EXTENSION, 4 RANK

2шт.

12" spacing

1шт.

15

1032426

SUPPORT

WING EXTENSION, 3 RANK

2шт.

12" spacing

1шт.

16

1032292

LARGE PLATE

PLATE, LARGE BOLTING

4шт.

17

1032291

LARGE PLATE

PLATE, LARGE BOLTING

2шт.

18

1032294

U-BOLT

1/2 X 4-17/32 X 4 inch

4шт.

18

1016523

BOLT

U .50 X 4.53 X 3.

8шт.

19

1030340

SUPPORT

WHEEL GANG EXTENSION

1шт.

10" spacing

1шт.

19

1030339

SUPPORT

WHEEL GANG EXTENSION

1шт.

10" spacing

1шт.

19

1030342

SUPPORT

WHEEL GANG EXTENSION

1шт.

12" spacing

1шт.

19

1030341

SUPPORT

WHEEL GANG EXTENSION

1шт.

12" spacing

1шт.

20

1032343

FRAME

WING LINK ASSEMBLY - LIFT CYLINDER

2шт.

4010 drill - 5 plex

1шт.

77º wing fold

1шт.

10" spacing

1шт.

20

1032342

FRAME

WING LINK ASSEMBLY - LIFT CYLINDER

2шт.

4010 drill - 5 plex

1шт.

77º wing fold

1шт.

10" spacing

1шт.

20

1027761

LINK

WING LIFT CYLINDER LH

2шт.

80º wing fold

1шт.

4012 drill - 5 plex

1шт.

12" spacing

1шт.

20

1027760

LINK

WING LIFT CYLINDER RH

2шт.

80º wing fold

1шт.

4012 drill - 5 plex

1шт.

12" spacing

1шт.

21

1032341

FRAME

77 DEGREE

1шт.

10" spacing

1шт.

21

1027759

LINK

PNT

1шт.

12" spacing

1шт.

22

280256

BOLT,Hex, 1" - 8 x 7-1/2", Gr 5

1шт.

23

1027673

TUBE,32.56 mm ID, 38.1 mm OD

roller 1-1/2" OD

1шт.

24

1027674

TUBE

spacer

1шт.

25

232-14416

NUT,1"-8, GC

1шт.

26

1027701

DECAL

wing link

1шт.

27

280443

BOLT,Hex, 1" - 8 x 4 1/2", Gr 5

4шт.

4 rank drills

1шт.

12" spacing

1шт.

27

413-1688

BOLT,Hex, 1" - 8 x 5-1/2", Gr 5

4шт.

10" & 12" spacing

1шт.

3 rank drills

1шт.

28

1027776

SPACER

TUBE

4шт.

3 rank drills

1шт.

29

1032340

FRAME

EXTENSION

2шт.

4 rank drills

1шт.

10" spacing

1шт.

29

1033296

LOCK

EXTENSION

2шт.

3 rank drills

1шт.

12" spacing

1шт.

29

1027770

SUPPORT

EXTENSION/W WING LOCK

2шт.

4 rank drills

1шт.

12" spacing

1шт.
