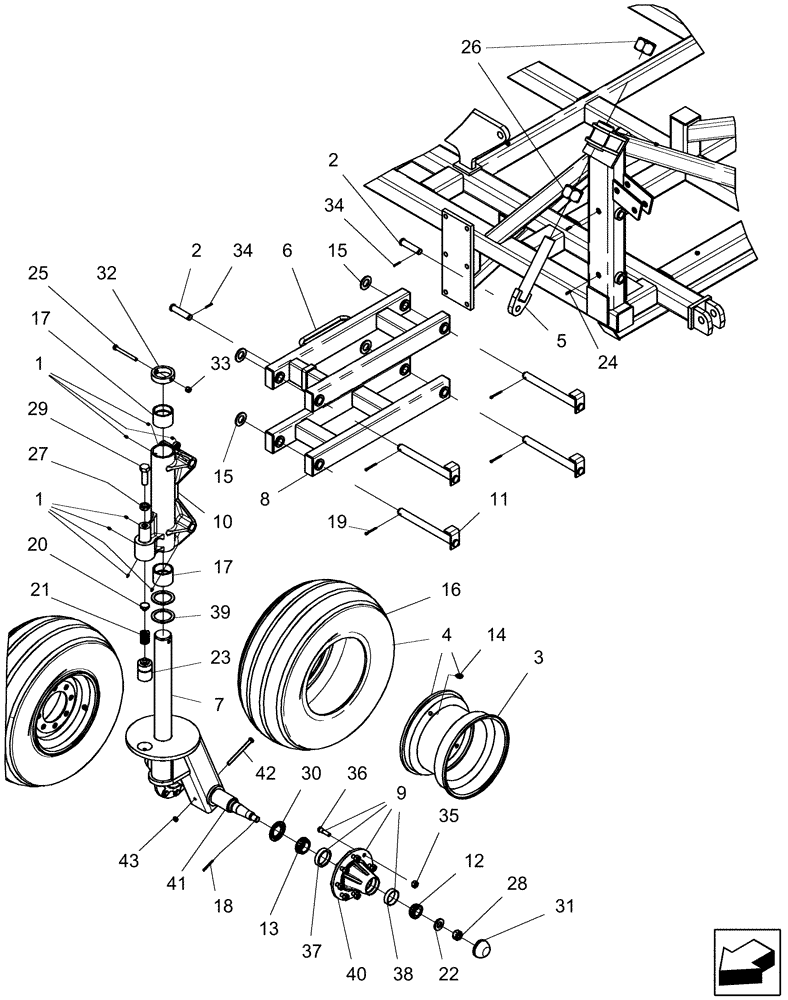

Запчасти Case IH ATX (09-60) - CASTER ASSEMBLY - HEAVY DUTY, MAIN FRAMES OVER 40 FEET (ASN CBJ0008250) (09) - CHASSIS

1

87414

LUBE NIPPLE,1/4" - 28

7шт.

2

87403990

HEADED PIN

1" x 4 1/4"

2шт.

3

1030721

RIM

15 x 10 8 hole +2 1/4" offset

2шт.

Included in 1030722

1шт.

4

1030722

WHEEL ASSY

15x10 8h with 31x13.5 10p hf-1(high floatation tire)

2шт.

Includes wheel, tire and valve stem

1шт.

5

1025478

ADJUSTMENT ROD

2" OD threaded

1шт.

6

1026756

ARM

top

1шт.

7

87501950

CASTER

heavy

1шт.

8

1020532

ARM

bottom

1шт.

9

1020697

HUB

H811-8 assembly with cups and studs

2шт.

Included in 1023734

1шт.

10

1033030

HOUSING

king pin heavy

1шт.

11

1020642

PIN

pivot 1-1/4" OD

4шт.

12

86516471

BEARING CONE,34.92mm ID x 24.61mm W

#25877

2шт.

Included in 1023734

1шт.

13

512725

BEARING CONE,45.62mm ID x 25.4mm W

#25590

2шт.

Included in 1023734

1шт.

14

1018564

VALVE

tire stem

2шт.

Included in 1030722

1шт.

15

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

4шт.

16

1030720

TYRE/TIRE

31 x 13 1/2" - 15 10pr hf-1 high floatation, static load r

2шт.

Included in 1030722

1шт.

17

1020501

BUSHING,76.68mm ID x 89.03mm OD x 63.5mm L

bronze 3" id x 3 1/2" od 2 1/2" lg, SAE 660

2шт.

Included in 1033030

1шт.

18

87400

COTTER PIN,3/16" x 2"

2шт.

19

88182

COTTER PIN,1/4" OD x 2" L

4шт.

20

1033023

BAR

detent guide

1шт.

21

1033024

SPRING

compression .38" wire 1 1/2" OD 2" long

1шт.

22

1013475

WASHER

1.06ID 2.1 .25 YZD

2шт.

23

1033022

BAR

friction plunger

1шт.

24

80720

LUBE NIPPLE,30 Degree, 1/8"-27 NPT x .91" lg

4шт.

25

87997

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1шт.

26

425-1632

NUT,2"-4, G5, Hvy

2шт.

27

87553819

JAM NUT

1"-8 Hex, Jam

1шт.

28

425-1316

NUT,1"-14, G5

2шт.

29

1033038

BOLT

1"-8 x 3", G5 all-thread

1шт.

30

491715R91

OIL SEAL

oil SE16

2шт.

Included in 1023734

1шт.

31

87505192

HUB CAP

dc17

2шт.

32

1020639

RETAINER

king pin

1шт.

33

87530607

NUT

1/2"-13, GB

1шт.

34

38-11424

LOCK PIN,7/32" x 1 1/2", Slotted

2шт.

35

1016177

WHEEL NUT

wheel 9/16"-18 CTD# WB40

16шт.

Included in 1023734

1шт.

36

1016176

STEP BOLT

.563 UNF GR5 WB41 YZD, 2.25 LONG, 1.625 THREAD

16шт.

Included in 1020697

1шт.

37

86900365

BEARING CUP,82.96mm OD x 19.05mm W

#25520

2шт.

Included in 1020697

1шт.

38

86516462

BEARING CUP,73.03mm OD x 19.05mm W

#25821

2шт.

Included in 1020697

1шт.

39

1020512

THRUST WASHER

3.04 ID 4.0 OD .188 HRD RC 50-60

2шт.

40

1023734

HUB

HA811-8 assembly with cups and studs

2шт.

41

1020638

SPINDLE

dual 2-3/4" x 26-3/8" long

1шт.

42

86000020

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1шт.

43

86992215

LOCK NUT,1/2"-13, GC

1шт.
