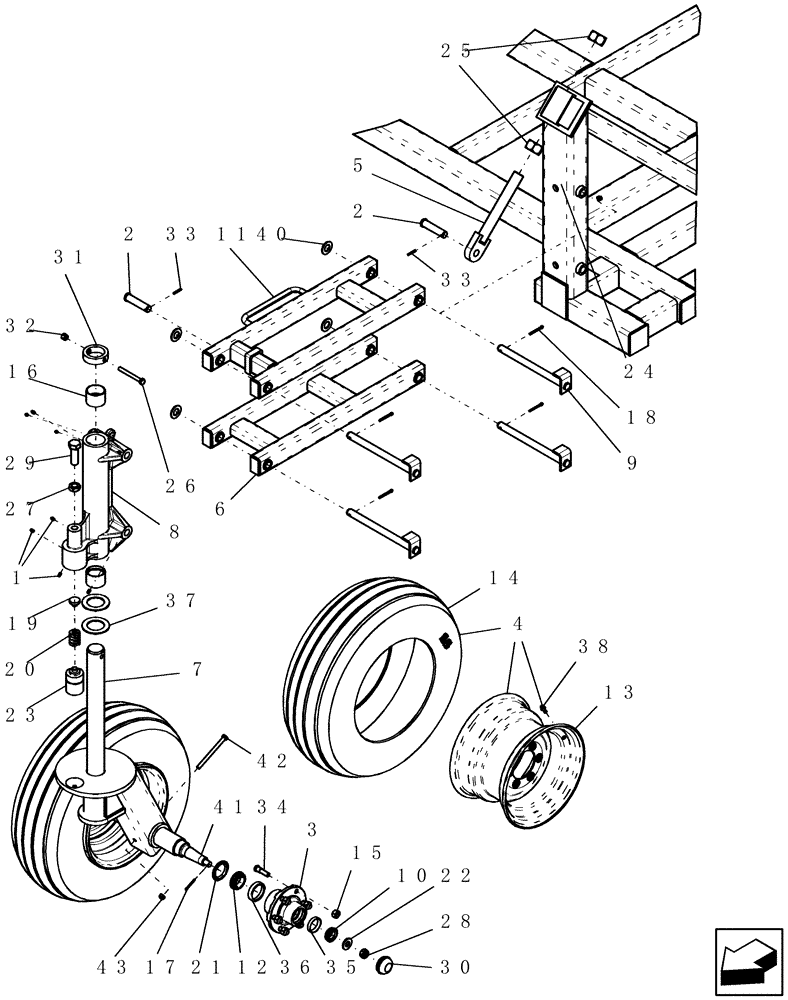

Запчасти Case IH ATX (09-56) - CASTER ASSEMBLY - STANDARD (ASN CBJ0008250) (09) - CHASSIS

1

87414

LUBE NIPPLE,1/4" - 28

7шт.

2

87403990

HEADED PIN

1" x 4 1/4"

2шт.

3

1023733

BEARING HOUSING

H630-2 assembly with cups and studs

2шт.

Includes 1016175, 1013560, 1012374, 651818R91 and 663557R91

1шт.

3

1016175

HUB

H630-2 with cups and studs

2шт.

4

1030719

WHEEL ASSY

MOUNTED 11L X14 6H 8PR I-1

2шт.

Includes 1030718, 1014152, 810769C1 and sealant

1шт.

5

1017152

IDLER WHEEL

adjustment, caster

1шт.

6

1018415

ARM

bottom

1шт.

7

87501800

CASTER

dual wheel

1шт.

8

1033027

HOUSING

king pin

1шт.

9

1016941

PIN

pivot 1" OD

4шт.

10

36726

BEARING CONE,31.75mm ID x 16.76mm W

#LM67048

2шт.

11

1026754

ARM

top

1шт.

12

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

Cup & Cone

2шт.

13

481344R91

WHEEL

14" x 8"

2шт.

14

1030718

TYRE/TIRE

11L-14 8PR I-1 rib

2шт.

15

1016177

WHEEL NUT

wheel 9/16"-18 CTD# WB40

12шт.

16

1014163

BRONZE BUSHING,63.96mm ID x 69.95mm OD x 50.8mm L

2 3/4" od x 2 1/2" id x 2" long, SAE 660

2шт.

17

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

18

88182

COTTER PIN,1/4" OD x 2" L

4шт.

19

1033023

BAR

detent guide

1шт.

20

1033024

SPRING

compression .38" wire 1 1/2" OD 2" long

1шт.

21

62610C1

OIL SEAL,57.15mm ID x 77.88mm OD x 6.35mm Thk

hub oil fed mog #473473

2шт.

22

826271

WASHER

13/16"id 1 3/4"od 3/16" pln

2шт.

23

1033022

BAR

friction plunger

1шт.

24

80720

LUBE NIPPLE,30 Degree, 1/8"-27 NPT x .91" lg

2шт.

25

425-1024

NUT,1 1/2"-6, G5

2шт.

26

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1шт.

27

87553819

JAM NUT

1"-8 Hex, Jam

1шт.

28

86632554

SLOTTED NUT,3/4"-16, G5

2шт.

29

1033038

BOLT

1"-8 x 3", G5 all-thread

1шт.

30

87505175

DUST CAP

H517 & H611

2шт.

31

1014161

RETAINER

king pin

1шт.

32

87530607

NUT

1/2"-13, GB

1шт.

33

38-11424

LOCK PIN,7/32" x 1 1/2", Slotted

2шт.

34

1016176

STEP BOLT

.563 UNF GR5 WB41 YZD, 2.25 LONG, 1.625 THREAD

12шт.

35

36723

BEARING CUP,59.16mm OD x 11.81mm W

#LM67010

2шт.

36

663558R1

BEARING CUP

#LM501310

2шт.

37

1014154

THRUST WASHER

2.5 ID 4OD .188 YZD

2шт.

38

810768C1

VALVE

tire stem VS/936

2шт.

39

1033093

SEALANT

Tire anti-puncture 1 liter bottle

1шт.

Not Shown

1шт.

39

1033092

SEALANT

tire

1шт.

Not Shown

1шт.

40

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

4шт.

41

1015277

SPINDLE

2.75 X 26.38 6-BOLT

1шт.

42

86000020

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1шт.

43

86992215

LOCK NUT,1/2"-13, GC

1шт.
