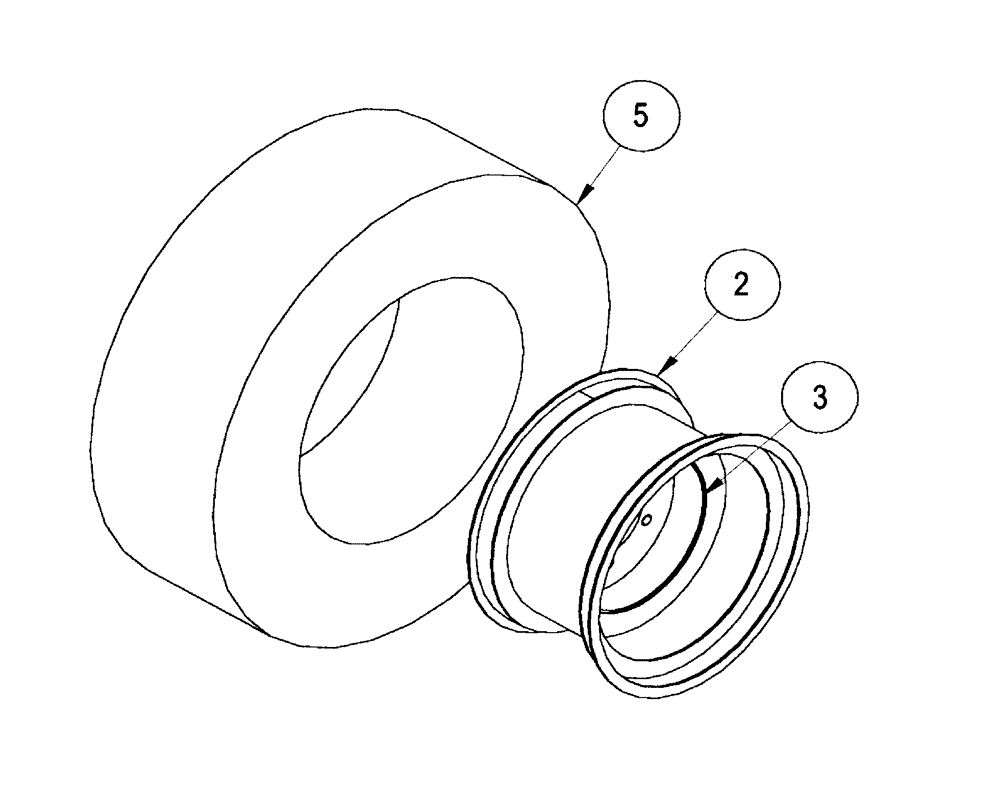

Запчасти Case IH ATX (09-52) - PACKER WHEELS AND TIRES, MOUNTED & UNMOUNTED (09) - CHASSIS

1

REF

INSTRUCTION

WHEEL ASSEMBLY - COMPLETE (SEE PACKER TIRES - MOUNTED BELOW FOR AVAILABLE SIZES, REF #1)

1шт.

1

1032384

TIRE TUBE

6.70-15 4PR 4H With Tube

1шт.

1

1032383

TIRE TUBE

5.90-15 4PR 4H With Tube

1шт.

1

290720A1

WHEEL ASSY

mounted 6.50-15 4h with seal packer tire only, titan

1шт.

2

1030722

WHEEL ASSY

15x10 8h with 31x13.5 10p hf-1(high floatation tire)

1шт.

Included in 1032383

1шт.

Included in 1032384

1шт.

2

1030857

WHEEL

15 x 4.5k 4-hole with vg

1шт.

Included in 290720A1

1шт.

3

810769C1

VALVE

tire stem VS/936

1шт.

Included in 290720A1

1шт.

4

1033093

SEALANT

Tire anti-puncture 1 liter bottle

1шт.

Included in 290720A1

1шт.

Not Shown

1шт.

4

1033092

SEALANT

tire

1шт.

Included in 290720A1

1шт.

Not Shown

1шт.

4

1025722

TIRE TUBE

FR15 Radial

1шт.

Included in 1032383

1шт.

Included in 1032384

1шт.

5

REF

INSTRUCTION

TIRE - PACKER, ORDER FROM MACHINERY PRICE LIST (SEE PACKER TIRES - UNMOUNTED BELOW FOR AVAILABLE SIZES, REF#5)

1шт.

5

87504089

TYRE/TIRE

6.70-15sl 4pr

1шт.

Included in 1032384

1шт.

Install using 1.2 liter (40 oz.) of sealant

1шт.

5

87504089

TYRE/TIRE

6.70-15sl 4pr

1шт.

Included in 87504096

1шт.

Install using 1.2 liter (40 oz.) of sealant

1шт.

5

1019890

TYRE/TIRE

5.90 x 15 4PR I-1 Rib

1шт.

Included in 1032383

1шт.

5

290719A1

TYRE/TIRE

6 1/2" x 15 4 pr i-1 1400lbs @40 psi, titan

1шт.

Included in 290720A1

1шт.

Install using 1.2 liter (40 oz.) of sealant

1шт.
