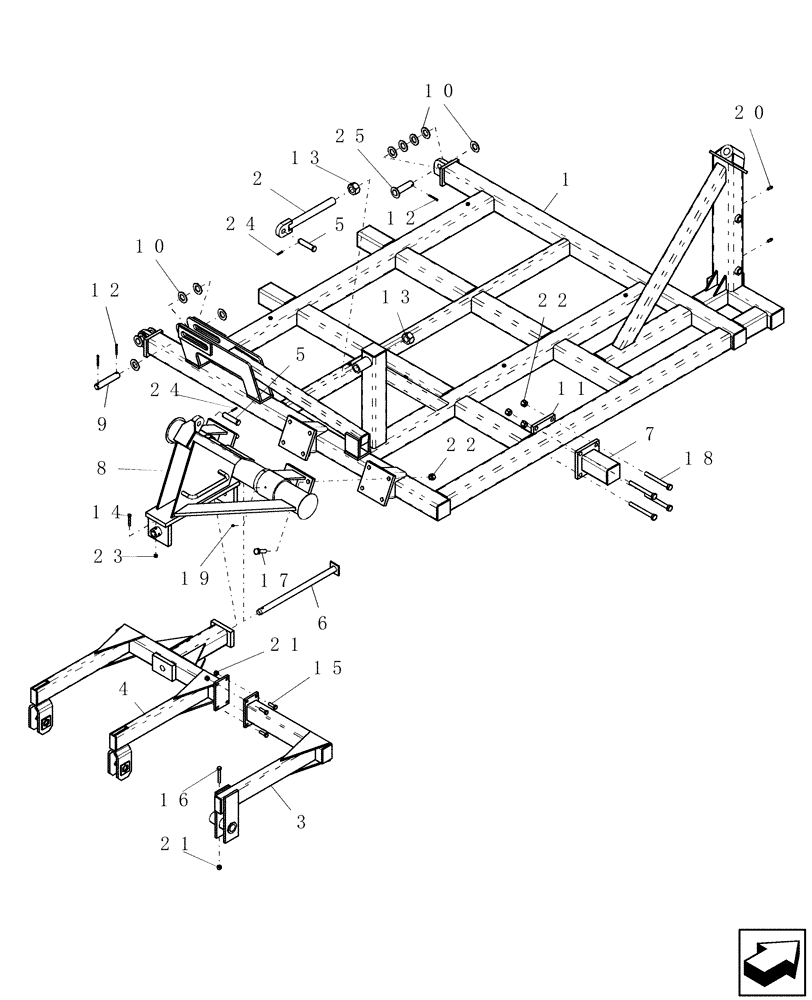

Запчасти Case IH ATX (09-46) - WING FRAMES (OUTER) WITH ROCKSHAFT & WHEEL GANGS, 5012 - 4 RANK, 5 PLEX (09) - CHASSIS

1

312550A1

FRAME

outer wing RH AT4-4812

1шт.

Shown

1шт.

ATX4-5012

1шт.

1

312549A1

FRAME

outer wing LH AT4-4812

1шт.

ATX4-5012

1шт.

2

1017157

ADJUSTMENT ROD

rockshaft 1-1/2" OD threaded

1шт.

3

1025720

STRUT

single RH

1шт.

Shown

1шт.

3

1025719

STRUT

single LH

1шт.

4

1030337

FRAME

4 wheel gang 12" spacing RH

1шт.

Shown

1шт.

4

1030336

FRAME

4 wheel gang 12" spacing LH

1шт.

5

87403990

HEADED PIN

1" x 4 1/4"

2шт.

6

1017002

PIN

pivot 1-1/4" OD

1шт.

7

1021780

EXTENSION

stub

1шт.

8

1016968

SUPPORT

rockshaft wing

1шт.

9

1025788

PIN

wing lift 1.25" OD x 6.65" long

1шт.

10

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

14шт.

11

1018793

LARGE PLATE

PLATE, LARGE 3/4" thick bolting plate

1шт.

12

88182

COTTER PIN,1/4" OD x 2" L

4шт.

13

425-1024

NUT,1 1/2"-6, G5

2шт.

14

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

15

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

4шт.

16

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

1шт.

17

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

8шт.

18

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

4шт.

19

87414

LUBE NIPPLE,1/4" - 28

2шт.

20

80720

LUBE NIPPLE,30 Degree, 1/8"-27 NPT x .91" lg

2шт.

21

87530607

NUT

1/2"-13, GB

5шт.

22

232-14412

NUT,3/4"-10, GB

12шт.

23

232-1446

NUT,3/8"-16, GC

1шт.

24

38-11424

LOCK PIN,7/32" x 1 1/2", Slotted

2шт.

25

1015235

PIN

1 1/4" od hinge

2шт.
