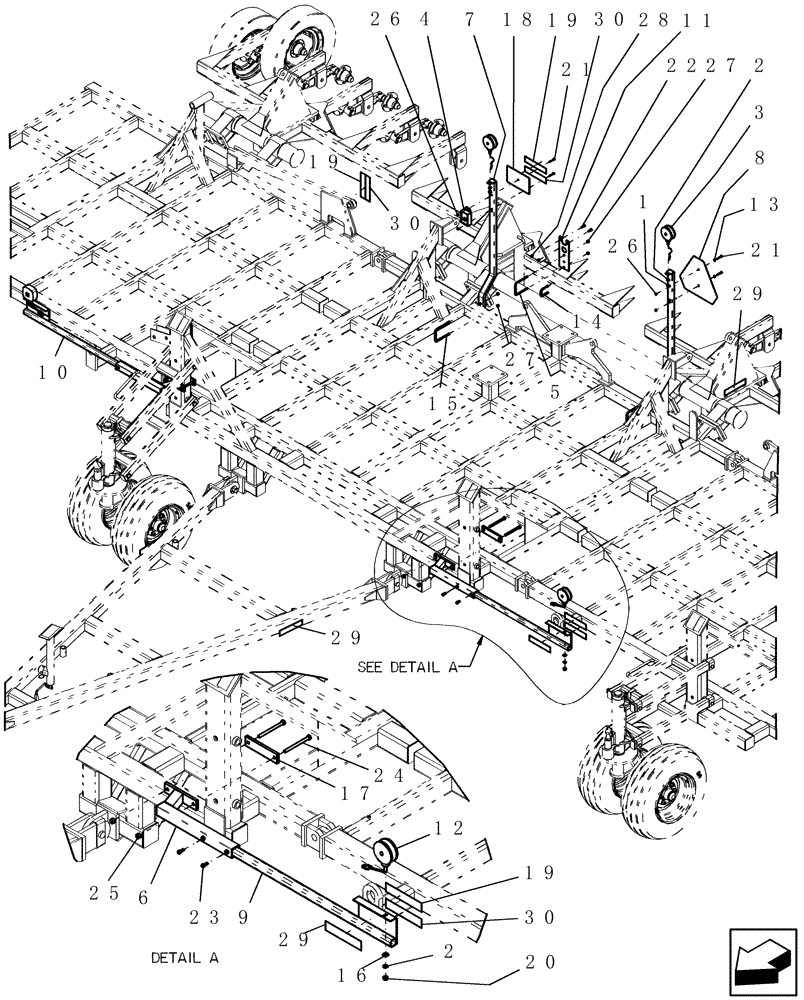

Запчасти Case IH ATX (04-02) - TRANSPORT LIGHTING - MACHINES 40 FT. AND SMALLER (04) - ELECTRICAL SYSTEMS

1

280431

NUT,1/2"-13, G5

2шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

3

51200040

LIGHT

assy. stop tail/signal red

2шт.

Includes 6815 and 86537133

1шт.

3

6815

LENS

red

2шт.

3

86537133

BULB,C6, #1157, 12.8V

2шт.

3

84129422

BULB

Double Contact, 1156DC

1шт.

4

86561136

MODULE

implement lighting control

1шт.

5

1030501

U-BOLT

us 3/8"-16 x 4" x 5" zp 1" of thread

1шт.

6

425163A1

TUBE

mount

2шт.

7

425168A1

TUBE

mount

2шт.

8

86547710

EMBLEM

KIT SMV

1шт.

9

425159A1

BRACKET

transport marking LH

1шт.

10

412948A1

BRACKET

transport marking RH

1шт.

11

425199A1

PLATE

1шт.

12

87564157

WARNING LIGHT

assembly amber

2шт.

13

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

14

425254A1

U-BOLT

us 3/8"-16 x 2 1/16" w x 2 13/16" d, G5, 1 1/2" thread

1шт.

15

425253A1

U-BOLT

us 3/8"-16 4.06 wide x 5.68 deep, G5

2шт.

16

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

17

87439986

PLATE

bolt 1/2" dia x 2 6 9/16" C-C

2шт.

18

425165A1

PLATE, LOCKING

bolting

1шт.

19

311865A1

REFLECTOR

fluorescent orange

6шт.

20

280963

NUT,Nut, 1/2-20 GR 5 ZND

2шт.

21

280164

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

4шт.

22

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

23

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

24

86000020

BOLT,Hex, 1/2" - 13 x 6", Gr 5

4шт.

25

87530607

NUT

1/2"-13, GB

46шт.

26

86625061

NUT,1/4"-20, GB

4шт.

27

231-1446

NUT,3/8" - 16, Gr 5

6шт.

28

86050277

NUT,5/16"-18, GB

2шт.

29

311864A1

REFLECTOR

Retroreflective Amber 1.375" x 7.25"

6шт.

30

311863A1

REFLECTOR

Retroreflective Red

5шт.

31

425448A1

HARNESS

lighting seed tool 11.6 m

1шт.

Not Shown

1шт.
