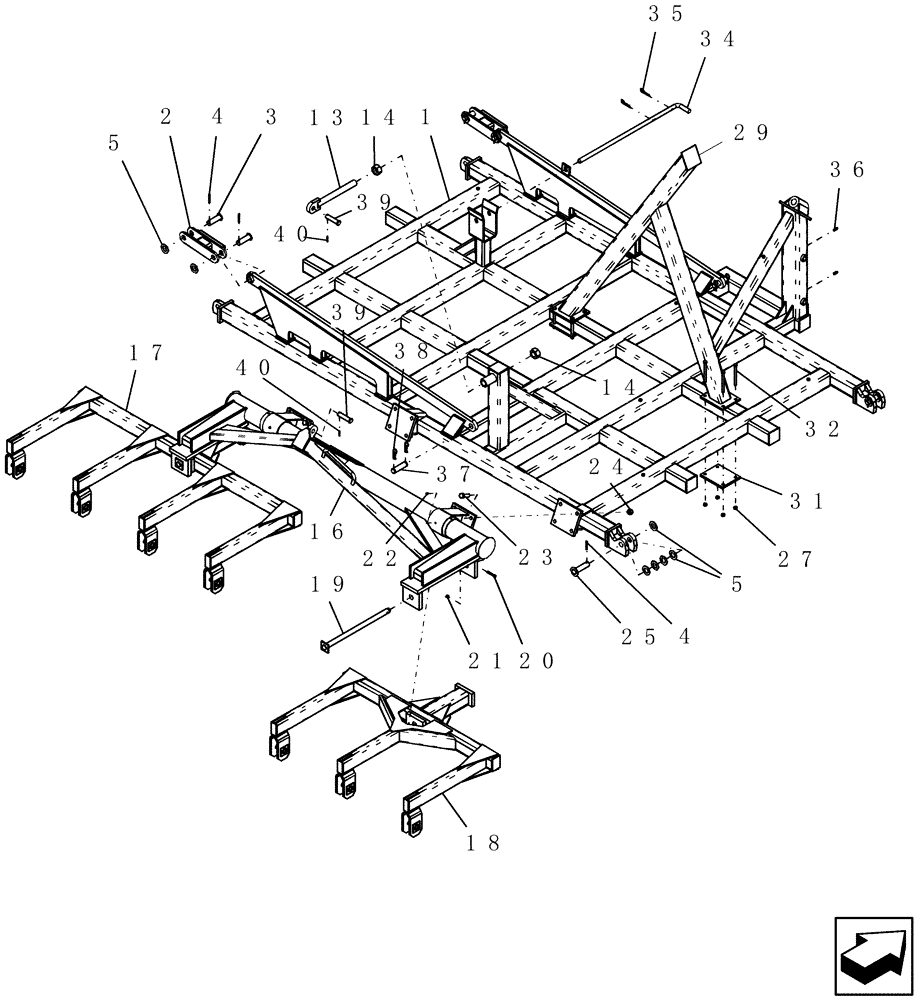

Запчасти Case IH ATX (09-38) - WING FRAME (INNER) WITH ROCKSHAFT & WHEEL GANGS, 6012 DRILL - 3 & 4 RANK (09) - CHASSIS

1

1025534

FRAME

inner wing RH 6012-4R

1шт.

Shown

1шт.

1

1025535

FRAME

inner wing LH 6012-4R

1шт.

1

1025441

FRAME

inner wing RH 6012-3R

1шт.

1

1025440

FRAME

inner wing LH 6012-3R

1шт.

2

1025413

LINK

wing lift cylinder

2шт.

3

1025608

PIN

cylinder link 1-1/4" OD

4шт.

4

88182

COTTER PIN,1/4" OD x 2" L

8шт.

5

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

24шт.

13

1017157

ADJUSTMENT ROD

rockshaft 1-1/2" OD threaded

1шт.

14

425-1024

NUT,1 1/2"-6, G5

2шт.

16

1025446

ROCKSHAFT

RH

1шт.

Shown

1шт.

16

1025445

ROCKSHAFT

LH

1шт.

17

1029699

FRAME

8 wheel gang 12" spacing

1шт.

18

1029700

FRAME

6 wheel gang 12" spacing

1шт.

19

1017002

PIN

pivot 1-1/4" OD

2шт.

20

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

21

232-1446

NUT,3/8"-16, GC

2шт.

22

87414

LUBE NIPPLE,1/4" - 28

2шт.

23

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

8шт.

24

232-14412

NUT,3/4"-10, GB

8шт.

25

1015235

PIN

1 1/4" od hinge

4шт.

27

280431

NUT,1/2"-13, G5

8шт.

29

1025449

STOP

tower

1шт.

31

1020965

PLATE

bolting 6-1/2" x 8" x 1/2" thick

2шт.

32

86000020

BOLT,Hex, 1/2" - 13 x 6", Gr 5

8шт.

34

1024226

PIN

lock bent 1" OD

1шт.

35

87045537

HAIR PIN COTTER

.148 x 3 5/16"

2шт.

36

80720

LUBE NIPPLE,30 Degree, 1/8"-27 NPT x .91" lg

2шт.

37

87403614

HEADED PIN

cylinder 1 1/4" dia 4 ul

2шт.

38

350109A1

HAIR PIN COTTER

.177" x 3 1/4"

4шт.

39

87403990

HEADED PIN

1" x 4 1/4"

2шт.

40

38-11424

LOCK PIN,7/32" x 1 1/2", Slotted

2шт.
