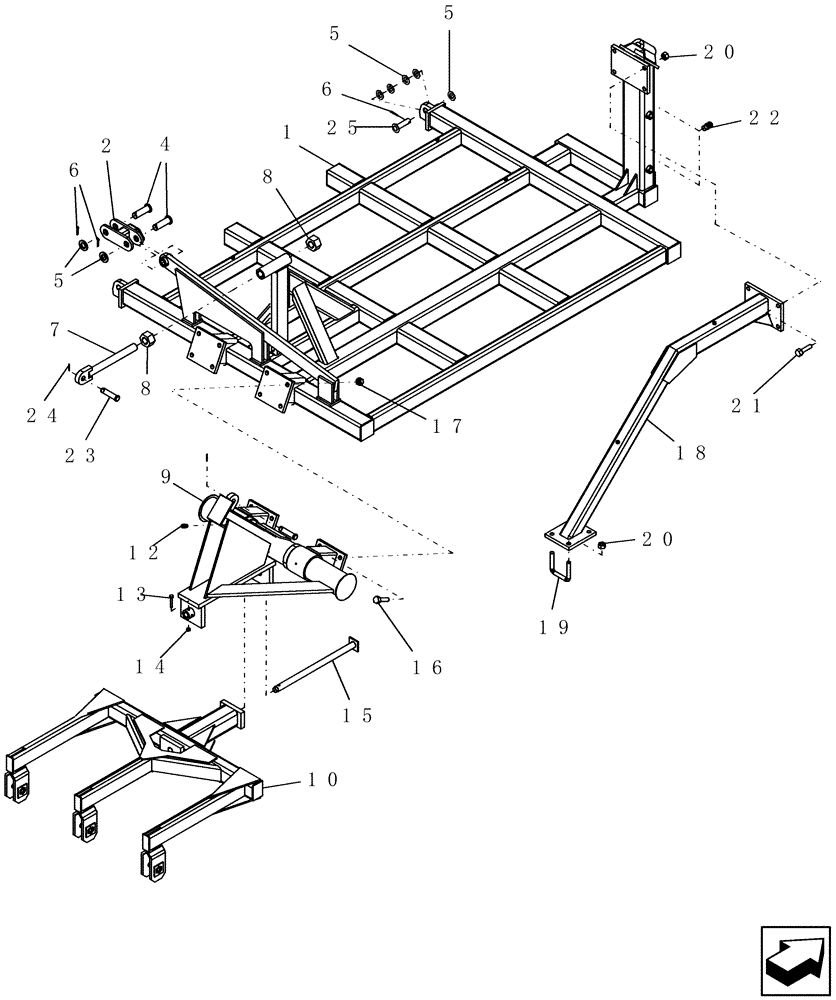

Запчасти Case IH ATX (09-30) - WING FRAMES (OUTER) WITH ROCKSHAFT & WHEEL GANGS, 4010, 4 RANK, 5 PLEX (09) - CHASSIS

1

1027370

FRAME

outer wing RH 4010-4R/5P

1шт.

Shown

1шт.

1

1027369

FRAME

outer wing LH 4010-4R/5P

1шт.

Not Shown

1шт.

2

1019773

LINK

wing frame

1шт.

4

1025608

PIN

cylinder link 1-1/4" OD

2шт.

5

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

14шт.

6

88182

COTTER PIN,1/4" OD x 2" L

4шт.

7

1017157

ADJUSTMENT ROD

rockshaft 1-1/2" OD threaded

1шт.

8

425-1024

NUT,1 1/2"-6, G5

2шт.

9

1017838

ROCKSHAFT

wing

1шт.

10

1029697

FRAME

6 wheel gang 10" spacing

1шт.

12

87414

LUBE NIPPLE,1/4" - 28

2шт.

13

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

14

232-1446

NUT,3/8"-16, GC

1шт.

15

1017002

PIN

pivot 1-1/4" OD

1шт.

16

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

8шт.

17

232-14412

NUT,3/4"-10, GB

8шт.

18

1027655

BRACKET

Brace wing support tower

1шт.

19

7818

U-BOLT

us 3/4"-10 4 1/32" w 5 5/8" d GR5

2шт.

20

231-42412

NUT,3/4"-10, GB

8шт.

21

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

22

80720

LUBE NIPPLE,30 Degree, 1/8"-27 NPT x .91" lg

2шт.

23

87403990

HEADED PIN

1" x 4 1/4"

2шт.

24

38-11424

LOCK PIN,7/32" x 1 1/2", Slotted

1шт.

25

1015235

PIN

1 1/4" od hinge

2шт.
