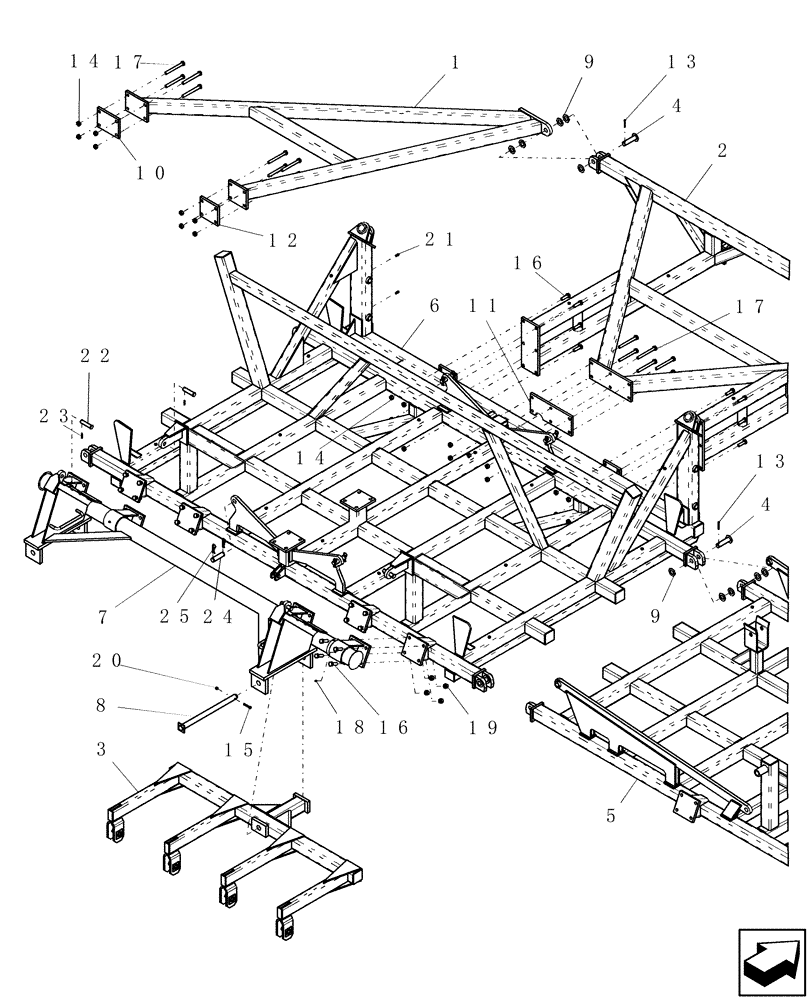

Запчасти Case IH ATX (09-22) - MAIN FRAME WITH ROCKSHAFT & WHEEL GANGS, 6012 DRILLS - 3 & 4 RANK (09) - CHASSIS

1

1024279

BRACKET

Brace wing LH

1шт.

2

1024322

FRAME

extension

1шт.

3

1030041

FRAME

8 wheel gang 12" spacing

1шт.

4

1015235

PIN

1 1/4" od hinge

4шт.

5

1025534

FRAME

inner wing RH 6012-4R

1шт.

6

1025533

FRAME

main 6012-4R

1шт.

7

1025582

ROCKSHAFT

main

1шт.

8

1025579

PIVOT PIN

1-1/2" OD

1шт.

9

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

20шт.

10

1020892

PLATE

bolting 7" x 9" x 3/4" thick

3шт.

11

1023821

PLATE

bolting 7" x 17-1/2" x 1/2" thick

1шт.

12

1024260

PLATE

bolting 7" x 7-1/2" x 3/4" thick

3шт.

13

88182

COTTER PIN,1/4" OD x 2" L

4шт.

14

280954

NUT,3/4"-10, G5

26шт.

15

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

16

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

28шт.

17

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

14шт.

18

87414

LUBE NIPPLE,1/4" - 28

4шт.

19

232-14412

NUT,3/4"-10, GB

16шт.

20

232-1446

NUT,3/8"-16, GC

1шт.

21

80720

LUBE NIPPLE,30 Degree, 1/8"-27 NPT x .91" lg

6шт.

22

87403990

HEADED PIN

1" x 4 1/4"

4шт.

23

38-11424

LOCK PIN,7/32" x 1 1/2", Slotted

4шт.

24

87403614

HEADED PIN

cylinder 1 1/4" dia 4 ul

4шт.

25

350109A1

HAIR PIN COTTER

.177" x 3 1/4"

8шт.
