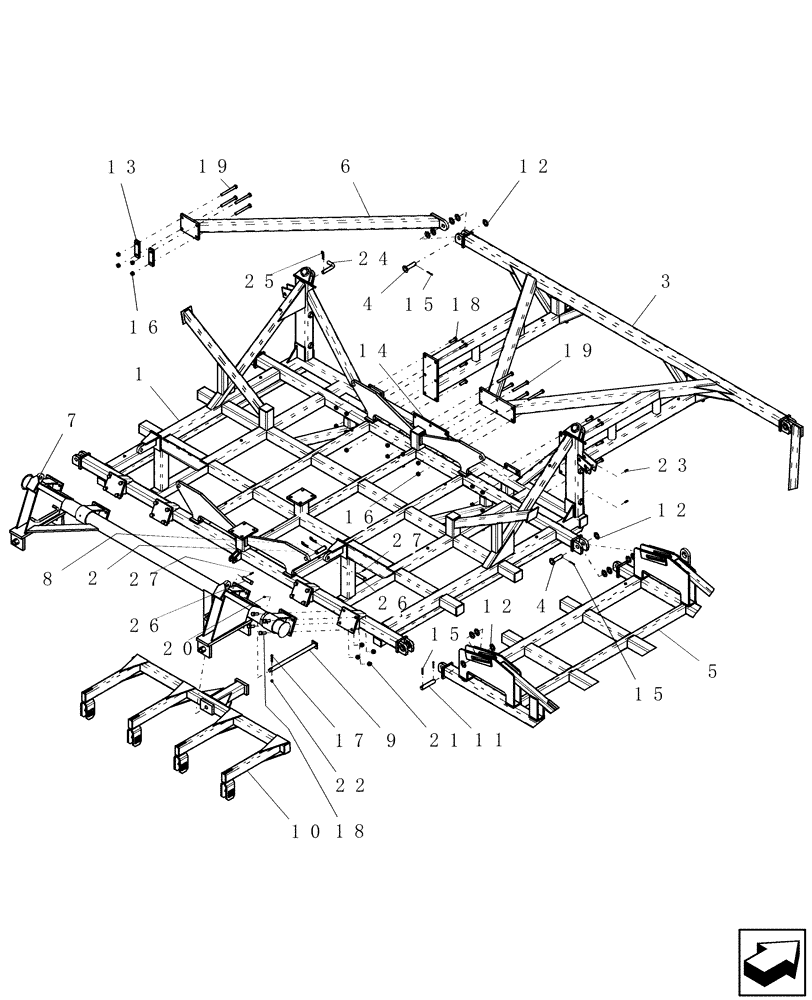

Запчасти Case IH ATX (09-14) - MAIN FRAME WITH ROCKSHAFT & WHEEL GANGS, 4710 & 5010 DRILLS - 4 RANK (09) - CHASSIS

1

312558A1

FRAME

main AT4-4710

1шт.

1

350690A1

FRAME

main AT4-5010

1шт.

2

87403614

HEADED PIN

cylinder 1 1/4" dia 4 ul

4шт.

3

1024543

FRAME

extension

1шт.

4

1015235

PIN

1 1/4" od hinge

4шт.

5

312556A1

FRAME

inner wing LH AT4-4710

1шт.

5

312557A1

FRAME

inner wing RH AT4-4710

1шт.

5

350688A1

FRAME

inner wing LH AT4-5010

1шт.

5

350689A1

FRAME

inner wing RH AT4-5010

1шт.

6

1020928

BRACKET

Brace wing LH

1шт.

6

1020929

BRACKET

Brace wing RH

1шт.

7

1017667

ROCKSHAFT

main

1шт.

8

350109A1

HAIR PIN COTTER

.177" x 3 1/4"

2шт.

9

1017002

PIN

pivot 1-1/4" OD

2шт.

10

1029695

FRAME

10 wheel gang 10" spacing

2шт.

11

1025788

PIN

wing lift 1.25" OD x 6.65" long

4шт.

12

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

46шт.

13

1017386

BAR

bolting

4шт.

14

1023821

PLATE

bolting 7" x 17-1/2" x 1/2" thick

1шт.

15

88182

COTTER PIN,1/4" OD x 2" L

14шт.

16

280954

NUT,3/4"-10, G5

26шт.

17

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

18

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

28шт.

19

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

14шт.

20

87414

LUBE NIPPLE,1/4" - 28

4шт.

21

232-14412

NUT,3/4"-10, GB

16шт.

22

232-1446

NUT,3/8"-16, GC

2шт.

23

80720

LUBE NIPPLE,30 Degree, 1/8"-27 NPT x .91" lg

4шт.

24

1026852

PIN

1" OD bent wing lock

2шт.

25

87045537

HAIR PIN COTTER

.148 x 3 5/16"

2шт.

26

87403990

HEADED PIN

1" x 4 1/4"

2шт.

27

38-11424

LOCK PIN,7/32" x 1 1/2", Slotted

2шт.
