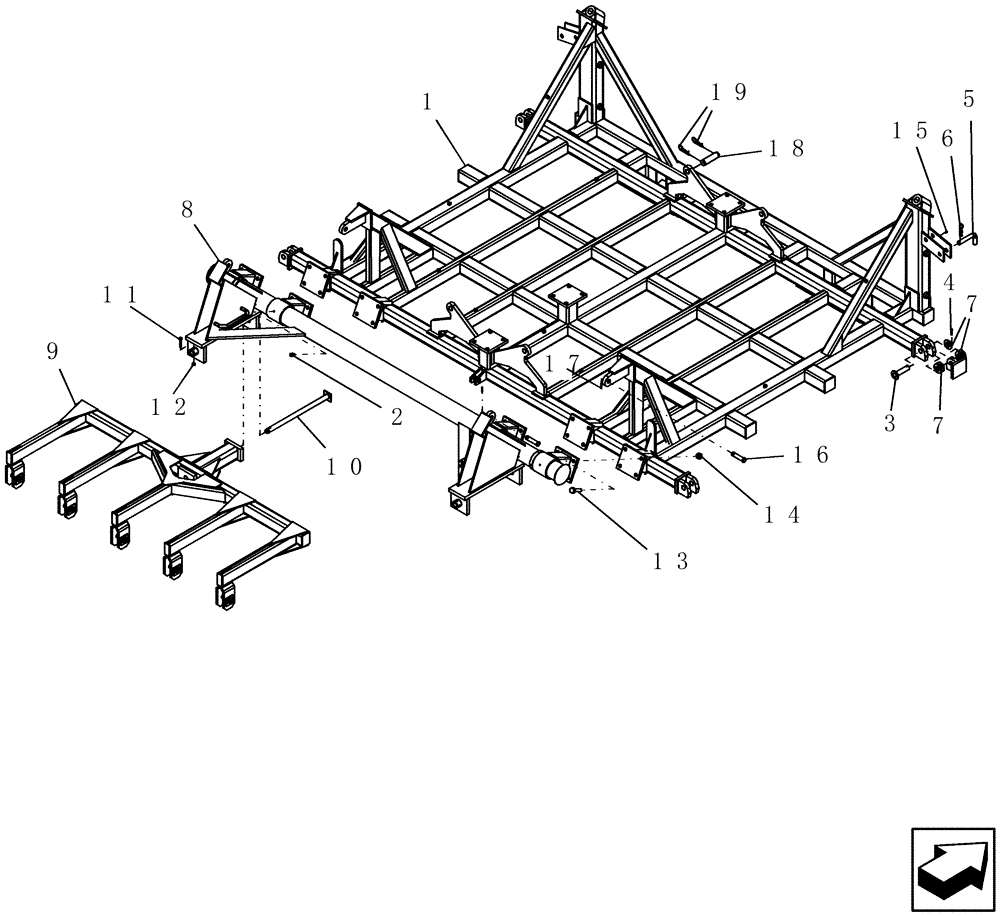

Запчасти Case IH ATX (09-12) - MAIN FRAME WITH ROCKSHAFT & WHEEL GANGS, 4010 DRILLS - 4 RANK, 5 PLEX (09) - CHASSIS

1

1027650

FRAME

main 4010-4R/5P

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

4шт.

3

1015235

PIN

1 1/4" od hinge

4шт.

4

88182

COTTER PIN,1/4" OD x 2" L

4шт.

5

1026852

PIN

1" OD bent wing lock

2шт.

6

87045537

HAIR PIN COTTER

.148 x 3 5/16"

2шт.

7

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

20шт.

8

1017667

ROCKSHAFT

main

1шт.

9

1029695

FRAME

10 wheel gang 10" spacing

2шт.

10

1017002

PIN

pivot 1-1/4" OD

2шт.

11

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

12

232-1446

NUT,3/8"-16, GC

2шт.

13

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

16шт.

14

232-14412

NUT,3/4"-10, GB

16шт.

15

80720

LUBE NIPPLE,30 Degree, 1/8"-27 NPT x .91" lg

4шт.

16

87403990

HEADED PIN

1" x 4 1/4"

4шт.

17

38-11424

LOCK PIN,7/32" x 1 1/2", Slotted

4шт.

18

1030839

PIN

cylinder 1-1/4" OD x 3" UL

4шт.

19

350109A1

HAIR PIN COTTER

.177" x 3 1/4"

8шт.
