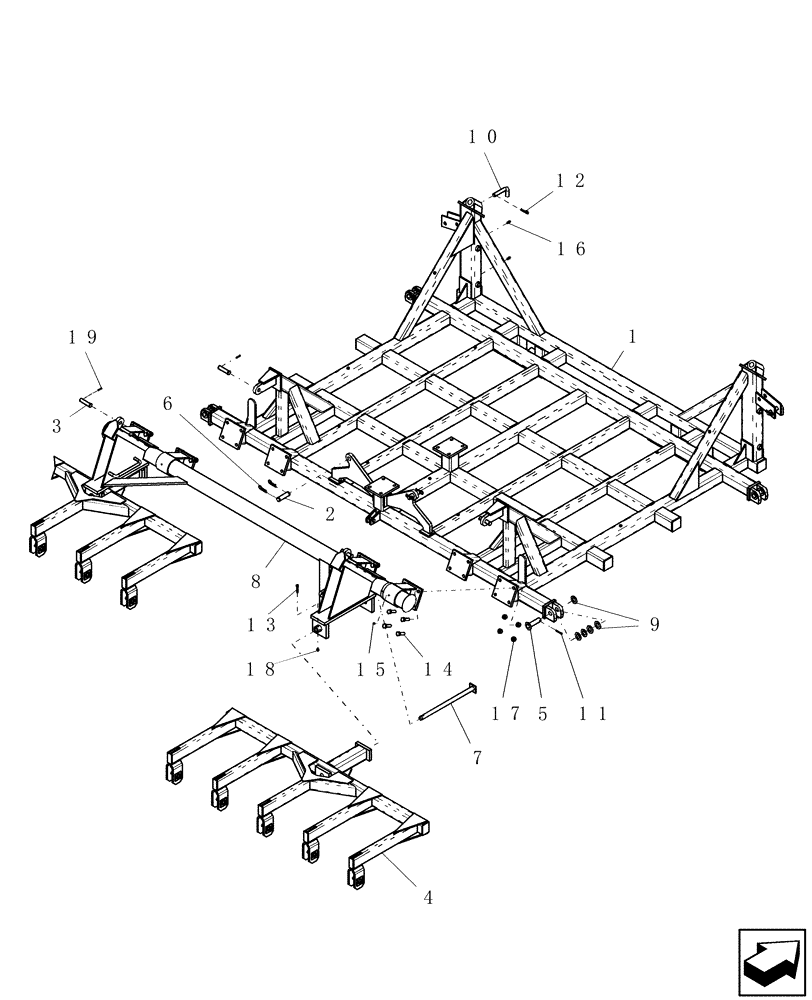

Запчасти Case IH ATX (09-10) - MAIN FRAME WITH ROCKSHAFT & WHEEL GANGS, 3010, 3310 DRILLS - 4 RANK, 3 PLEX (09) - CHASSIS

1

1017661

FRAME

main

1шт.

3010 & 3310 drills, 4 rank

1шт.

2

87403614

HEADED PIN

cylinder 1 1/4" dia 4 ul

2шт.

3

87403990

HEADED PIN

1" x 4 1/4"

4шт.

4

1029695

FRAME

10 wheel gang 10" spacing

2шт.

5

1015235

PIN

1 1/4" od hinge

4шт.

6

350109A1

HAIR PIN COTTER

.177" x 3 1/4"

4шт.

7

1017002

PIN

pivot 1-1/4" OD

2шт.

8

1017667

ROCKSHAFT

main

1шт.

9

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

20шт.

10

1026852

PIN

1" OD bent wing lock

2шт.

11

88182

COTTER PIN,1/4" OD x 2" L

4шт.

12

87045537

HAIR PIN COTTER

.148 x 3 5/16"

2шт.

13

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

14

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

16шт.

15

87414

LUBE NIPPLE,1/4" - 28

4шт.

16

80720

LUBE NIPPLE,30 Degree, 1/8"-27 NPT x .91" lg

4шт.

17

232-14412

NUT,3/4"-10, GB

16шт.

18

232-1446

NUT,3/8"-16, GC

2шт.

19

38-11424

LOCK PIN,7/32" x 1 1/2", Slotted

4шт.
