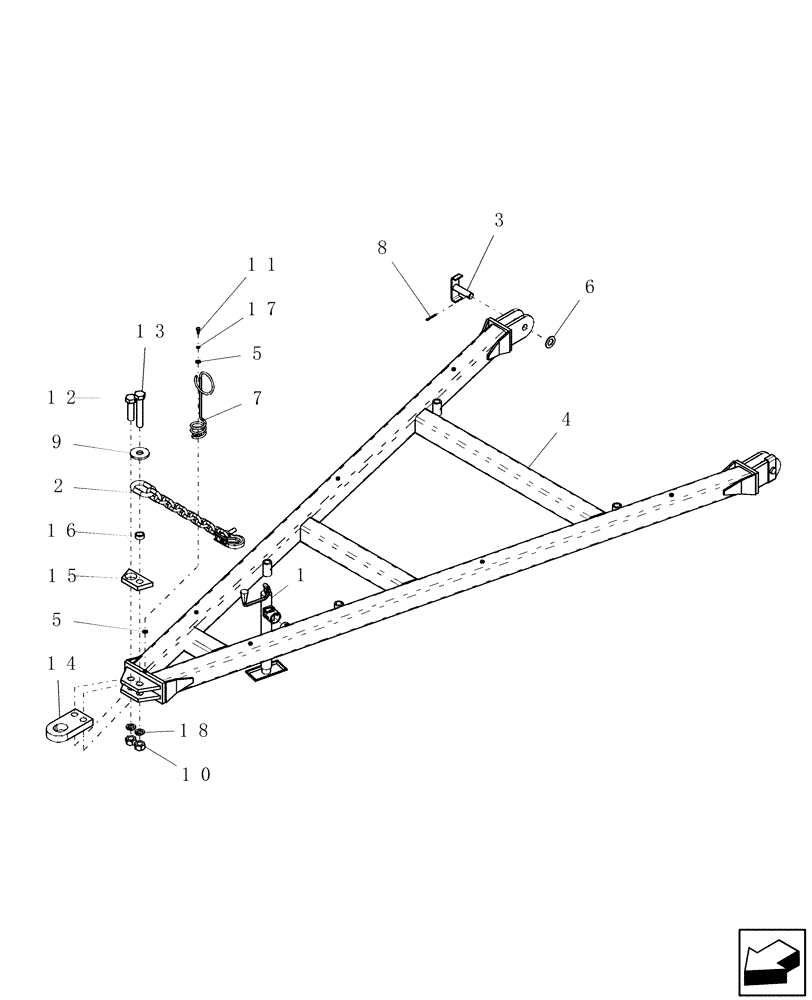

Запчасти Case IH ATX (09-02) - DRAWPOLE, ADX TBT AND TBH AIR SYSTEM, AND CONCORD REAR TOW - BTW CBJ0001597 AND CBJ0008249 (09) - CHASSIS

1

1016961

JACK

2000 lb x 15"

1шт.

2

GR-457A

CHAIN (AG)

assembly, safety 60,600 lb

1шт.

For ATX4-4710, ATX4-5010, ATX4-4812, ATX4-5012, ATX3-6012 and ATX4-6012

1шт.

2

87619912

CHAIN

safety, 40,400 lb

1шт.

ATX4-4012 3 and 5 section, ATX3-4012 5 section, ATX4-4010 5 section

1шт.

2

PCC8607191

CHAIN

30,400 lb safety

1шт.

ATX4-3010. ATX4-3310, ATX3-3212, ATX4-3212, and ATX4-3612

1шт.

3

1017062

PIN

hinge 1-1/4" OD

2шт.

4

1018407

HITCH

drawpole

1шт.

5

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

6

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

2шт.

7

1026727

HOLDER

hydraulic hose

1шт.

8

88182

COTTER PIN,1/4" OD x 2" L

2шт.

9

1032404

WASHER

1.281" ID 3.75" OD .375" thick

1шт.

10

9849649

NUT,1 1/4"-7, G5

2шт.

11

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

12

426-2072

BOLT,Hex, 1-1/4" - 7 x 4-1/2", Gr 8

1шт.

13

1032406

BOLT,Hex, 1 1/4" - 7 x 7", Gr 8

1шт.

14

1026730

HITCH

hitch

1шт.

15

1032405

LARGE PLATE

PLATE, LARGE spacer 1" thick

1шт.

15

87500088

KIT

hitch spacer, Start Year: 01-NOV-04

1шт.

Includes two 87500011

1шт.

16

1032403

SPACER

tube 3/4"

1шт.

17

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

18

88695

LOCK WASHER,1 1/8"

2шт.
