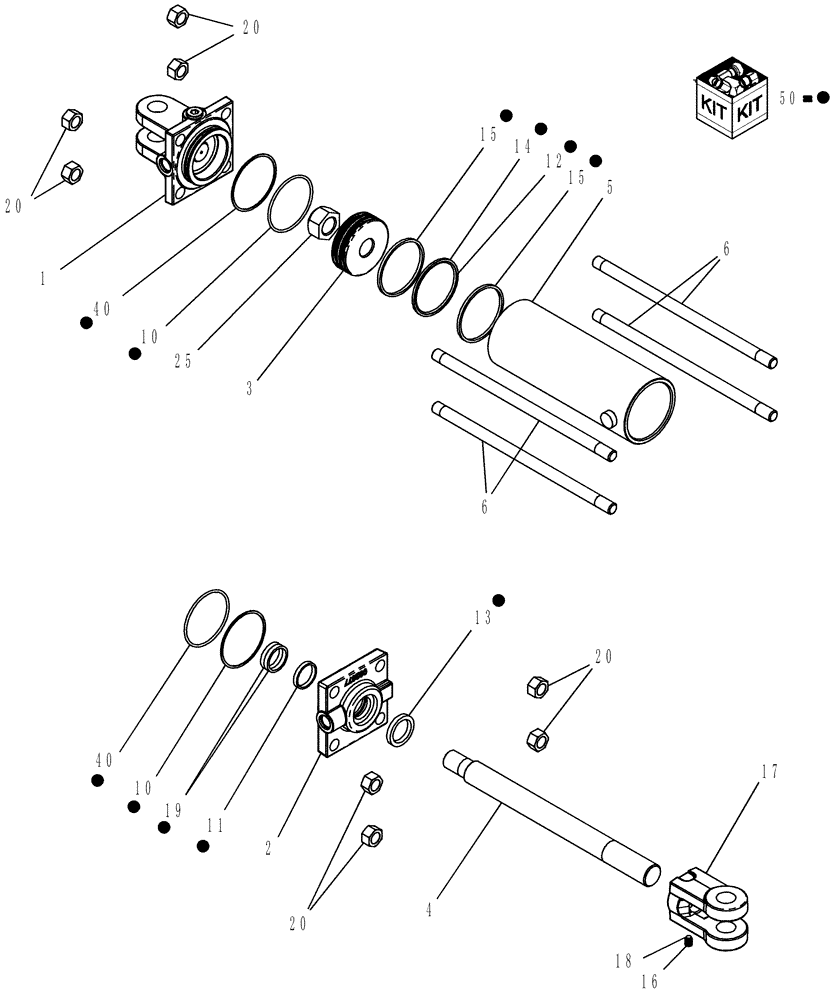

Запчасти Case IH ATX (08-82) - HYDRAULIC DEPTH CONTROL CYLINDER, 5 INCH BORE X 8 INCH STROKE, 86991226 (08) - HYDRAULICS

0

86991226

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 203.2mm Stroke

5" x 8" 3000 psi no pins, Start Year: 02-SEP-02, Start Serial: CBJ0008108

1шт.

1

87409436

HEAD

cylinder base 5" bore

1шт.

2

87409403

HEAD

cylinder front 5" bore x 1 3/4" rod

1шт.

3

87409476

PISTON

cylinder 5" bore

1шт.

4

87409455

PISTON ROD

1 3/4" Nitrosteel

1шт.

5

NSS

NOT SOLD SEPARAT

CYLINDER TUBE

1шт.

6

87409487

BOLT

hydraulic cylinder tie

4шт.

10

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Included in repair kit 87409045

1шт.

11

NSS

NOT SOLD SEPARAT

U-CUP ROD SEAL

1шт.

Included in repair kit 87409045

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in repair kit 87409045

1шт.

13

NSS

NOT SOLD SEPARAT

ROD WIPER

1шт.

Included in repair kit 87409045

1шт.

14

NSS

NOT SOLD SEPARAT

PTFE SEAL

1шт.

Included in repair kit 87409045

1шт.

15

NSS

NOT SOLD SEPARAT

WEAR RING

2шт.

Included in repair kit 87409045

1шт.

16

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

17

87409388

CLEVIS

cylinder rod

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

19

NSS

NOT SOLD SEPARAT

WEAR RING

2шт.

Included in repair kit 87409045

1шт.

20

80001689

NUT

3/4"-16, G5

8шт.

25

232-46324

LOCK NUT,1 1/2"-12, GC

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

40

NSS

NOT SOLD SEPARAT

O-RING BACKUP

2шт.

Included in repair kit 87409045

1шт.

50

87409045

SEAL KIT

hyd cylinder service 5" Monarch 1 3/4" rod

1шт.

Includes Refs. 10, 11, 13, 14, 15, 19 and 40

1шт.
