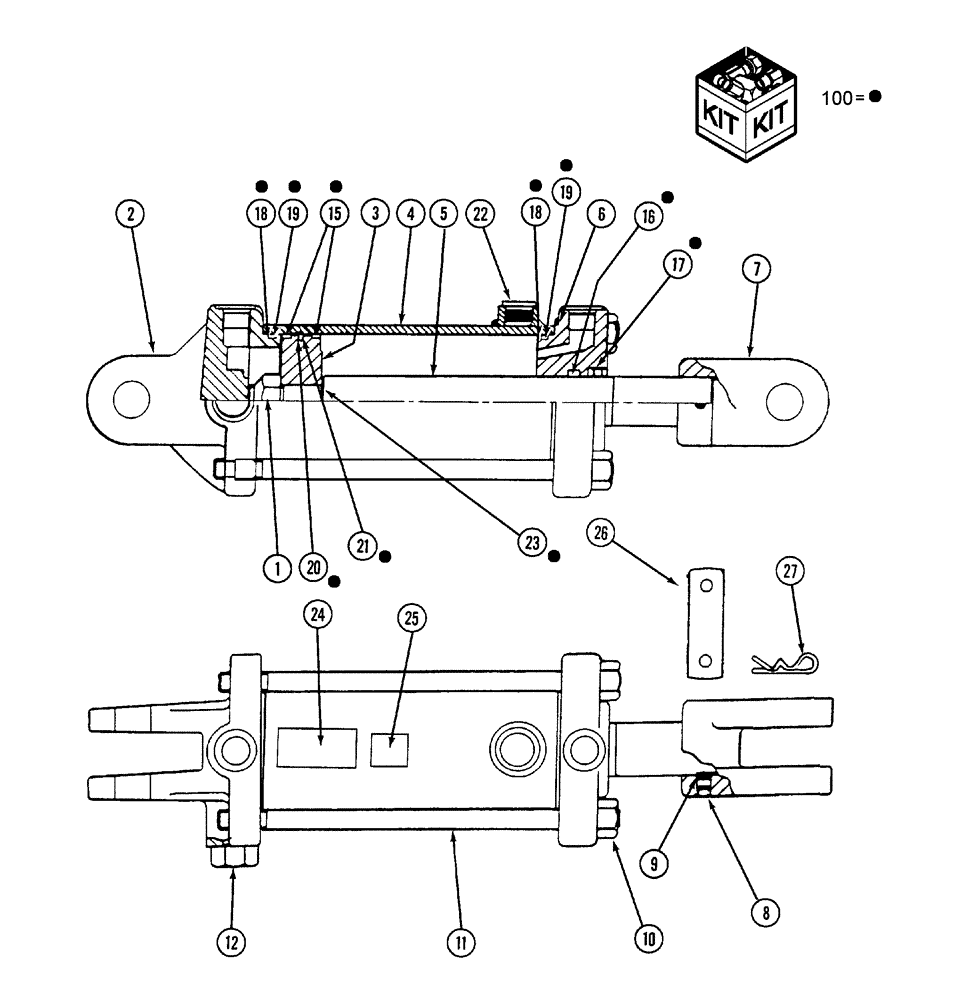

Запчасти Case IH ATX (08-76) - HYDRAULIC DEPTH CONTROL CYLINDER, 4-3/4 INCH BORE X 8 INCH STROKE, 1027481 (08) - HYDRAULICS

0

1027481

HYDRAULIC CYLINDER

4 3/4" x 8" Iowa, Years: -01-SEP-02

1шт.

1

NSS

NOT SOLD SEPARAT

NUT SELF-LOCKING

1шт.

2

1978012C1

HEAD

REAR

1шт.

3

1978014C1

PISTON

CYL

1шт.

4

NSS

NOT SOLD SEPARAT

TUBE - CYLINDER

1шт.

5

1030829

ROD ASSY.

CYL

1шт.

6

1978013C1

HEAD

FRONT

1шт.

7

143213A1

RAM FORK

CLEVIS, CYL

1шт.

8

86624120

SET SCREW,3/8" - 16 x 3/8"

1шт.

9

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

10

25-1012

NUT,3/4"-10, G5

4шт.

11

1286385C1

TIE-ROD,3/4" - 10 x 13.81"

TIE

4шт.

12

NSS

NOT SOLD SEPARAT

PLUG ASSY

1шт.

16

NSS

NOT SOLD SEPARAT

U-CUP

1шт.

Included in seal kit 1978015C1

1шт.

17

431607A1

WIPER

ROD

1шт.

Included in seal kit 1978015C1

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Included in seal kit 1978015C1

1шт.

19

NSS

NOT SOLD SEPARAT

BACKUP

2шт.

Included in seal kit 1978015C1

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - PISTON

1шт.

Included in seal kit 1978015C1

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in seal kit 1978015C1

1шт.

22

143204A1

PLUG

hex socket, special, 3/4"-16 o-ring boss

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in seal kit 1978015C1

1шт.

24

NSS

NOT SOLD SEPARAT

DECAL

1шт.

25

NSS

NOT SOLD SEPARAT

DECAL

1шт.

26

1923593C1

PIN

HYD CYL CLEVIS

1шт.

Does not come with cylinder

1шт.

26

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

1" x 3 1/4"

1шт.

Does not come with cylinder

1шт.

27

1030840

RETAINER

HAIRPIN CYLINDER PIN KEEPER

1шт.

29

312950A2

HEADED PIN,25.4mm OD x 89.8mm L

1" x 3 5/16" fl

1шт.

Does not come with cylinder

1шт.

30

38-21224

PIN,3/16" x 1 1/2", Coiled

1шт.

Does not come with cylinder

1шт.

100

1978015C1

SEAL KIT

SEAL

1шт.
