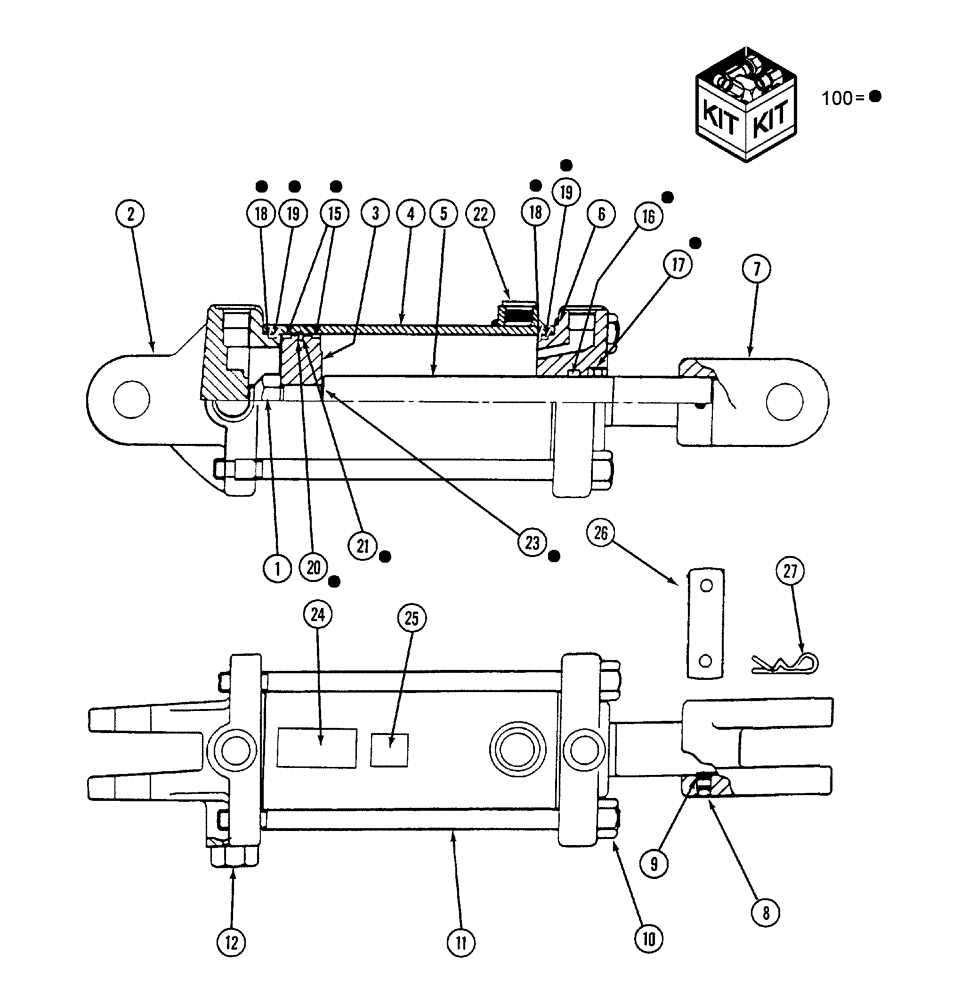

Запчасти Case IH ATX (08-72) - HYDRAULIC DEPTH CONTROL CYLINDER, 4-1/2 INCH BORE X 8 INCH STROKE, 1027480 (08) - HYDRAULICS

0

1027480

HYDRAULIC CYLINDER

4 1/2" x 8" Iowa, Years: -01-SEP-02

1шт.

1

143208A1

LOCK NUT

self-locking

1шт.

2

1954155C1

JACK HEAD

REAR

1шт.

3

1954189C1

JACK PISTON

HYD CYL

1шт.

4

NSS

NOT SOLD SEPARAT

TUBE - CYLINDER

1шт.

5

1030828

ROD ASSY.

CYL

1шт.

6

1954158C1

HEAD

GLAND - CYLINDER

1шт.

7

1282366C1

RAM FORK

HYD CYLINDER PISTON ROD

1шт.

8

86624120

SET SCREW,3/8" - 16 x 3/8"

1шт.

9

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

10

NSS

NOT SOLD SEPARAT

NUT -

4шт.

11

1286385C1

TIE-ROD,3/4" - 10 x 13.81"

TIE

4шт.

12

NSS

NOT SOLD SEPARAT

PLUG -

1шт.

15

143203A1

SEALING RING

SEAL WASHER CYL WEAR

2шт.

Included in seal kit 1027910

1шт.

16

NSS

NOT SOLD SEPARAT

U-CUP -

1шт.

Included in seal kit 1027910

1шт.

17

NSS

NOT SOLD SEPARAT

WIPER -

1шт.

Included in seal kit 1027910

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING -

2шт.

Included in seal kit 1027910

1шт.

19

NSS

NOT SOLD SEPARAT

BACKUP -

2шт.

Included in seal kit 1027910

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - PISTON

1шт.

Included in seal kit 1027910

1шт.

21

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

Included in seal kit 1027910

1шт.

22

143204A1

PLUG

hex socket, special, 3/4"-16 o-ring boss

1шт.

23

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

Included in seal kit 1027910

1шт.

24

NSS

NOT SOLD SEPARAT

DECAL -

1шт.

25

NSS

NOT SOLD SEPARAT

DECAL -

1шт.

100

1027910

SEAL

Kit

1шт.
