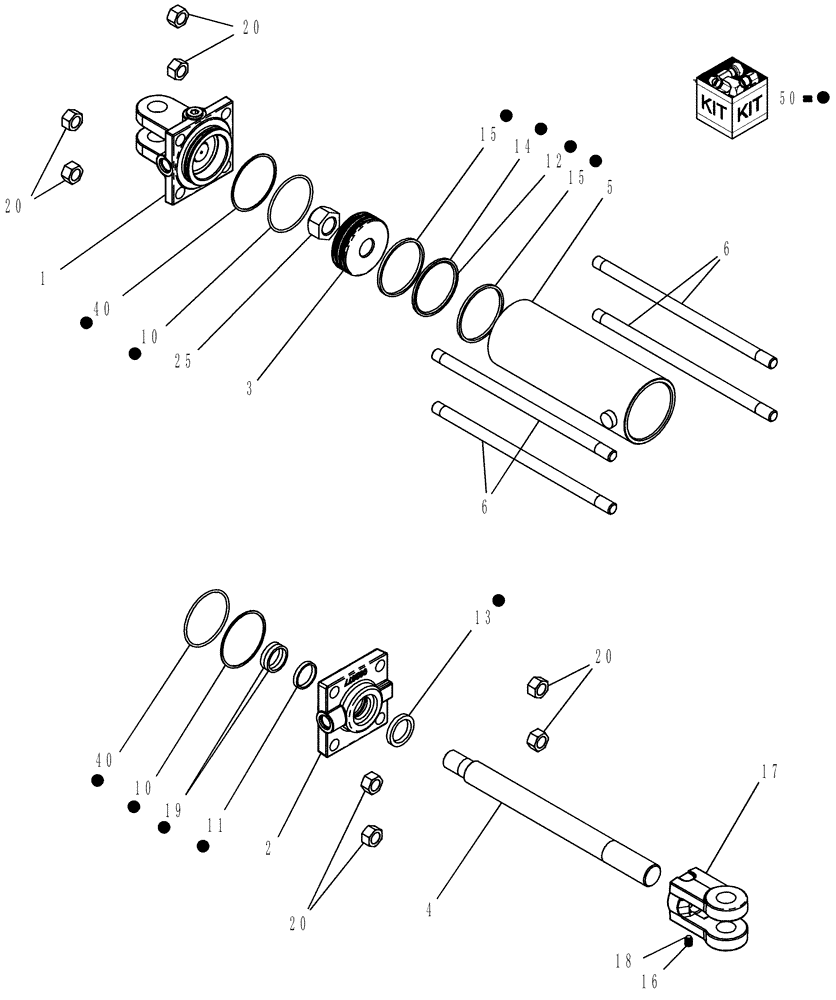

Запчасти Case IH ATX (08-70) - HYDRAULIC DEPTH CONTROL CYLINDER, 4-1/4 INCH BORE X 8 INCH STROKE, 86991980 (08) - HYDRAULICS

0

86991980

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 38.1mm Stroke

4 1/4" x 8" 3000 psi no pins, Start Year: 02-SEP-02, Start Serial: CBJ0008108

1шт.

1

87409433

HEAD

cylinder base 4 1/4" bore

1шт.

2

87409398

HEAD

cylinder front 4 1/4" bore x 1 1/2" rod

1шт.

3

87409473

PISTON

cylinder 4 1/4" bore

1шт.

4

87409454

PISTON

rod 1 1/2" Nitrosteel

1шт.

5

NSS

NOT SOLD SEPARAT

CYLINDER TUBE

1шт.

6

87409486

BOLT

5/8"-11 hydraulic cylinder tie

4шт.

10

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Included in repair kit 87409041

1шт.

11

NSS

NOT SOLD SEPARAT

U-CUP ROD SEAL

1шт.

Included in repair kit 87409041

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in repair kit 87409041

1шт.

13

NSS

NOT SOLD SEPARAT

ROD WIPER

1шт.

Included in repair kit 87409041

1шт.

14

NSS

NOT SOLD SEPARAT

PTFE SEAL

1шт.

Included in repair kit 87409041

1шт.

15

NSS

NOT SOLD SEPARAT

WEAR RING

2шт.

Included in repair kit 87409041

1шт.

16

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

Included in repair kit 87409041

1шт.

17

87409388

CLEVIS

cylinder rod

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

19

NSS

NOT SOLD SEPARAT

WEAR RING

2шт.

Included in repair kit 87409041

1шт.

20

408

NUT,5/8" - 18, Gr 5

8шт.

25

232-46320

LOCK NUT,1 1/4"-12, GC

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

40

NSS

NOT SOLD SEPARAT

O-RING BACKUP

2шт.

Included in repair kit 87409041

1шт.

50

87409041

SEAL KIT

hydraulic cylinder 4 1/4" Monarch

1шт.

Includes Refs. 10, 11, 13, 14, 15, 19 and 40

1шт.
