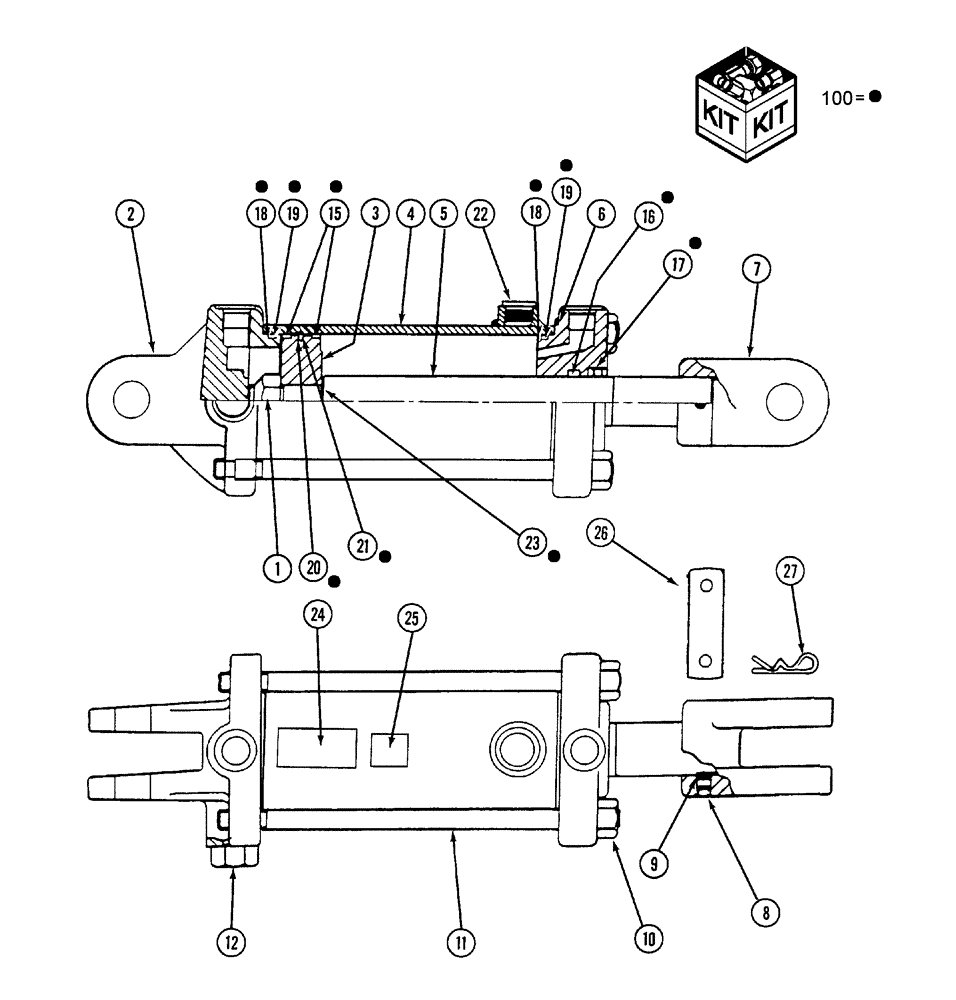

Запчасти Case IH ATX (08-68) - HYDRAULIC DEPTH CONTROL CYLINDER, 4-1/4 INCH BORE X 8 INCH STROKE, 1027479 (08) - HYDRAULICS

0

1027479

HYDRAULIC CYLINDER

4 1/4" x 8" Iowa, Years: -01-SEP-02

1шт.

1

143208A1

LOCK NUT

self-locking

1шт.

2

184923A1

CAP

HYD CYL END

1шт.

3

92696C1

PISTON

CYL ROD

1шт.

4

NSS

NOT SOLD SEPARAT

TUBE - CYLINDER

1шт.

5

1030828

ROD ASSY.

CYL

1шт.

6

184915A1

GLAND

HYD CYL HEAD

1шт.

7

1282366C1

RAM FORK

HYD CYLINDER PISTON ROD

1шт.

8

86624120

SET SCREW,3/8" - 16 x 3/8"

1шт.

9

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

10

NSS

NOT SOLD SEPARAT

NUT -

4шт.

11

1286385C1

TIE-ROD,3/4" - 10 x 13.81"

TIE

4шт.

12

NSS

NOT SOLD SEPARAT

PLUG -

1шт.

16

NSS

NOT SOLD SEPARAT

U-CUP -

1шт.

Included in seal kit 118510A1

1шт.

17

403460R1

WIPER SEAL,38mm ID x 50.9mm OD x 7.94mm Thk

SEALRING ROD WIPER

1шт.

Included in seal kit 118510A1

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING -

2шт.

Included in seal kit 118510A1

1шт.

19

NSS

NOT SOLD SEPARAT

BACKUP -

2шт.

Included in seal kit 118510A1

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - PISTON

1шт.

Included in seal kit 118510A1

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING -

1шт.

Included in seal kit 118510A1

1шт.

22

143204A1

PLUG

hex socket, special, 3/4"-16 o-ring boss

1шт.

23

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

Included in seal kit 118510A1

1шт.

24

NSS

NOT SOLD SEPARAT

DECAL -

1шт.

25

NSS

NOT SOLD SEPARAT

DECAL -

1шт.

26

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

1" x 3 1/4"

1шт.

Does not come with cylinder

1шт.

27

1030840

RETAINER

HAIRPIN CYLINDER PIN KEEPER

1шт.

29

312950A2

HEADED PIN,25.4mm OD x 89.8mm L

1" x 3 5/16" fl

1шт.

Does not come with cylinder

1шт.

30

38-21224

PIN,3/16" x 1 1/2", Coiled

1шт.

Does not come with cylinder

1шт.

100

118510A1

SEAL KIT

HYD CYL SEAL & O-RING

1шт.
