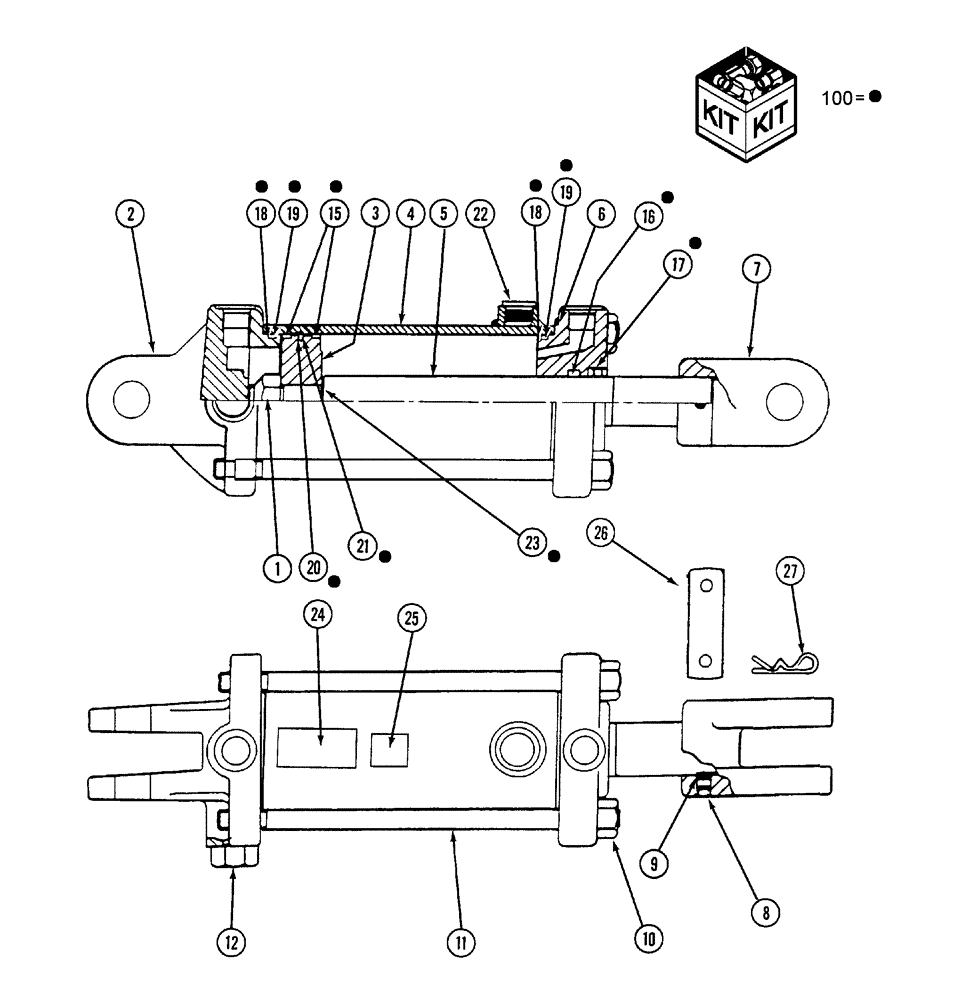

Запчасти Case IH ATX (08-64) - HYDRAULIC DEPTH CONTROL CYLINDER, 4 INCH BORE X 8 INCH STROKE, 1026898 (08) - HYDRAULICS

0

1026898

HYDRAULIC CYLINDER

4" x 8" Iowa, Years: -01-SEP-02

2шт.

1

H438714

LOCK NUT,7/8" - 14

SELF-LOCKING

1шт.

2

1272919C1

CYLINDER HEAD

rear

1шт.

3

92521C1

PISTON

hyd cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

TUBE - CYLINDER

1шт.

5

1267056C1

ROD

HYD CYL PISTON

1шт.

6

1272920C1

HEAD

FRONT-HYD. CYL

1шт.

7

1267057C1

CLEVIS,3/8" - 16

CYL CAP 3.75 & 4 DIA

1шт.

8

86624120

SET SCREW,3/8" - 16 x 3/8"

1шт.

9

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

10

NSS

NOT SOLD SEPARAT

NUT -

4шт.

11

142461C1

TIE-ROD,Tie, 5/8" - 11 x 335mm

BOLT, HYD CYLINDER TIE

4шт.

12

NSS

NOT SOLD SEPARAT

PLUG -

1шт.

15

143203A1

SEALING RING

SEAL WASHER CYL WEAR

2шт.

16

NSS

NOT SOLD SEPARAT

U-CUP -

1шт.

Included in seal kit 80117C2

1шт.

17

NSS

NOT SOLD SEPARAT

WIPER -

1шт.

Included in seal kit 80117C2

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING -

2шт.

Included in seal kit 80117C2

1шт.

19

NSS

NOT SOLD SEPARAT

BACKUP -

2шт.

Included in seal kit 80117C2

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - PISTON

1шт.

Included in seal kit 80117C2

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING -

1шт.

Included in seal kit 80117C2

1шт.

22

143204A1

PLUG

hex socket, special, 3/4"-16 o-ring boss

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING -

1шт.

Included in seal kit 80117C2

1шт.

24

NSS

NOT SOLD SEPARAT

DECAL -

1шт.

25

NSS

NOT SOLD SEPARAT

DECAL -

1шт.

26

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

1" x 3 1/4"

2шт.

26

312950A2

HEADED PIN,25.4mm OD x 89.8mm L

1" x 3 5/16" fl, Years: -31-OCT-02

2шт.

Not Shown

1шт.

26

87403990

HEADED PIN

1" x 4 1/4", Start Year: 01-NOV-02

2шт.

27

1030840

RETAINER

HAIRPIN CYLINDER PIN KEEPER

4шт.

27

38-11424

LOCK PIN,7/32" x 1 1/2", Slotted

2шт.

Not Shown

1шт.

100

80117C2

SEAL KIT

SEAL

1шт.
