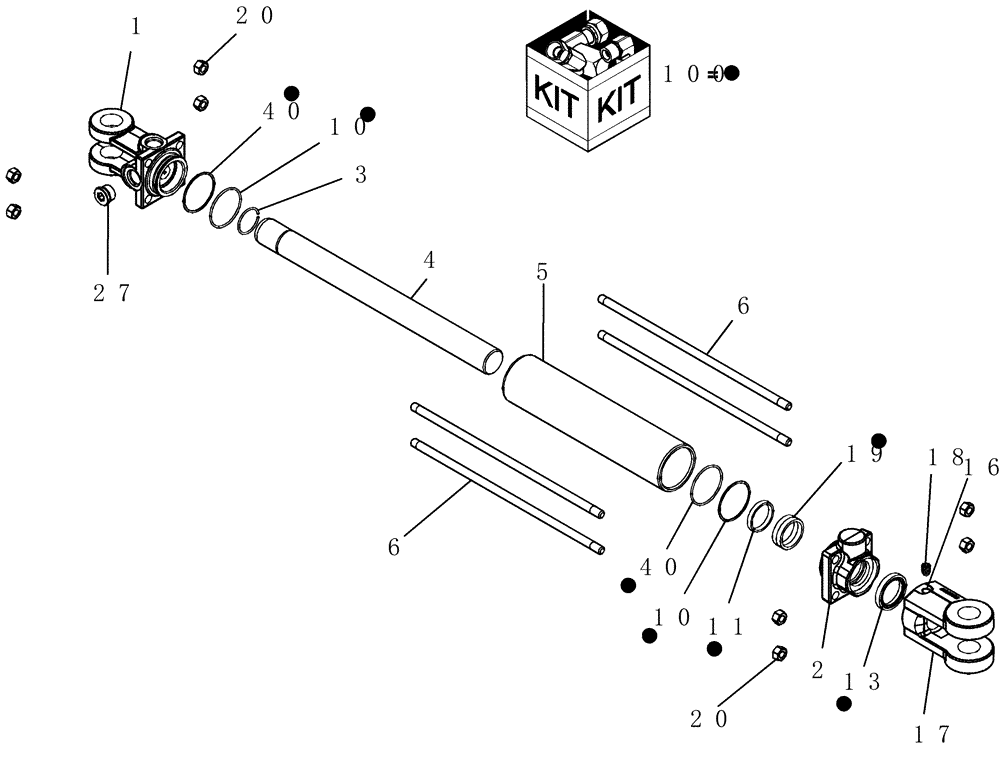

Запчасти Case IH ATX (08-62) - HYDRAULIC DEPTH CONTROL CYLINDER, 3-3/4 INCH BORE X 8 INCH STROKE, 86991978 (08) - HYDRAULICS

0

86991978

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 203.2mm Stroke

3 3/4" x 8" 3000 psi no pins, Start Year: 02-SEP-02, Start Serial: CBJ0001935

1шт.

1

87409431

HEAD

cylinder base 3 3/4" bore

1шт.

2

87409396

HEAD

cylinder front 3 3/4" bore x 1 3/8" rod

1шт.

3

NSS

NOT SOLD SEPARAT

RETAINING RING

1шт.

Included in repair kit 87409040

1шт.

4

87409453

PISTON ROD

1 3/8" Nitrosteel

1шт.

5

NSS

NOT SOLD SEPARAT

CYLINDER TUBE

1шт.

6

87409486

BOLT

5/8"-11 hydraulic cylinder tie

4шт.

10

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Included in repair kit 87409040

1шт.

11

NSS

NOT SOLD SEPARAT

U-CUP ROD SEAL

1шт.

Included in repair kit 87409040

1шт.

13

NSS

NOT SOLD SEPARAT

ROD WIPER

1шт.

Included in repair kit 87409040

1шт.

16

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

17

87409387

CLEVIS,1 -1/4" - 12

cylinder 1" pin 1 1/4"-12 rod Monarch #492652

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

19

NSS

NOT SOLD SEPARAT

WEAR RING

2шт.

Included in repair kit 87409040

1шт.

20

408

NUT,5/8" - 18, Gr 5

8шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

40

NSS

NOT SOLD SEPARAT

O-RING BACKUP

2шт.

Included in repair kit 87409040

1шт.

100

87409040

SEAL KIT

hydraulic cylinder 3 3/4" Monarch

1шт.
