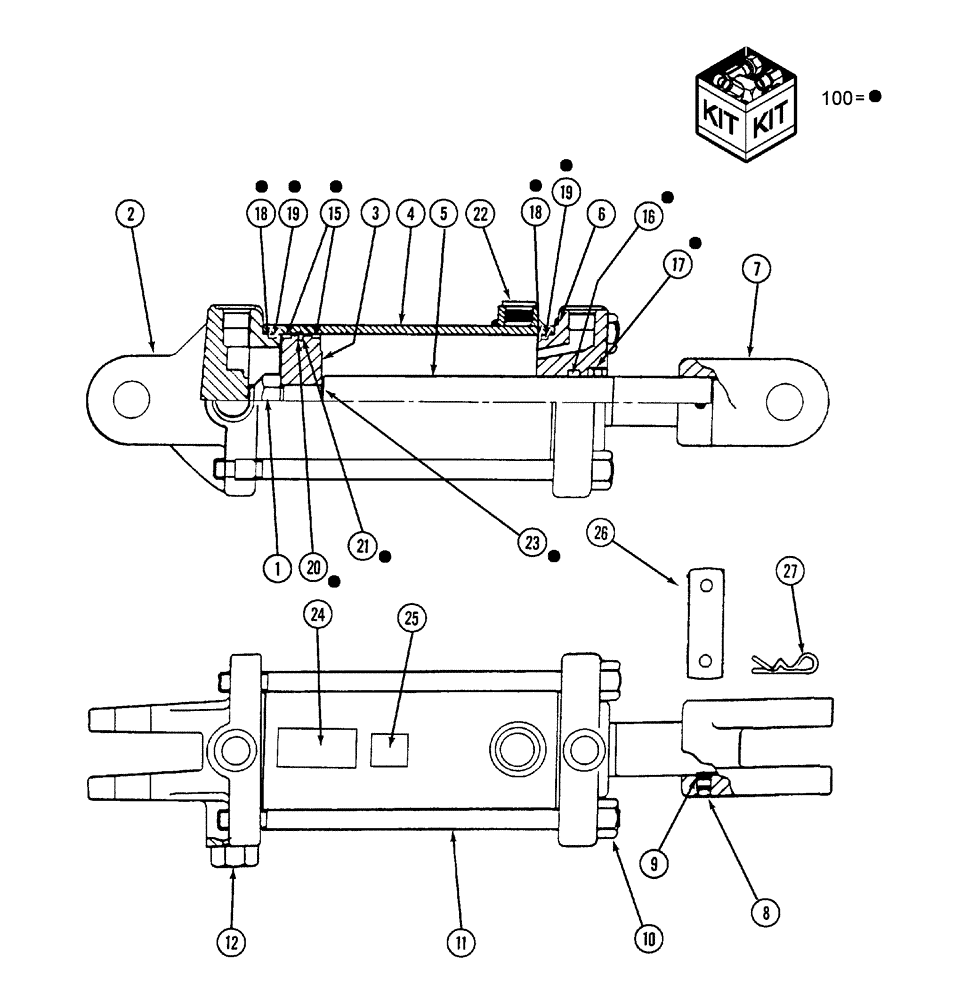

Запчасти Case IH ATX (08-60) - HYDRAULIC DEPTH CONTROL CYLINDER, 3-3/4 INCH BORE X 8 INCH STROKE, 1026897 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
0
1026897
HYDRAULIC CYLINDER
3 3/4" x 8" Iowa, Years: -01-SEP-02
2шт.
1
H438714
LOCK NUT,7/8" - 14
SELF-LOCKING
1шт.
2
1285799C1
HEAD
GLAND - CYLINDER
1шт.
3
92520C1
PISTON
CYL. ROD
1шт.
4
NSS
NOT SOLD SEPARAT
TUBE - CYLINDER
1шт.
5
1267056C1
ROD
HYD CYL PISTON
1шт.
6
1285798C1
END
GLAND - CYLINDER
1шт.
7
1267057C1
CLEVIS,3/8" - 16
CYL CAP 3.75 & 4 DIA
1шт.
8
86624120
SET SCREW,3/8" - 16 x 3/8"
1шт.
9
145453C1
PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon
pad, clevis set screw
1шт.
10
NSS
NOT SOLD SEPARAT
NUT - HEX, 1/2 inch NC
4шт.
11
142461C1
TIE-ROD,Tie, 5/8" - 11 x 335mm
BOLT, HYD CYLINDER TIE
4шт.
12
NSS
NOT SOLD SEPARAT
PLUG -
1шт.
15
NSS
NOT SOLD SEPARAT
RING - WEAR, PISTON
2шт.
16
NSS
NOT SOLD SEPARAT
U-CUP -
1шт.
Included in seal kit 80115C2
1шт.
17
NSS
NOT SOLD SEPARAT
WIPER -
1шт.
Included in seal kit 80115C2
1шт.
18
NSS
NOT SOLD SEPARAT
O-RING -
2шт.
Included in seal kit 80115C2
1шт.
19
NSS
NOT SOLD SEPARAT
BACKUP -
2шт.
Included in seal kit 80115C2
1шт.
20
NSS
NOT SOLD SEPARAT
SEAL - PISTON
1шт.
Included in seal kit 80115C2
1шт.
21
NSS
NOT SOLD SEPARAT
O-RING -
1шт.
Included in seal kit 80115C2
1шт.
22
143204A1
PLUG
hex socket, special, 3/4"-16 o-ring boss
1шт.
23
NSS
NOT SOLD SEPARAT
O-RING -
2шт.
Included in seal kit 80115C2
1шт.
24
NSS
NOT SOLD SEPARAT
DECAL -
1шт.
25
NSS
NOT SOLD SEPARAT
DECAL -
1шт.
26
61571C2
HEADED PIN,25.4mm OD x 82.5mm L
1" x 3 1/4"
2шт.
26
312950A2
HEADED PIN,25.4mm OD x 89.8mm L
1" x 3 5/16" fl, Years: -31-OCT-02
2шт.
Not Shown
1шт.
26
87403990
HEADED PIN
1" x 4 1/4", Start Year: 01-NOV-02
2шт.
27
1030840
RETAINER
HAIRPIN CYLINDER PIN KEEPER
4шт.
27
38-11424
LOCK PIN,7/32" x 1 1/2", Slotted
4шт.
Not Shown
1шт.
27
38-11424
LOCK PIN,7/32" x 1 1/2", Slotted
2шт.
Not Shown
1шт.
100
80115C2
SEAL KIT
KIT
1шт.
Выбрано товаров: 41
