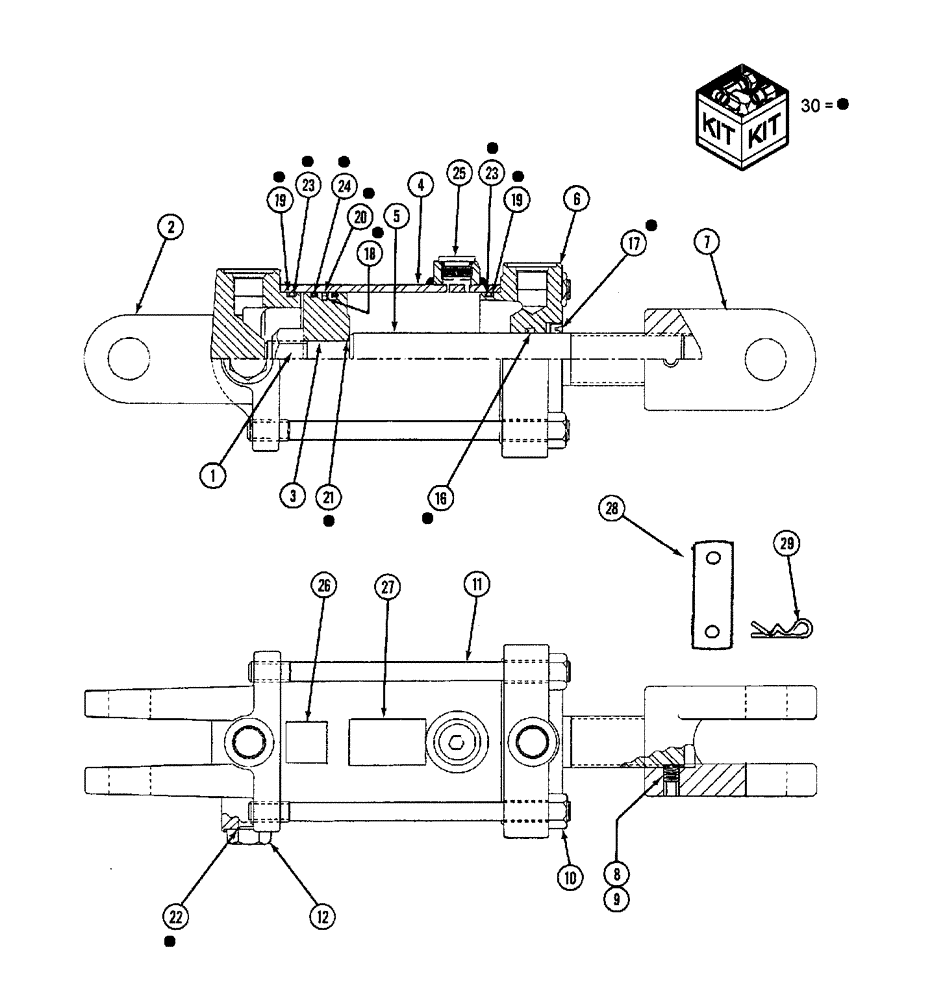

Запчасти Case IH ATX (08-56) - HYDRAULIC DEPTH CONTROL CYLINDER, 3-1/2 INCH BORE X 8 INCH STROKE, 1026896 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
0
1026896
HYDRAULIC CYLINDER
3 1/2" x 8" Iowa, Years: -01-SEP-02
2шт.
1
H438714
LOCK NUT,7/8" - 14
SELF-LOCKING
1шт.
2
1272825C1
HEAD
hyd cylinder rear with 2 ports
1шт.
3
85179C1
PISTON
1шт.
4
NSS
NOT SOLD SEPARAT
TUBE - CYLINDER
1шт.
5
1030826
ROD ASSY.
PISTON
1шт.
6
1272826C1
HEAD
hyd cylinder front
1шт.
7
145233C1
CLEVIS,1/4" - 12
end, rod
1шт.
8
86624120
SET SCREW,3/8" - 16 x 3/8"
1шт.
9
145453C1
PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon
pad, clevis set screw
1шт.
10
NSS
NOT SOLD SEPARAT
NUT - HEX, 1/2 inch NC
4шт.
11
1272524C1
TIE-ROD,1/2" -13 x 12.65", UNC
TIE ROD bolt, hyd cylinder
4шт.
12
NSS
NOT SOLD SEPARAT
PLUG -
1шт.
16
NSS
NOT SOLD SEPARAT
U-CUP -
1шт.
Included in seal kit 84919C2
1шт.
17
NSS
NOT SOLD SEPARAT
WIPER -
1шт.
Included in seal kit 84919C2
1шт.
18
NSS
NOT SOLD SEPARAT
O-RING -
1шт.
Included in seal kit 84919C2
1шт.
19
NSS
NOT SOLD SEPARAT
BACKUP -
2шт.
Included in seal kit 84919C2
1шт.
20
NSS
NOT SOLD SEPARAT
SEAL - PISTON
1шт.
Included in seal kit 84919C2
1шт.
21
NSS
NOT SOLD SEPARAT
O-RING -
1шт.
Included in seal kit 84919C2
1шт.
22
NSS
NOT SOLD SEPARAT
O-RING -
1шт.
Included in seal kit 84919C2
1шт.
23
NSS
NOT SOLD SEPARAT
O-RING -
2шт.
Included in seal kit 84919C2
1шт.
24
NSS
NOT SOLD SEPARAT
RING - WEAR
2шт.
Included in seal kit 84919C2
1шт.
25
143204A1
PLUG
hex socket, special, 3/4"-16 o-ring boss
1шт.
26
NSS
NOT SOLD SEPARAT
DECAL - 3-1/2
1шт.
27
NSS
NOT SOLD SEPARAT
DECAL - CYLINDER IDENTIFICATION
1шт.
28
61571C2
HEADED PIN,25.4mm OD x 82.5mm L
1" x 3 1/4"
2шт.
28
312950A2
HEADED PIN,25.4mm OD x 89.8mm L
1" x 3 5/16" fl, Years: -31-OCT-02
2шт.
Not Shown
1шт.
28
87403990
HEADED PIN
1" x 4 1/4", Start Year: 01-NOV-02
2шт.
29
1030840
RETAINER
HAIRPIN CYLINDER PIN KEEPER
4шт.
29
38-11424
LOCK PIN,7/32" x 1 1/2", Slotted
4шт.
Not Shown
1шт.
29
38-11424
LOCK PIN,7/32" x 1 1/2", Slotted
2шт.
Not Shown
1шт.
30
84919C2
GASKET KIT
hyd cylinder o-ring & seal service
1шт.
Выбрано товаров: 44
