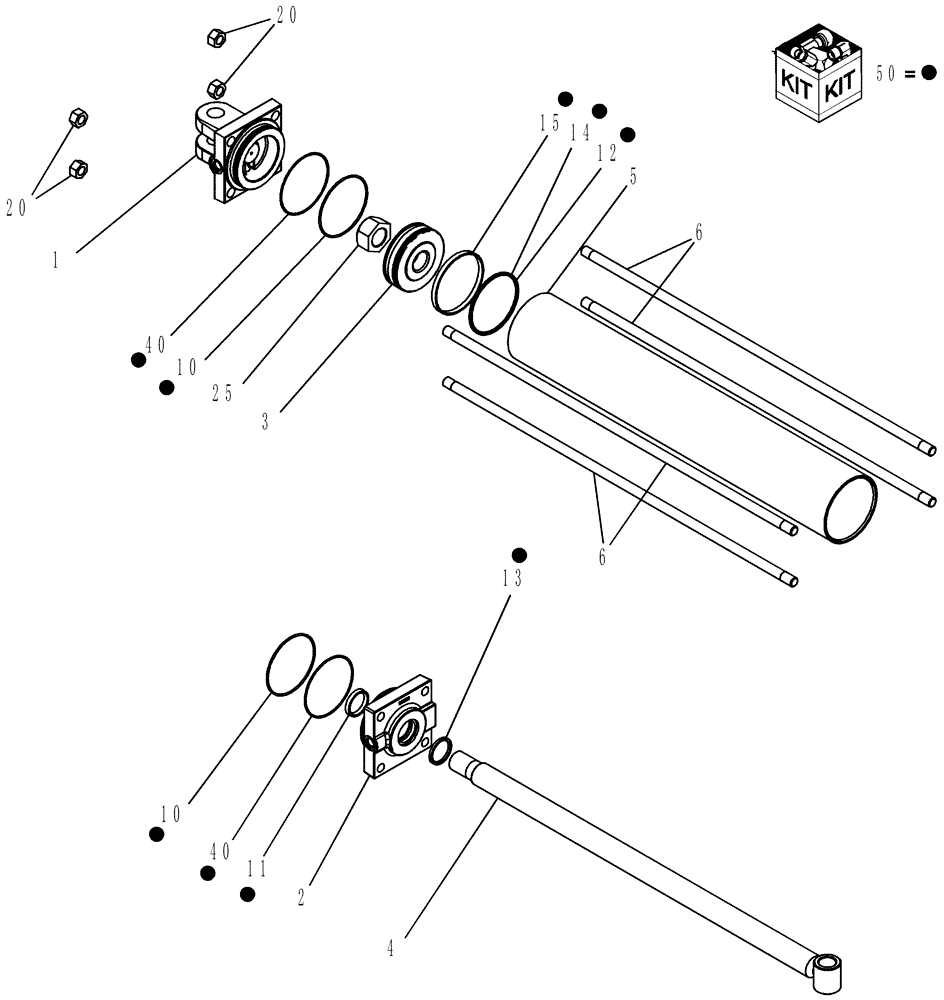

Запчасти Case IH ATX (08-50) - HYDRAULIC WING LIFT CYLINDER, 5 INCH BORE X 30 INCH STROKE, 87407431 AND 86990365 (08) - HYDRAULICS

0

87407431

HYDRAULIC CYLINDER

hyd cylinder assembly 5" x 30" Monarch, Start Year: 01-NOV-02, Start Serial: CBJ0008108

1шт.

Includes 86990365, 1019844, 218-5106, 350401A1, 1015478, and 6-70060

1шт.

1

87409428

HEAD

cylinder base 5" bore; 2, 3/4"-16 orb ports

1шт.

2

87409393

HEAD

cylinder front 5" bore x 1 3/4" rod

1шт.

3

87409467

PISTON

cylinder, 5" bore Monarch #494760

1шт.

4

87409451

PISTON ROD

1 3/4" Nitrosteel

1шт.

5

NSS

NOT SOLD SEPARAT

CYLINDER TUBE

1шт.

6

87409485

BOLT

hyd cylinder tie

4шт.

10

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Included in repair kit 87409045

1шт.

11

NSS

NOT SOLD SEPARAT

U-CUP ROD SEAL

1шт.

Included in repair kit 87409045

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in repair kit 87409045

1шт.

13

NSS

NOT SOLD SEPARAT

ROD WIPER

1шт.

Included in repair kit 87409045

1шт.

14

NSS

NOT SOLD SEPARAT

PTFE SEAL

1шт.

Included in repair kit 87409045

1шт.

15

NSS

NOT SOLD SEPARAT

WEAR RING

1шт.

Included in repair kit 87409045

1шт.

20

80001689

NUT

3/4"-16, G5

4шт.

25

232-46324

LOCK NUT,1 1/2"-12, GC

1шт.

40

NSS

NOT SOLD SEPARAT

O-RING BACKUP

2шт.

Included in repair kit 87409045

1шт.

50

87409045

SEAL KIT

hyd cylinder service 5" Monarch 1 3/4" rod

1шт.

Includes Refs. 10, 11, 13, 14, 15 and 40

1шт.

100

1019844

FITTING

steel restrictor 1/2" MJ 1/2" FJ .09" orifice

1шт.

100

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

100

350401A1

DECAL

warning restrictors

1шт.

100

1015478

DECAL

warning do not operate

1шт.

100

6-70060

INSTRUCTION

hydraulic wing lift cylinder kit

1шт.

Not Shown

1шт.
