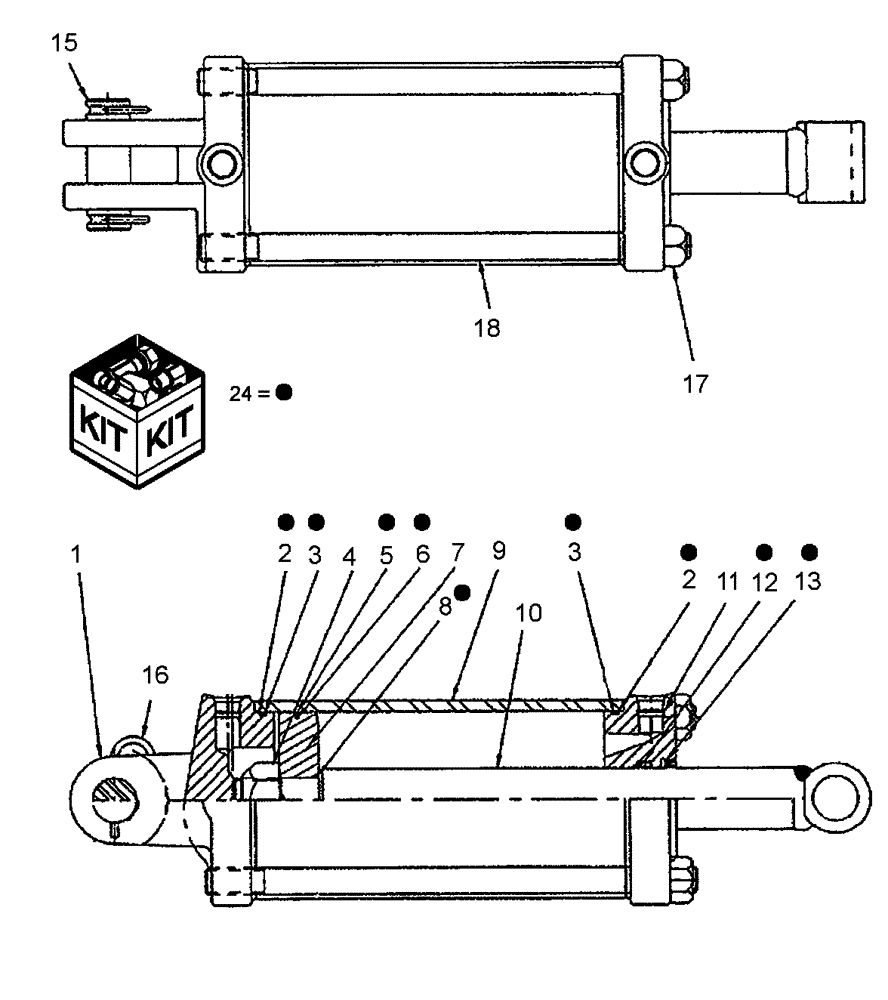

Запчасти Case IH ATX (08-48) - HYDRAULIC WING LIFT CYLINDER, 5 INCH BORE X 30 INCH STROKE, 350721A1 AND1028469 (08) - HYDRAULICS

0

350721A1

HYDRAULIC CYLINDER

kit 5" x 30" Iowa, Years: -31-OCT-02, Serial Range: -CBJ0008107

1шт.

Includes 1028469, 1019844, 218-5106, 350401A1, 1015478 and 6-70060

1шт.

1

1994590C1

HEAD

cylinder clevis cap 5" Iowa

1шт.

2

NSS

NOT SOLD SEPARAT

BACKUP -

2шт.

Included in seal kit 85125C1

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING -

2шт.

Included in seal kit 85125C1

1шт.

4

NSS

NOT SOLD SEPARAT

LOCKNUT -

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - PISTON

1шт.

Included in seal kit 85125C1

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING -

1шт.

Included in seal kit 85125C1

1шт.

7

1286382C2

PISTON

cylinder 5" bore Iowa

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING -

1шт.

Included in seal kit 85125C1

1шт.

9

NSS

NOT SOLD SEPARAT

TUBE - CYLINDER

1шт.

10

1030412

SHAFT

cylinder 4" x30" Iowa

1шт.

11

1286380C1

HEAD

rod 5" Iowa

1шт.

12

NSS

NOT SOLD SEPARAT

U-CUP -

1шт.

Included in seal kit 85125C1

1шт.

13

NSS

NOT SOLD SEPARAT

WIPER -

1шт.

Included in seal kit 85125C1

1шт.

15

1030839

PIN

cylinder 1-1/4" OD x 3" UL

1шт.

16

1030840

RETAINER

HAIRPIN CYLINDER PIN KEEPER

1шт.

17

280954

NUT,3/4"-10, G5

4шт.

18

NSS

NOT SOLD SEPARAT

ROD - TIE

4шт.

19

1019844

FITTING

steel restrictor 1/2" MJ 1/2" FJ .09" orifice

1шт.

Not Shown

1шт.

20

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

Not Shown

1шт.

21

350401A1

DECAL

warning restrictors

1шт.

Not Shown

1шт.

22

1015478

DECAL

warning do not operate

1шт.

Not Shown

1шт.

23

6-70060

INSTRUCTION

hydraulic wing lift cylinder kit

1шт.

Not Shown

1шт.

24

85125C1

SEAL KIT

SEAL

1шт.
